IBA Dosimetry
Accu-Gold - Chambers CT
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - Beam QA
The 10X6-0.6 is a Modern Wide Beam Multi-Slice CT Chamber and the 10X6-3CT is a Computed Tomography Dose Index (CTDI) and DWP or DLP Chamber.
- 10X6-3CT

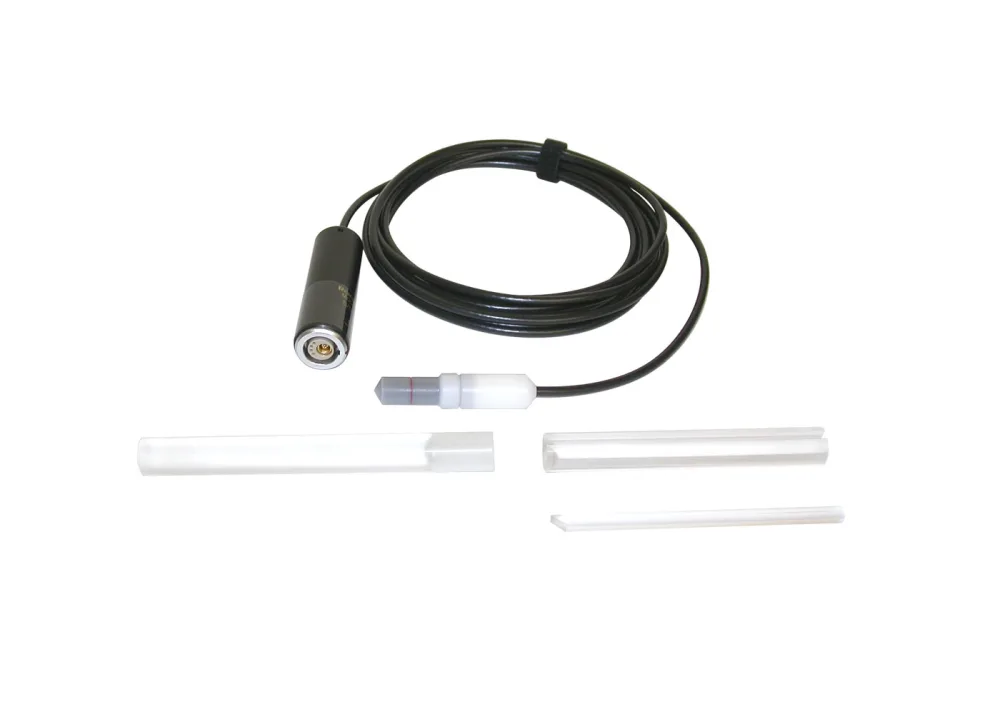

- 10X6-3CT The 10X6-3CT is a Computed Tomography Dose Index (CTDI)and DWP or DLP Chamber. Although designed specifically for CT X-ray beam measurements, either free-in-air or mounted in a head or body phantom, it can be used for DWP and DLP applications such as Dental x-ray measurements, due to the chambers excellent energy and partial volume response as well as uniformity along its entire 10 cm active length.
- Brochure
- /fileadmin/user_upload/products/04_medical_imaging/Accu-Gold_Chambers/Specification/radcal-10x6-chamber-spec-sheet.pdf
- 10X6-0.6CT

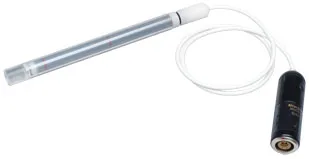

- 10X6-0.6CT The 10X6-0.6CT is a Modern Wide Beam Multi-Slice CT Chamber. 0.6cc thimble chamber as described in the AAPM Report No. 111 “Comprehensive Methodology for the Evaluation of Radiation Dose in X-ray Computed Tomography.” Ideal for dose measurements in modern wide beam multi-slice CT. Calibrated using X-rays @ 150 kVp, Phantom adapter included.
- Also listed under
- Radiation Therapy
- Used for Workflow
- Beam QA, Imaging QA RT
- Compatible with Machine/Modality/Application
- Computed Tomography
