IBA Dosimetry

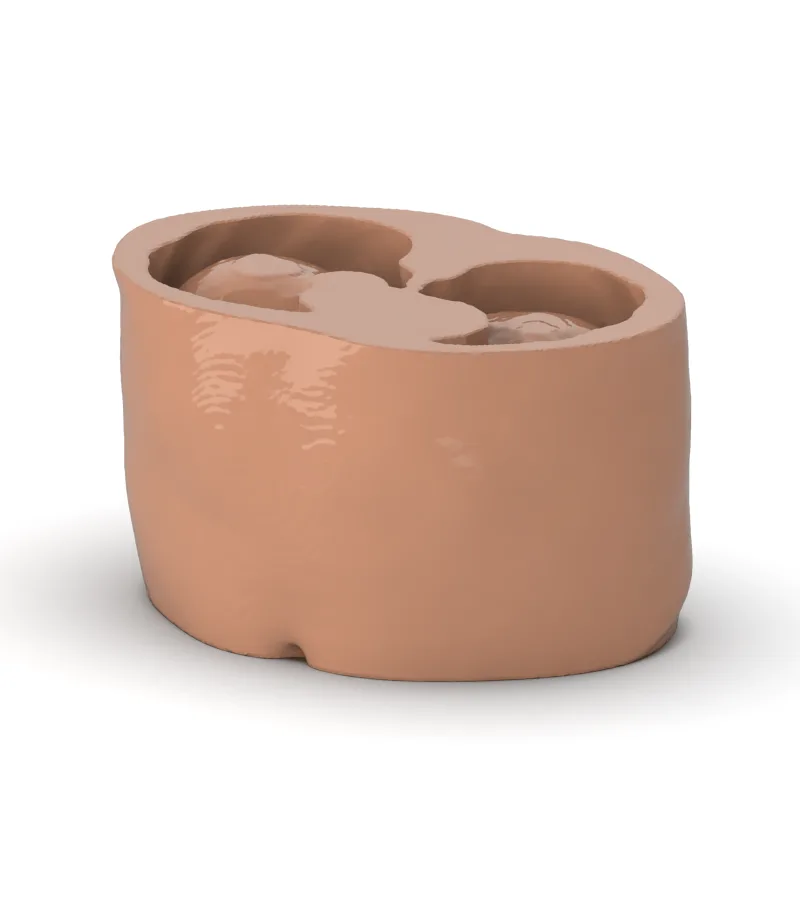

PhantomX Abdomen Phantom
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI
Low-contrast spheres
Featuring 42 spherical liver lesions with different diameters and contrast levels, this phantom supports comprehensive assessment of lesion detectability, imaging performance, and advanced processing applications in CT and CBCT.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Abdomen/Abdomen_Phantom_Low-contrast_spheres/PX0203542.pdf
- Specifications
- Specifications Size: Approx. 268 x 189 x 150 mm Weight: Approx. 4950 g Base material: Cellulose-polymer composite Optimal tube voltage: 120 kVp – adaptable upon request –
- Used for Workflow
- Abdomen
- Diagnostic features
- Diagnostic features Realistic simulation of vasculature, bone and soft tissues, including the liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine and colon. 42 spherical liver lesions in 7 sections. Lesion diameter: 8 mm and 12 mm Lesions contrasts: 10, 20, 30 and 40 HU at 120 kVp Section 1: 4 lesions Section 2: 15 lesions Section 3: 9 lesions Section 4: 6 lesions Section 5: 3 lesions Section 6: 3 lesions Section 7: 2 lesions
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 415 x 280 x 190 mm - Dimensions (packaged)*: 465 x 355 x 210 mm - Total weight (ready to ship): 11.0 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.
- Abdomen Phantom Low-contrast spheres

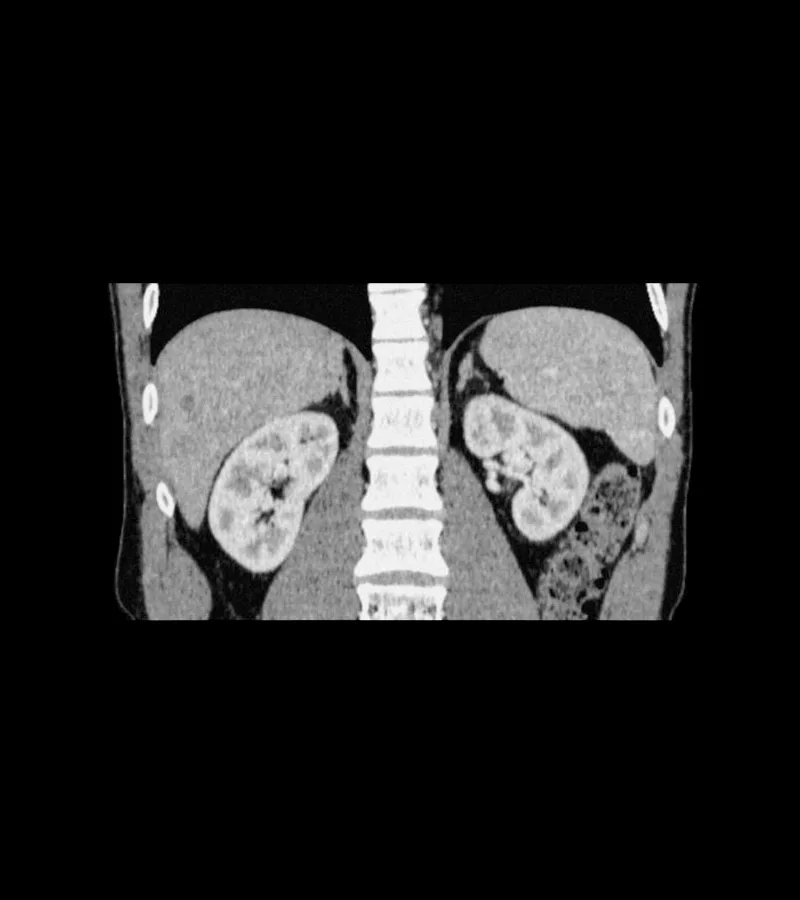

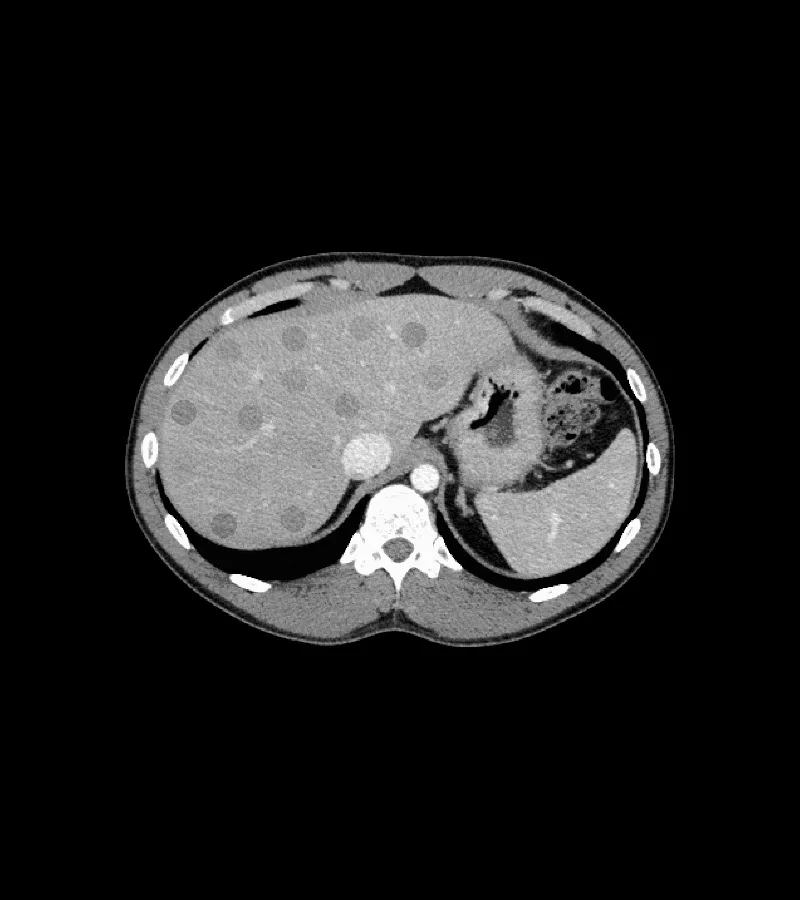

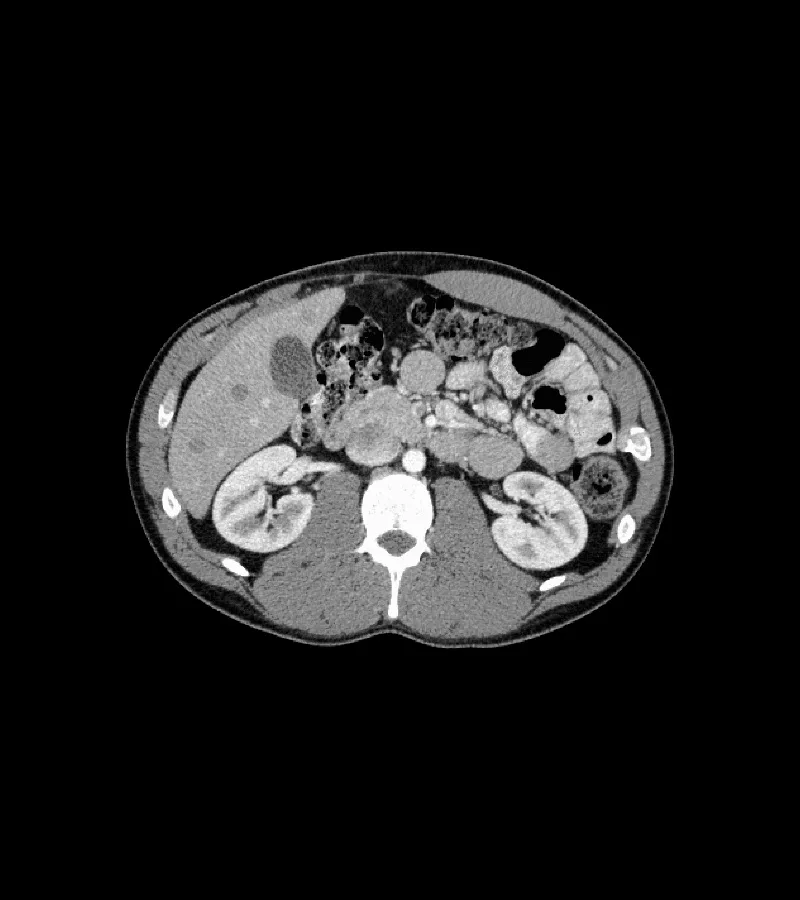

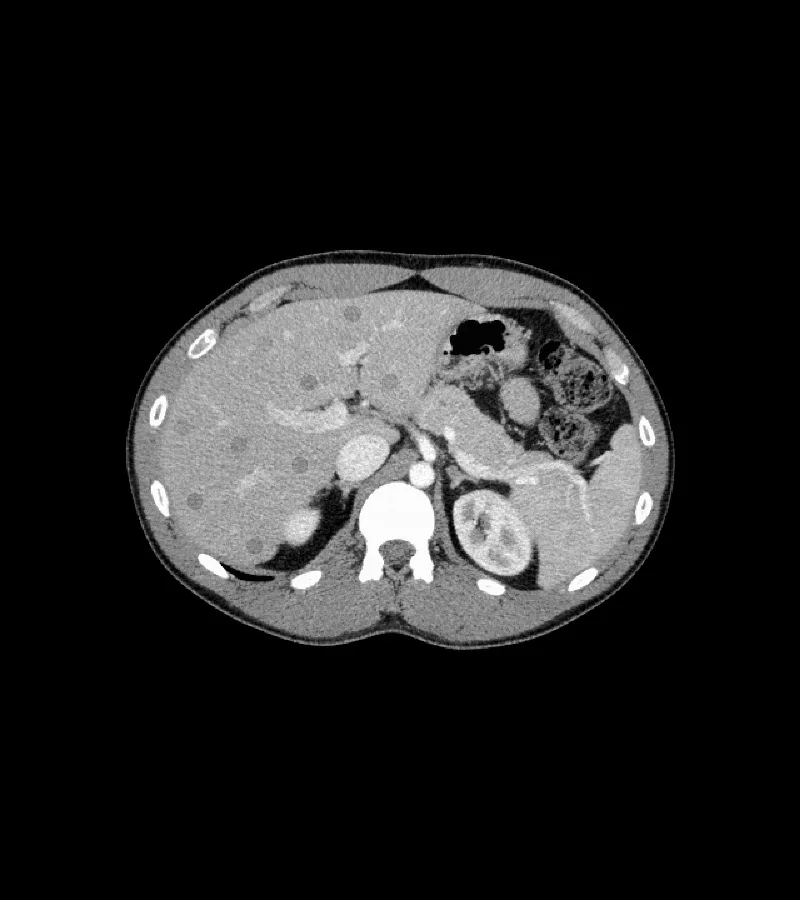

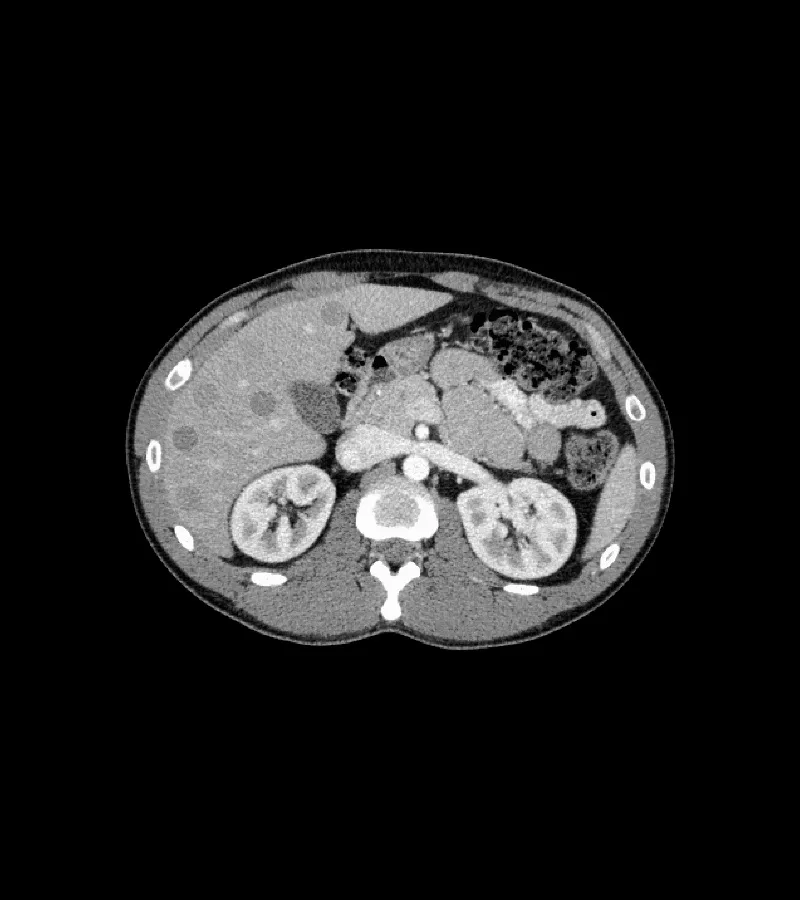

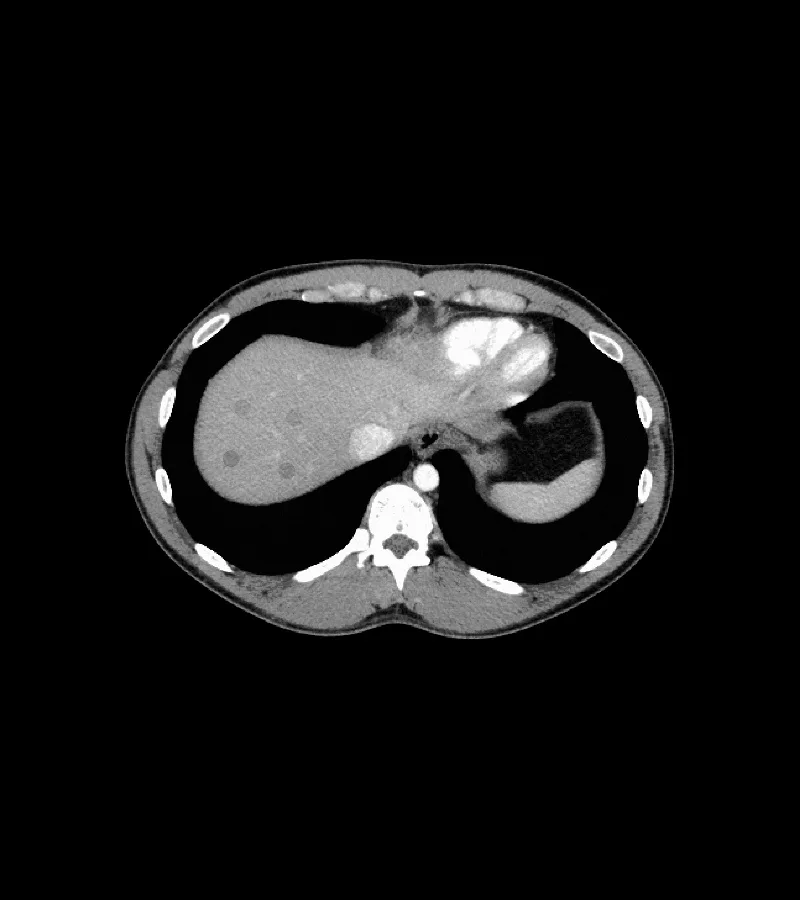

- This phantom simulates a contrast medium enhanced abdomen in portal venous phase. It covers the eleventh thoracic vertebra to the fourth lumbar vertebra (partially included). The phantom has 42 spherical liver lesions with 8 and 12 mm diameter and lesion contrasts of 10, 20, 30 and 40 HU to the surrounding liver. The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.
- Compatible with Machine/Modality/Application
- CT Simulation
