MagicMaX Universal
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - Beam QA

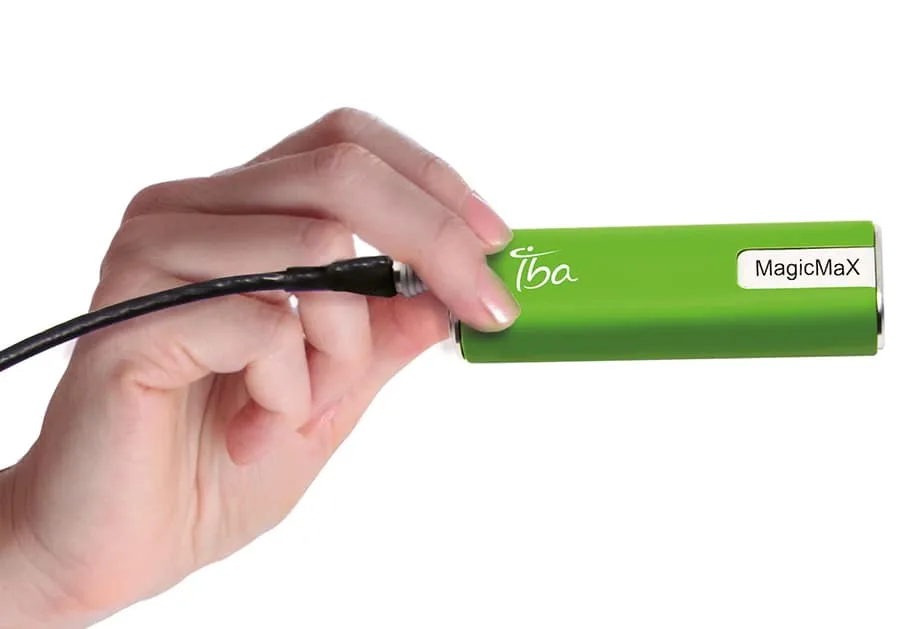

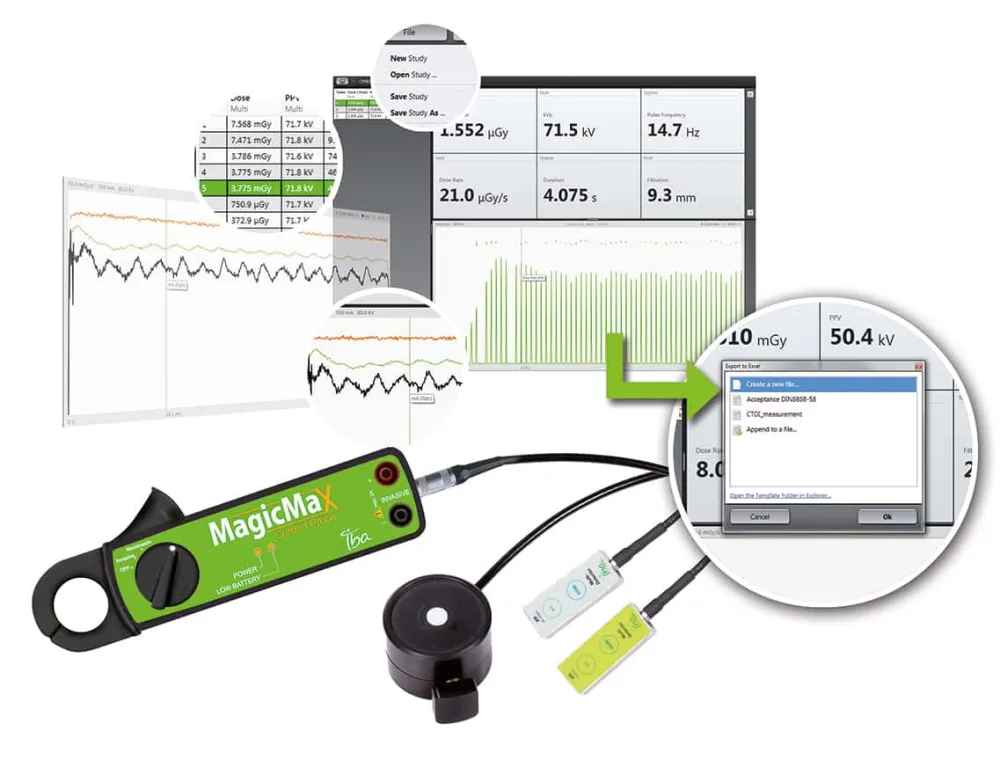

Solution for all needs in beam verification, including advanced MagicMaX Software for fast and complete dose measurement overview.
- Details

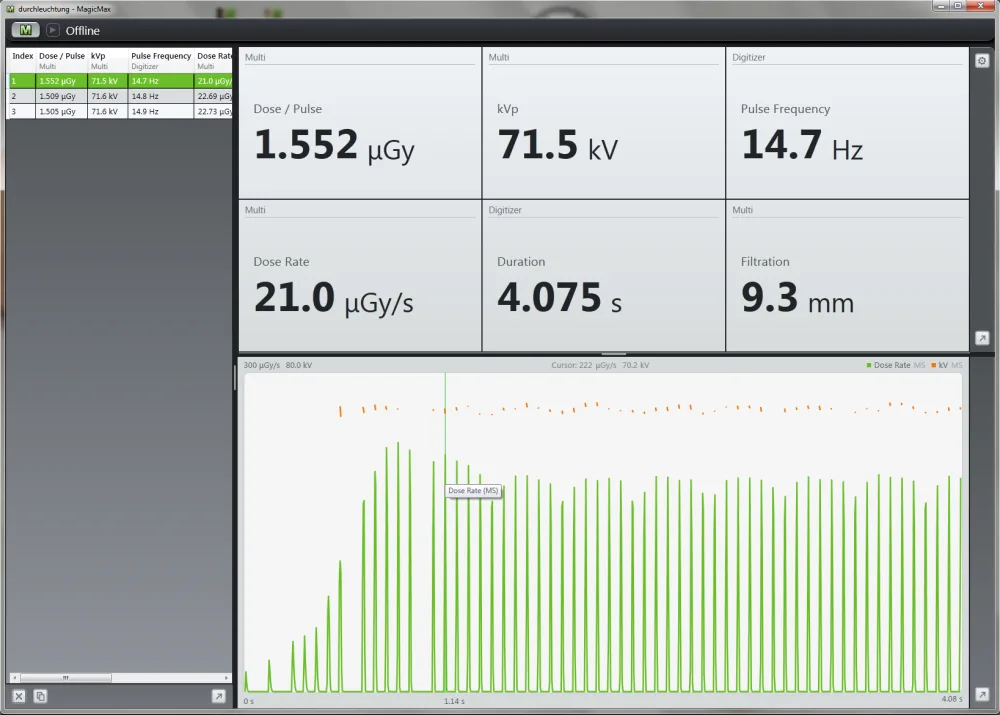

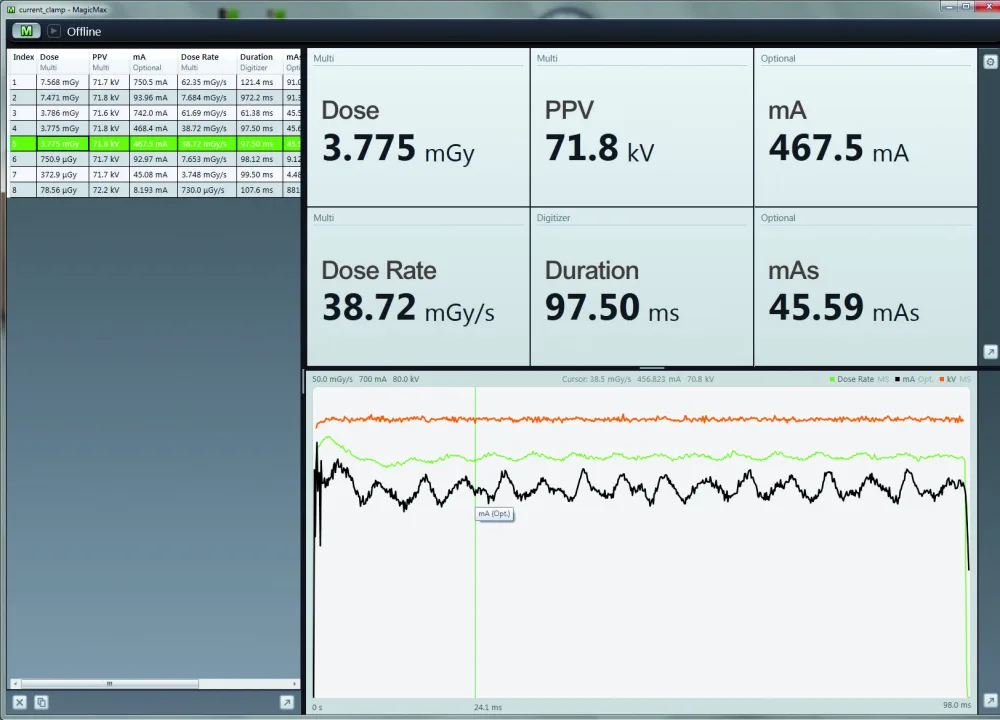

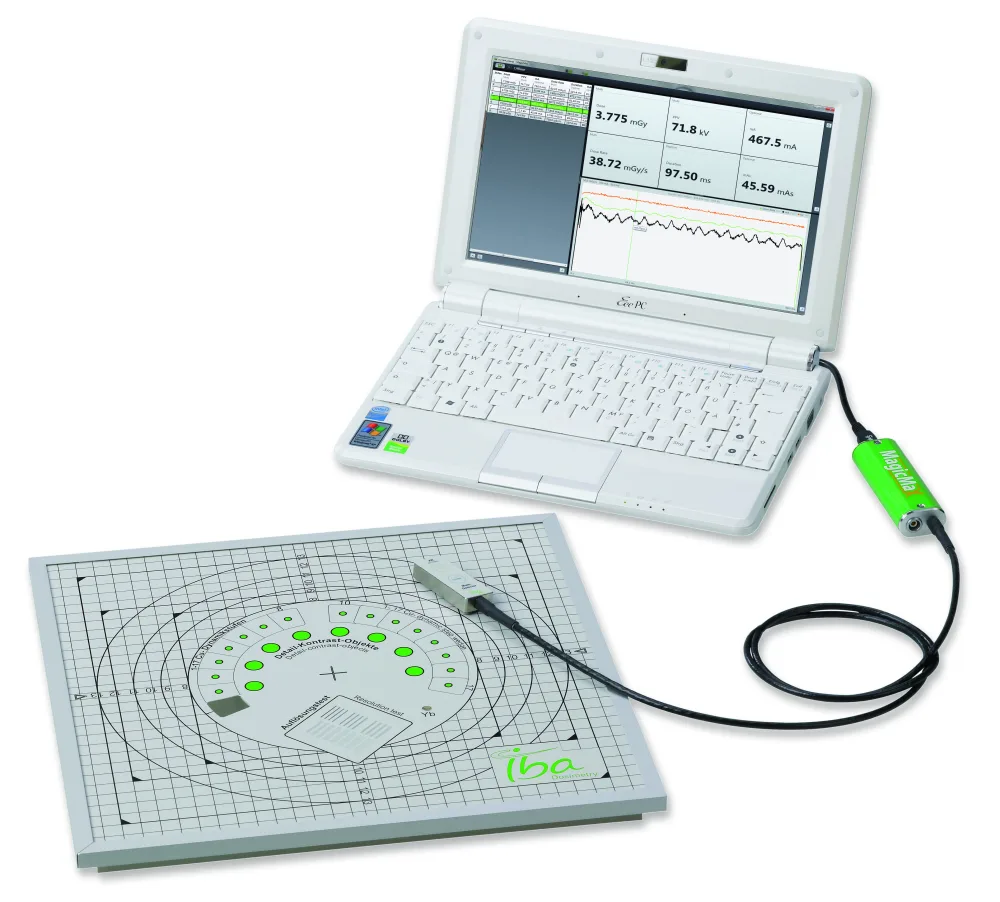

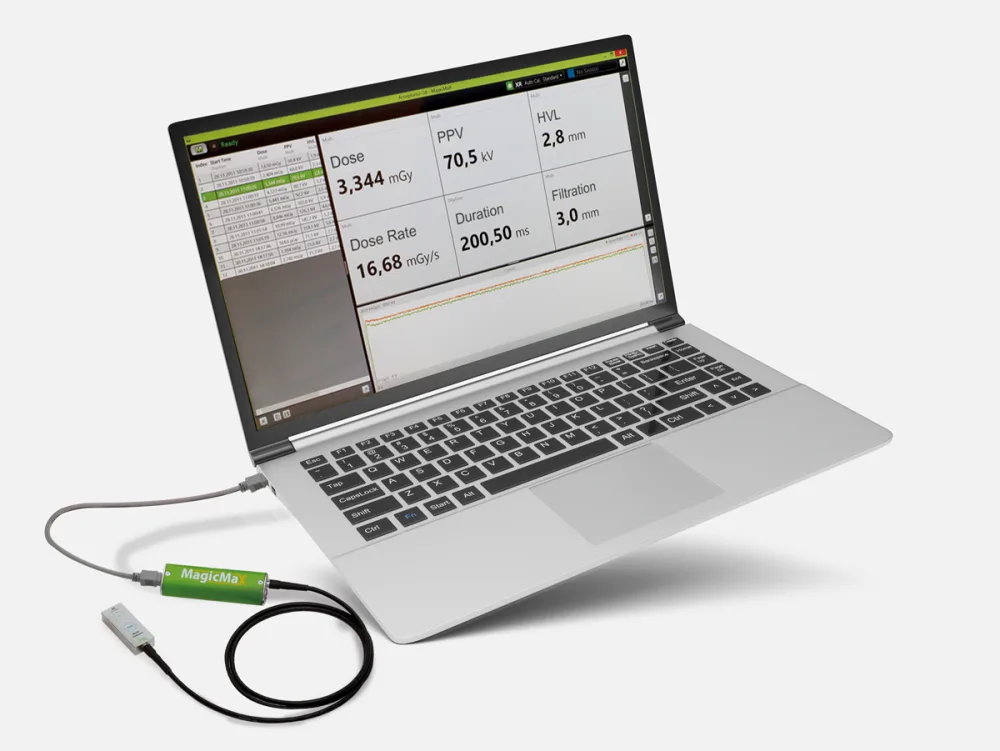

- Plug and play, 1 minute fast setup Beam & image verification in one x-ray: micro footprint detector for unobstructed test plate Radiography / Fluoro / Mammo / CT Fast total overview as well as comprehensive expert level detail and reporting
- Brochure
- /fileadmin/user_upload/products/04_medical_imaging/MagicMaX_Universal/Brochure_MagicMaX-Universal-Rev2_0224_E.pdf
- Multi-Detector XM

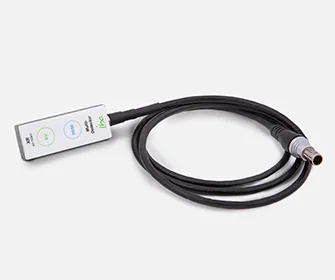

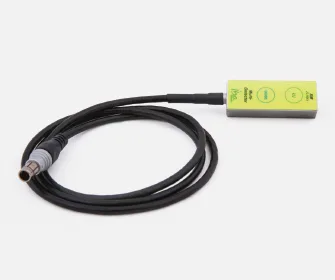

- Multi-Detector XM Multi-Detector is to be used with the MagicMaX Universal in kV a range of 21 - 49 kV and for following Target-Filter Combinations: Mo/Mo, Mo/Rh, Rh/Rh, W/Rh, W/Ag. The small footprint detector has 2 marked active areas, one for dose, dose rate, dose/puls and time and the other one for kVp, PPV, Half Value Layer, and total filtration.
- Multi-Detector XR
- Multi-Detector XR Multi-Detector is used with the MagicMaX Universal for 40 - 150 kV radiography and fluoroscopy. The small footprint detector has 2 marked active areas: one for dose, dose rate, dose/ puls and time and the other one for kVp, PPV, Half Value Layer, and total filtration.
- Used for Workflow
- Beam QA
- Connection and Weight

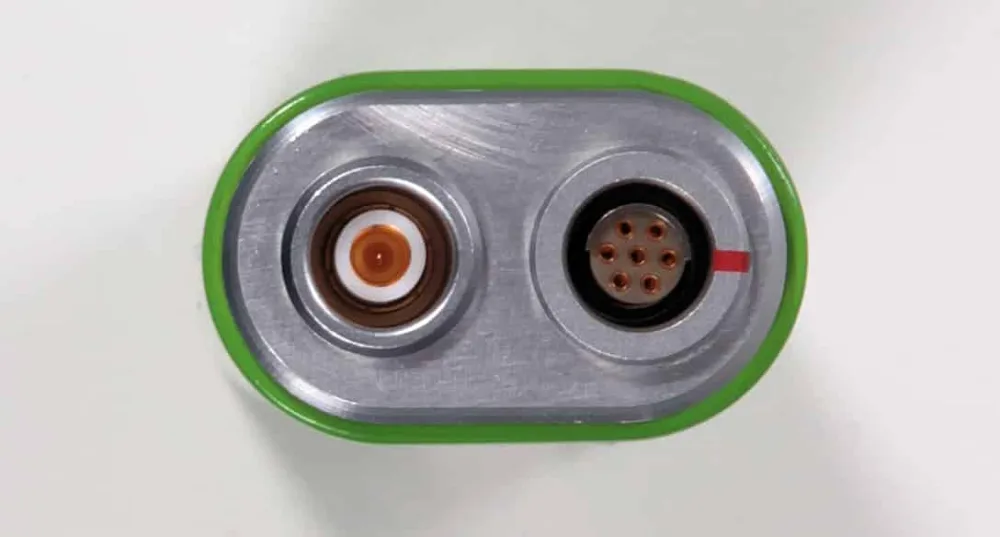

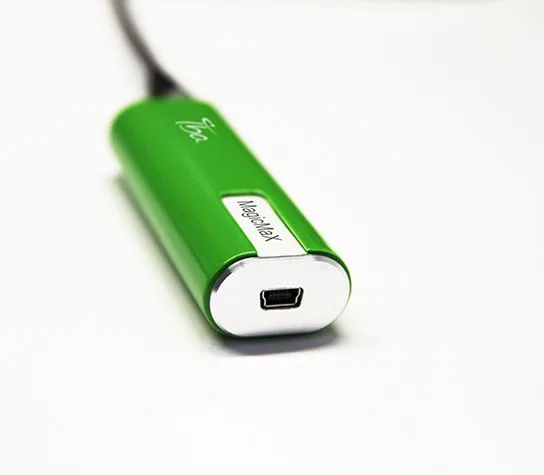

- External Input Connector: LEMO triaxial male (NIM-CAMAC), 7-pin Multiconnector Interface: USB 2.0 Max. data rate: 12 Mbit/s Max. USB load: 2 Unit Loads (200mA) USB connector type: USB Mini-B USB cable type: USB 2.0 compliant (tdelay < 5.2 ns/m) Power Supply: USB powered Size: 100 mm x 30 mm x 20 mm (3.9” x 1.2” x 0.8”) Weight: 75g (0.17 lbs)
- MagicMaX Current Probe

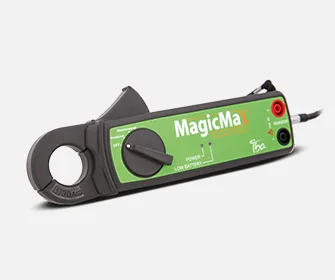

- MagicMaX Current Probe For invasive and non-invasive measurements of the tube current, using MagicMaX Universal Multimeter. - Altitude: ≤ 2000 m (6561 ft) - Battery Type: 2x 1.5 V (AA) Conductor - Size: 23 mm (0.9”) - Dimensions (L x W x H): 183 mm x 61.3 mm x 35.6 mm; 7.2” x 2.4” x 1.4” - Low Battery Indicator: LED, red Maximum Current: 2 A - Measurement Range: 10 mA to 2 A; 0.1 mAs – 1000 As - Operating Humidity: < 85% (rh without condensation) - Operating Temperature: +15°C – 35°C - Storage Humidity: < 75% (rh without condensation) - Storage Temperature: -20°C – 60°C Weight: 190 g / 0.41 lbs
- 10XF-3CT – Ionization Chamber

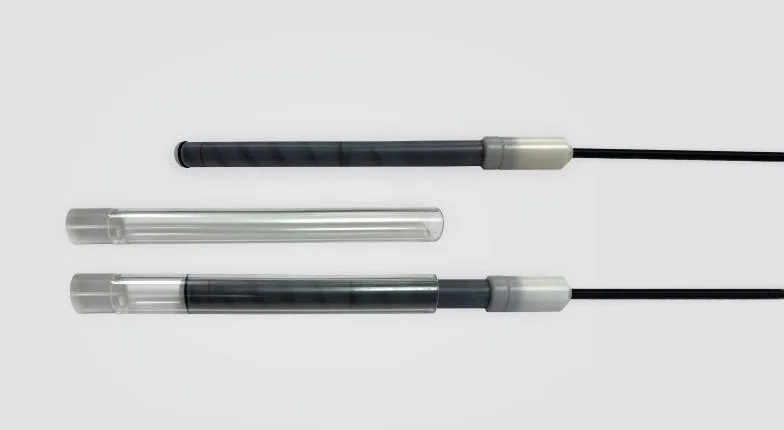

- 10XF-3CT – Ionization Chamber Ionization chamber for CT dose length product and dose measurements, as well as calculation of CTDIw/CTDIvol – optionally with declaration of conformity Learn more here
- MagicMaX Illuminance Detector MM-LS

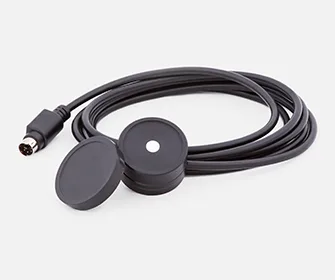

- MagicMaX Illuminance Detector MM-LS - Measures the ambient light of image display devices and at viewing boxes. - For measurements of illuminance in lux in the range of 0.1-10,000 lx.
- Compatible with Machine/Modality/Application
- Computed Tomography, Dental, Mammography, Radiography and Fluoroscopy, Cyclotrons, Synchro-Cyclotron

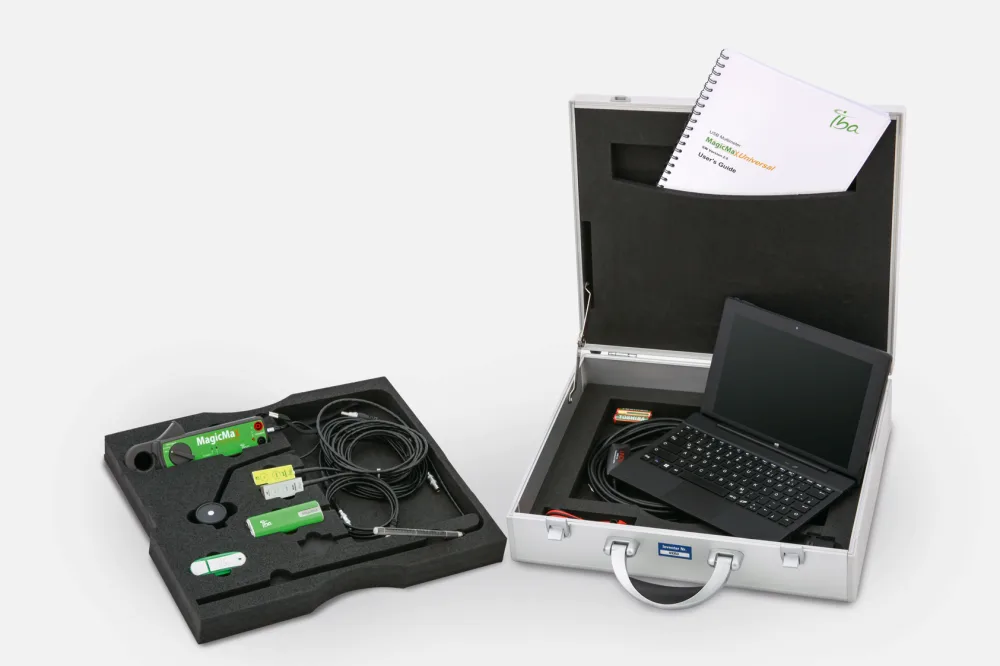

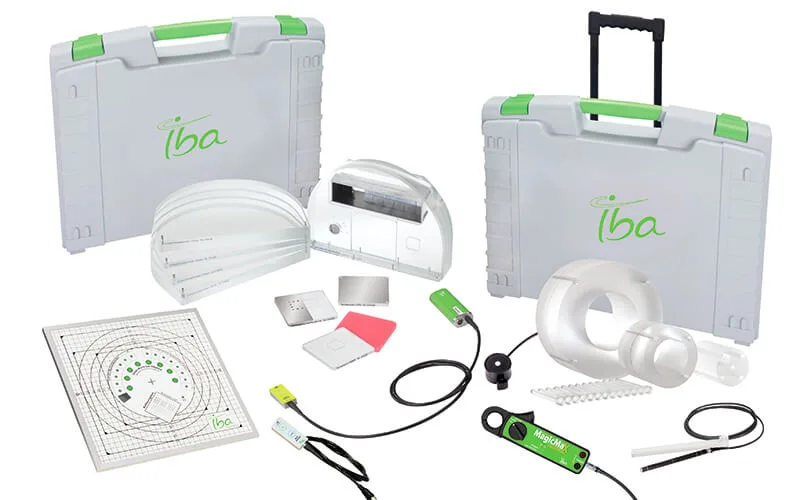

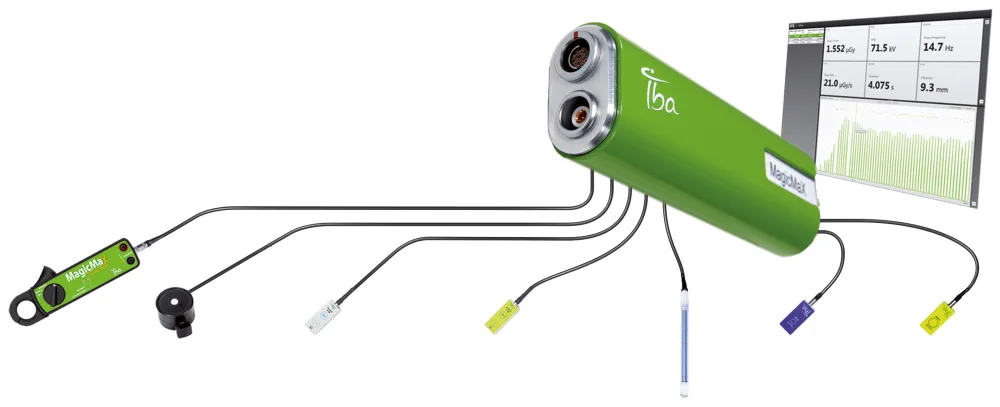

- 1 MagicMaX Current Probe (mAs Probe) For measurements of the tube current with unique combination of invasive and non-invasive and comprehensive analysis with MagicMaX software. 2 Illuminance Detector MM-LS Light output measurements of image intensifiers and viewing boxes. 3 Multi Detector XR For quality checks and acceptance tests at Radiography, Fluoroscopy & Dental Radiography. (Parameters: Dose / dose rate, Dose per pulse, kVp / PPV, Time, Total filtration, Half Value Layer (HVL), Waveform) 4 Multi Detector XM For quality checks and acceptance tests at Mammography. (Parameters: Dose / dose rate, Dose per pulse, kVp / PPV, Time, Total filtration, Half value layer (HVL), Waveform) 5 10X-3CT Ionization Chamber Ionization chamber for CT applications for determination of dose length product (DLP), dose and calculation of the CTDIw/ CTDIvol 6 Solid State Detector RQA For quality checks at radiographic, fluoroscopic and dental X-ray units, 50 - 150 kV. 7 Solid State Detector RQM For quality checks in mammography, 25 - 35 kV. 8 Dual Connector Connect a second dose detector to the MagicMaX Universal to simultaneously measure entrance and exit doses.Flexibly exchange detectors to have full freedom to setup your MagicMaX Universal to your changing test needs. 9 MagicMaX Universal USB powered system to be used with PC/Laptop. 10 MagicMaX Software Clear & structured design gives you a fast total overview as well as a comprehensive expert level detailed view. The various options of Excel^® exporting grants fast and easy reporting. 11 Comprehensive Analysis Simultaneous measurements and display of kVp, PPV, time, dose, dose rate, filtration and more...Scope type waveforms / real waveform supported Microsoft Excel export With the embedded Excel export, the user can fulfill regulatory needs as well as execute in-depth performance analyses by using the predefined templates or by easily creating customized measurement procedures. Detectors and accessories for MagicMaX MagicMaX Current Probe MagicMaX Current Probe For invasive and non-invasive measurements of the tube current, using MagicMaX Universal Multimeter.Altitude: ≤ 2000 m (6561 ft)Battery Type: 2x 1.5 V (AA) ConductorSize: 23 mm (0.9”)Dimensions (L x W x H): 183 mm x 61.3 mm x 35.6 mm; 7.2” x 2.4” x 1.4”Low Battery Indicator: LED, red Maximum Current: 2 AMeasurement Range: 10 mA to 2 A; 0.1 mAs – 1000 AsOperating Humidity: Operating Temperature: +15°C – 35°CStorage Humidity: Storage Temperature: -20°C – 60°C Weight: 190 g / 0.41 lbs MagicMaX Illuminance Detector MM-LS MagicMaX Illuminance Detector MM-LS For ambient light measurements of image display devices and at viewing boxesMeasures the ambient light of image display devices and at viewing boxes.For measurements of illuminance in lux in the range of 0.1-10,000 lx. Multi-Detector XR Multi-Detector XR Multi-Detector is used with the MagicMaX Universal for 40 - 150 kV radiography and fluoroscopy. The small footprint detector has 2 marked active areas: one for dose, dose rate, dose/ puls and time and the other one for kVp, PPV, Half Value Layer, and total filtration. Multi-Detector XM Multi-Detector XM Multi-Detector is to be used with the MagicMaX Universal in kV a range of 21 - 49 kV and for following Target-Filter Combinations: Mo/Mo, Mo/Rh, Rh/Rh, W/Rh, W/Ag. The small footprint detector has 2 marked active areas, one for dose, dose rate, dose/puls and time and the other one for kVp, PPV, Half Value Layer, and total filtration. 10XF-3CT – Ionization Chamber 10XF-3CT – Ionization Chamber Ionization chamber for CT dose length product and dose measurements, as well as calculation of CTDIw/CTDIvol – optionally with declaration of conformity Learn more here MagicMaX Current Probe For invasive and non-invasive measurements of the tube current, using MagicMaX Universal Multimeter.Altitude: ≤ 2000 m (6561 ft)Battery Type: 2x 1.5 V (AA) ConductorSize: 23 mm (0.9”)Dimensions (L x W x H): 183 mm x 61.3 mm x 35.6 mm; 7.2” x 2.4” x 1.4”Low Battery Indicator: LED, red Maximum Current: 2 AMeasurement Range: 10 mA to 2 A; 0.1 mAs – 1000 AsOperating Humidity: Operating Temperature: +15°C – 35°CStorage Humidity: Storage Temperature: -20°C – 60°C Weight: 190 g / 0.41 lbs MagicMaX Illuminance Detector MM-LS For ambient light measurements of image display devices and at viewing boxesMeasures the ambient light of image display devices and at viewing boxes.For measurements of illuminance in lux in the range of 0.1-10,000 lx. Multi-Detector XR Multi-Detector is used with the MagicMaX Universal for 40 - 150 kV radiography and fluoroscopy. The small footprint detector has 2 marked active areas: one for dose, dose rate, dose/ puls and time and the other one for kVp, PPV, Half Value Layer, and total filtration. Multi-Detector XM Multi-Detector is to be used with the MagicMaX Universal in kV a range of 21 - 49 kV and for following Target-Filter Combinations: Mo/Mo, Mo/Rh, Rh/Rh, W/Rh, W/Ag. The small footprint detector has 2 marked active areas, one for dose, dose rate, dose/puls and time and the other one for kVp, PPV, Half Value Layer, and total filtration. 10XF-3CT – Ionization Chamber Ionization chamber for CT dose length product and dose measurements, as well as calculation of CTDIw/CTDIvol – optionally with declaration of conformity Learn more here Technical specifications Technical Range and Max Leakage Current
- Leakage Current: ≤ 0.1 pA Max. Input Current: ≤ -3 μA Recording time resolution: 0.1 ms Max. recording time: 300 s
