IBA Dosimetry

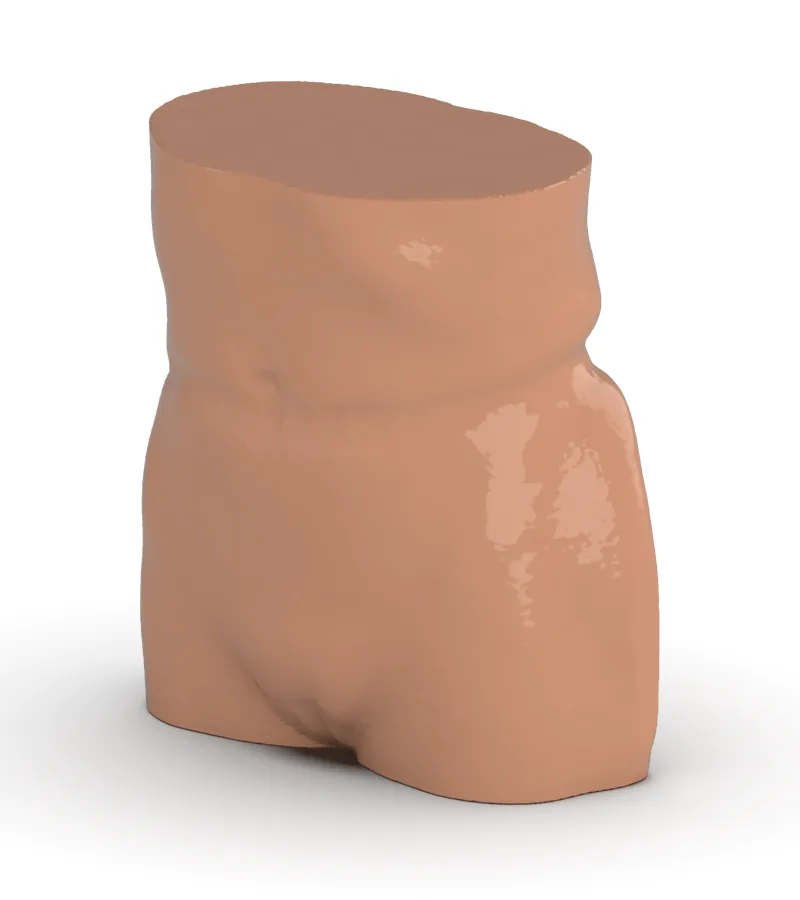

PhantomX Abdomen / Pelvis Phantom
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI
Native
Detailed and realistic simulation of soft and bone tissue with a pancreatic mass and liver lesions for CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Abdomen/Abdomen__Pelvis_Phantom_Native/PX0203445.pdf
- Specifications
- Specifications Size: Approx. 266 x 163 x 284 mm Weight: Approx. 6800 g Base material: Cellulose-polymer composite Optimal tube voltage: 120 kVp – adaptable upon request –
- Used for Workflow
- Abdomen
- Diagnostic features

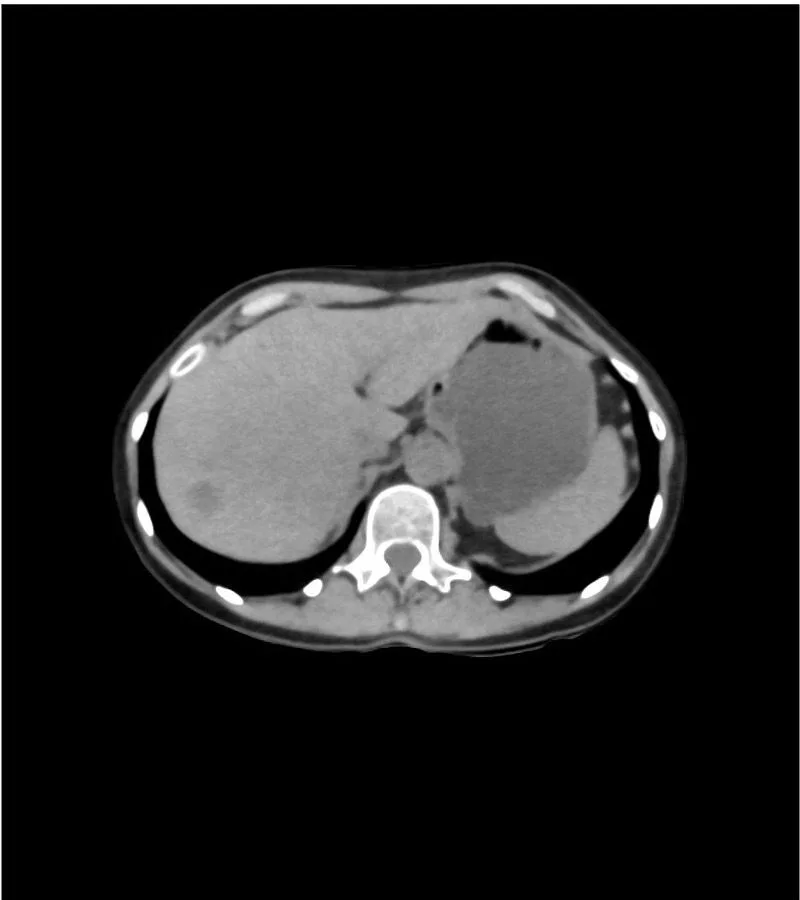

- Diagnostic features Realistic simulation of bone and soft tissues, including the liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine, colon and bladder. Panreatic mass. Liver lesions.
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 520 x 350 x 220 mm - Dimensions (packaged)*: 572 x 425 x 239 mm - Total weight (ready to ship): 14.0 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.
- Abdomen / Pelvis Phantom Native

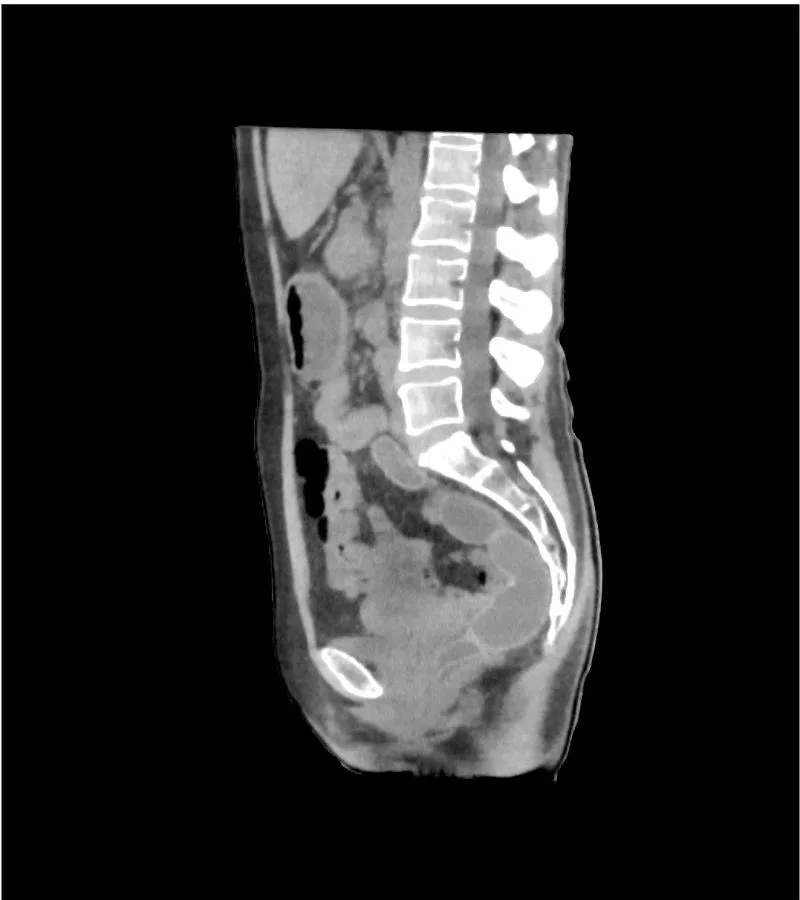

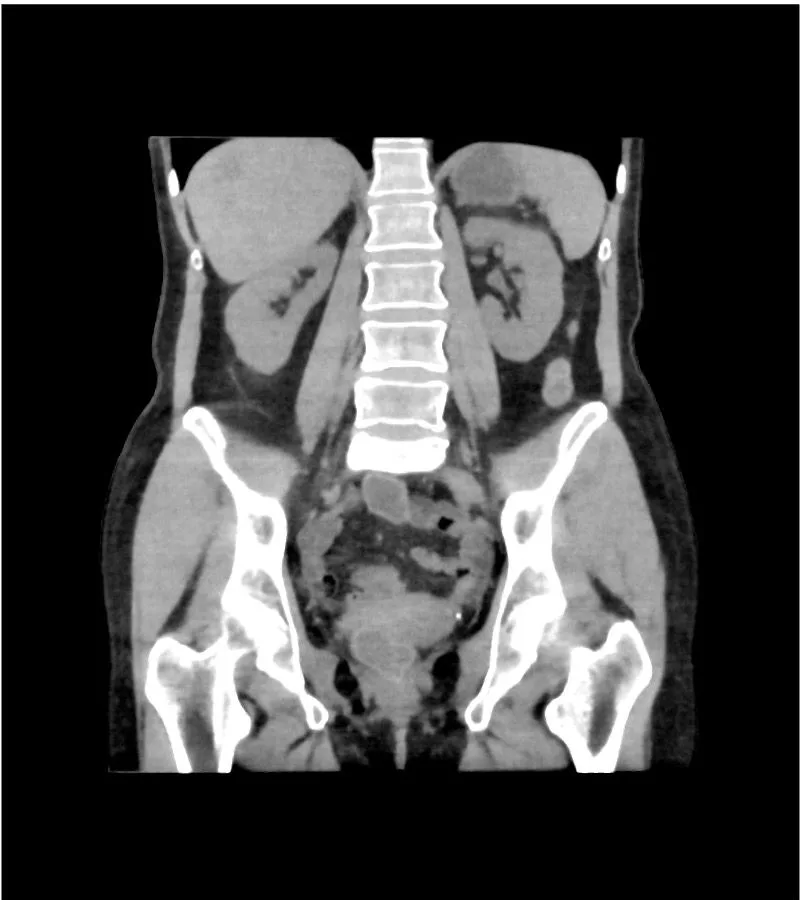

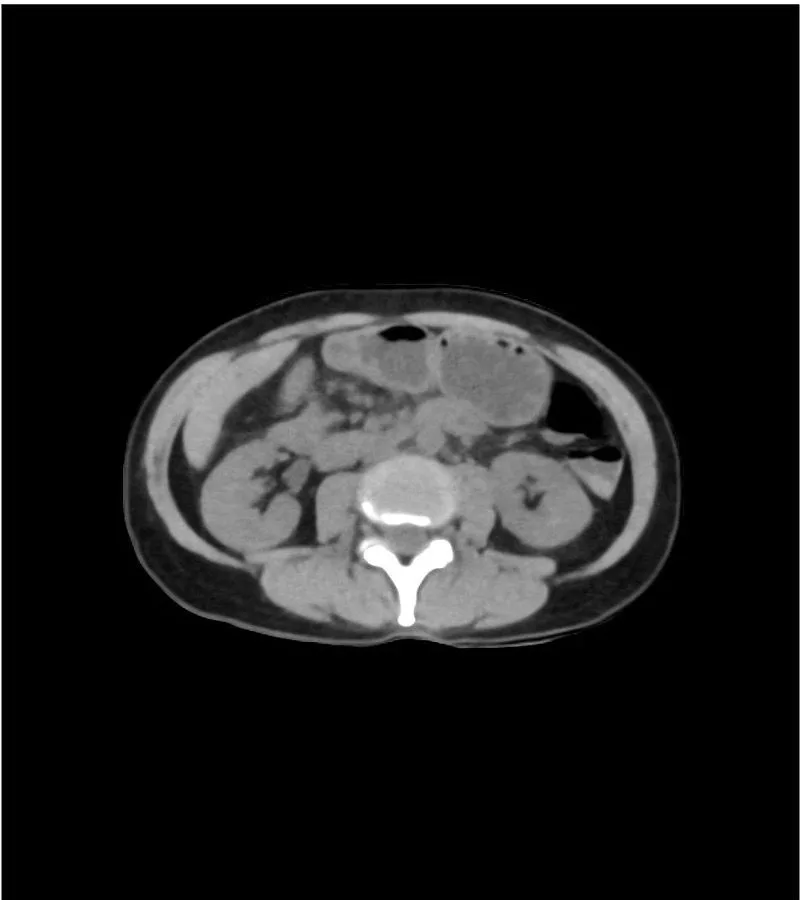

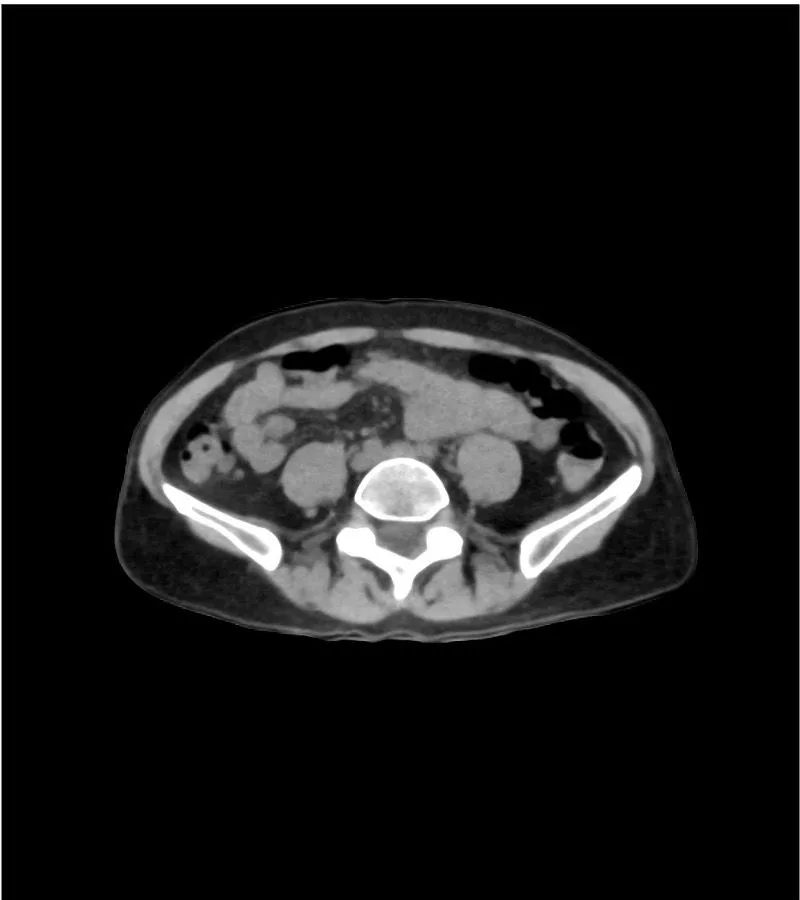

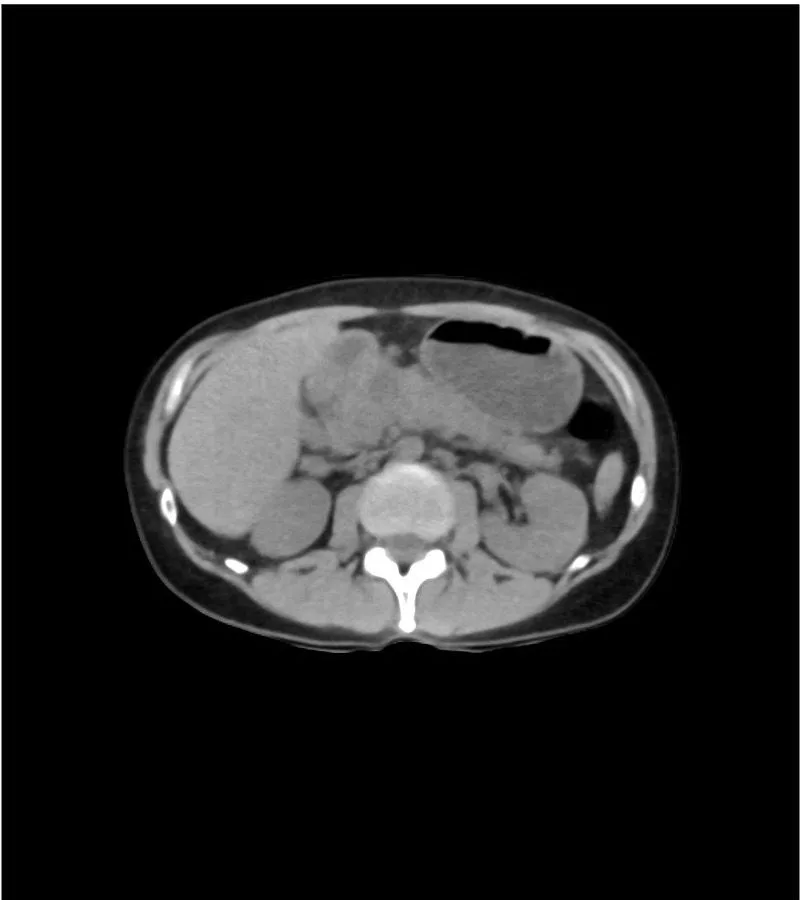

- This phantom simulates an abdomen and pelvis without intravenous contrast (native). It covers the first lumbar vertebra to the perineum. It has a pancreatic mass and liver lesions. The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.
- Compatible with Machine/Modality/Application
- CT Simulation
