IBA Dosimetry
PhantomX Abdomen / Pelvis Phantom
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI
Portal venous phase
Simulating a contrast-enhanced abdomen and pelvis with iliac lymph node masses, this phantom supports comprehensive evaluation of imaging performance, advanced image processing, and AI-assisted applications in CT and CBCT.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Abdomen/Abdomen__Pelvis_Phantom_Portal_venous_phase/PX0203444.pdf
- Specifications
- Specifications Size: Approx. 263 x 186 x 288 mm Weight: Approx. 6990 g Base material: Cellulose-polymer composite Optimal tube voltage: 120 kVp – adaptable upon request –
- Used for Workflow
- Abdomen
- Diagnostic features
- Diagnostic features Realistic simulation of vasculature, bone and soft tissues, including the liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine, colon, bladder and prostate. External iliac lymph node masses on the right side.
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 520 x 350 x 220 mm - Dimensions (packaged)*: 572 x 425 x 239 mm - Total weight (ready to ship): 14.0 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.

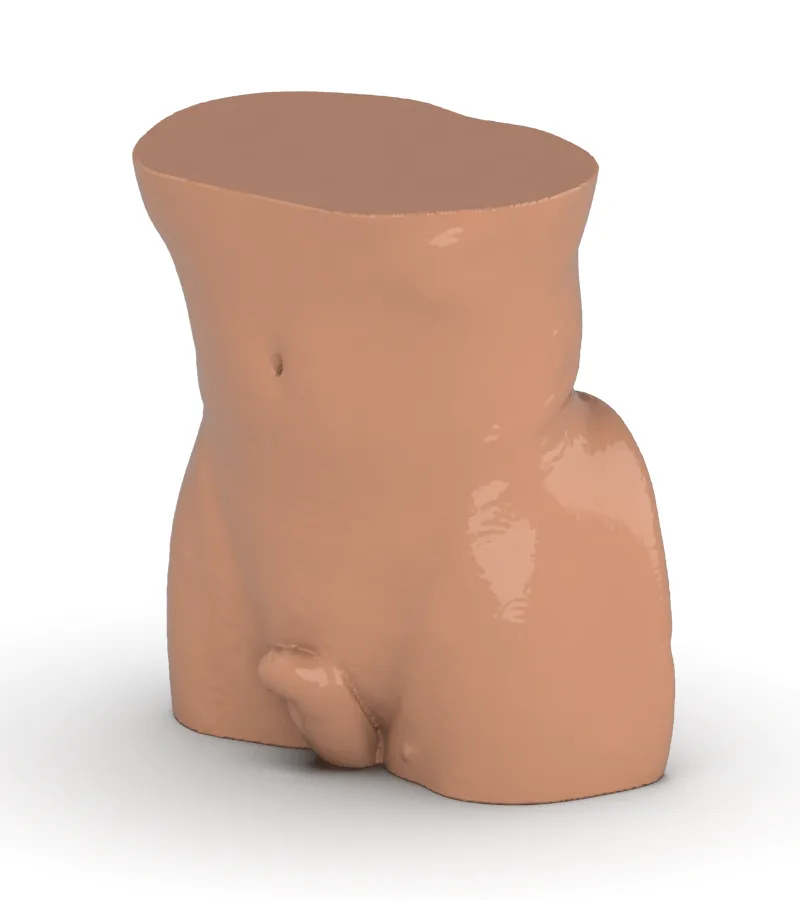

- Abdomen / Pelvis Phantom Portal venous phase
- This phantom simulates a contrast medium enhanced abdomen and pelvis in portal venous phase. It covers the first lumbar vertebra to the perineum. It has iliac lymph node masses on the right side. The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.
- Compatible with Machine/Modality/Application
- CT Simulation
