IBA Dosimetry
PhantomX Abdomen Phantom
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI
Portal venous phase
Detailed and realistic simulation of soft and bone tissue for CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Abdomen/Abdomen_Phantom_Portal_venous_phase/PX0203541.pdf
- Specifications
- Specifications Size: Approx. 268 x 189 x 150 mm Weight: Approx. 4950 g Base material: Cellulose-polymer composite Optimal tube voltage: 120 kVp – adaptable upon request –
- Used for Workflow
- Abdomen
- Diagnostic features
- Diagnostic features Realistic simulation of vasculature, bone and soft tissues, including the liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine and colon.
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 415 x 280 x 190 mm - Dimensions (packaged)*: 465 x 355 x 210 mm - Total weight (ready to ship): 11.0 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.
- Abdomen Phantom Portal venous phase

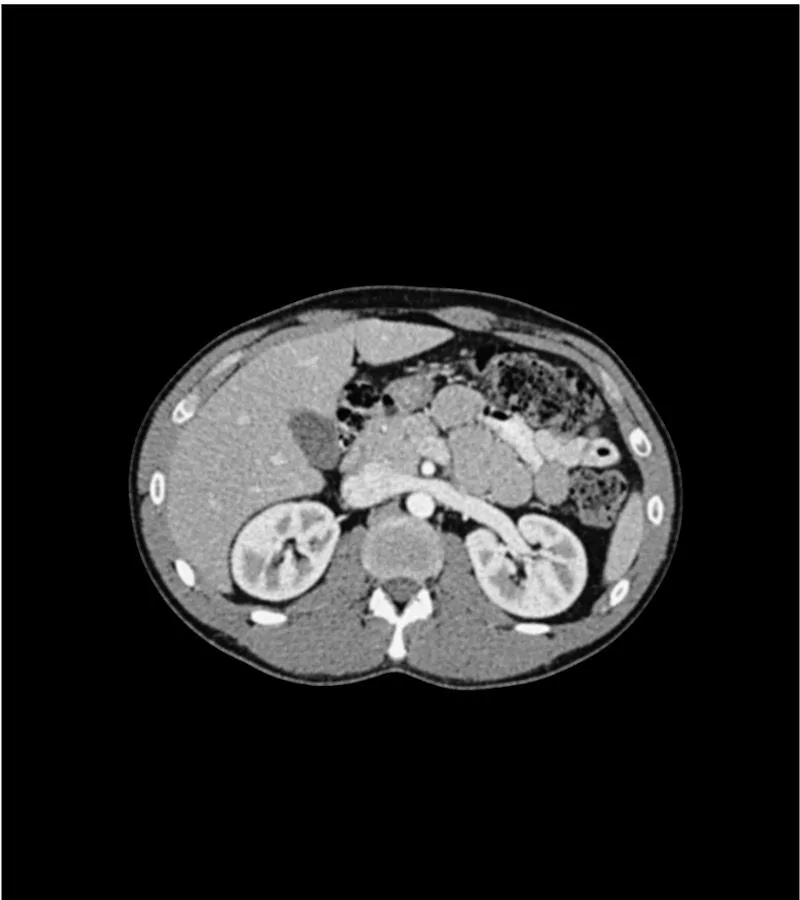

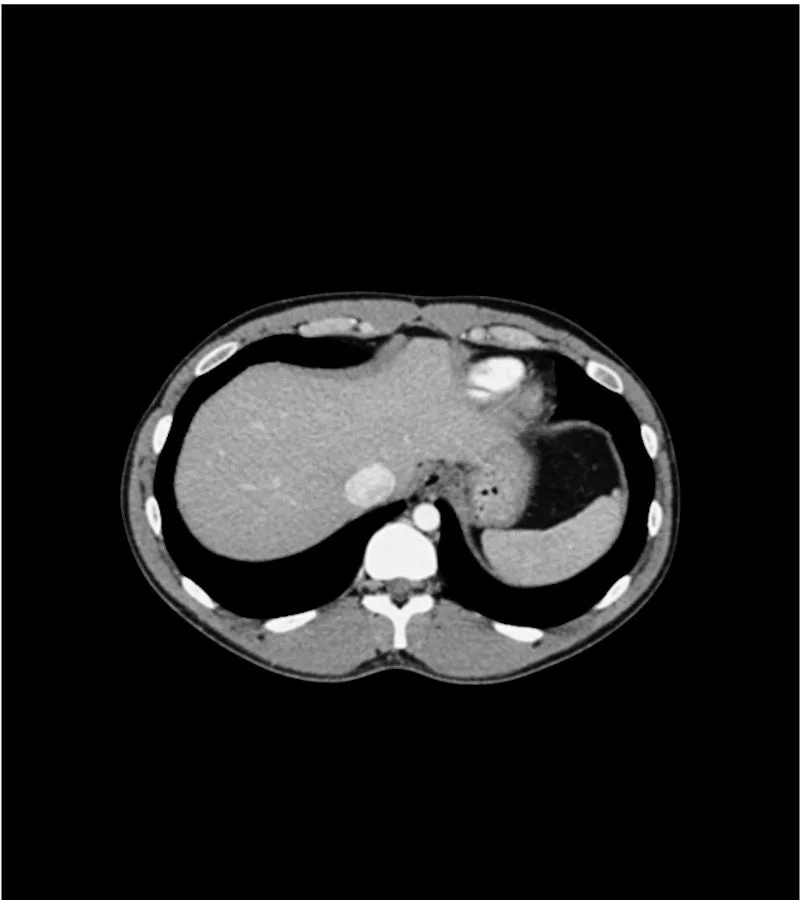

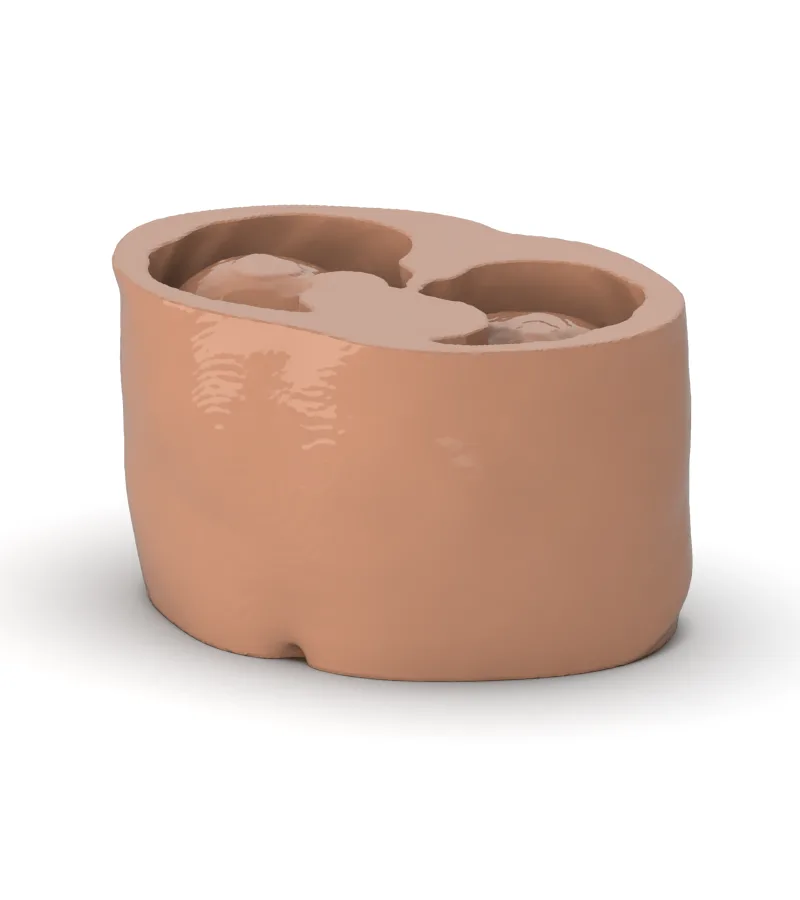

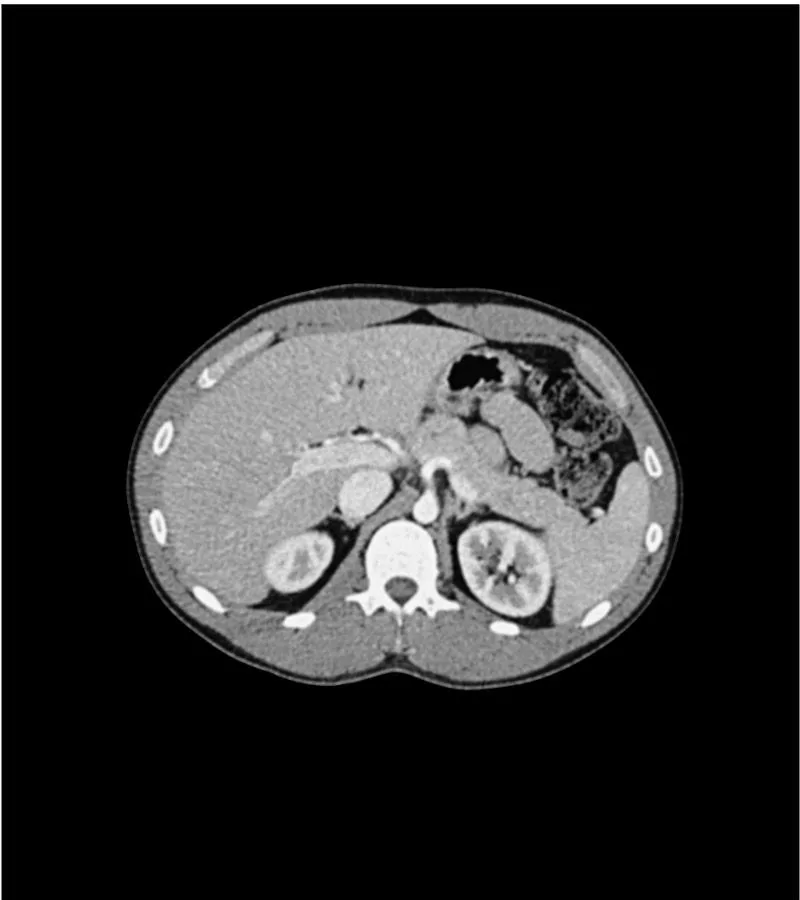

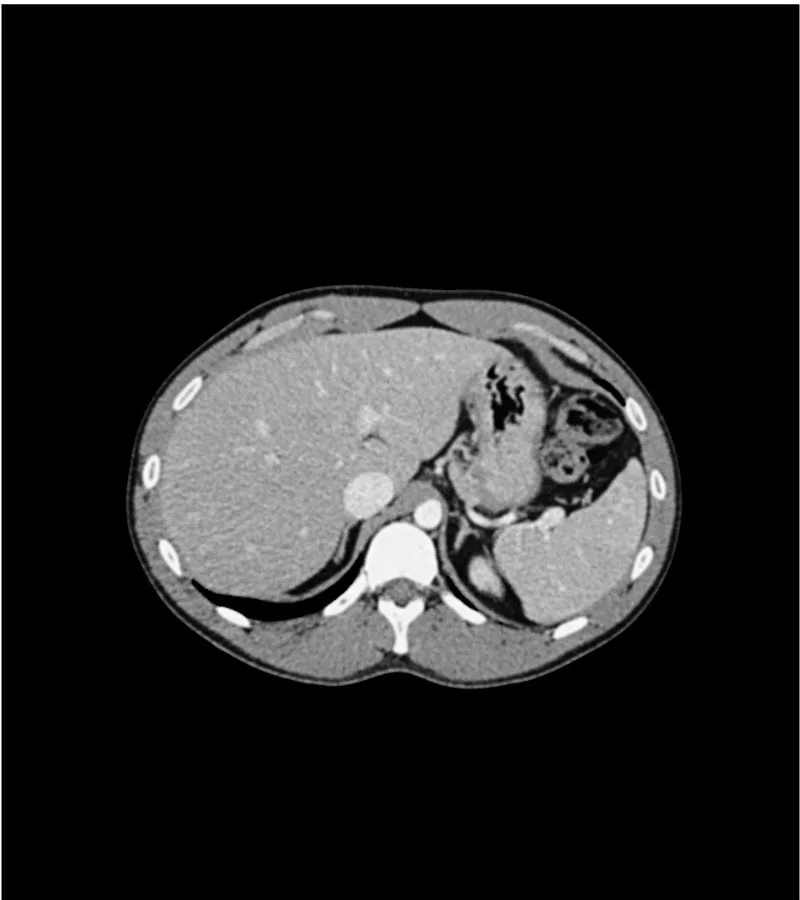

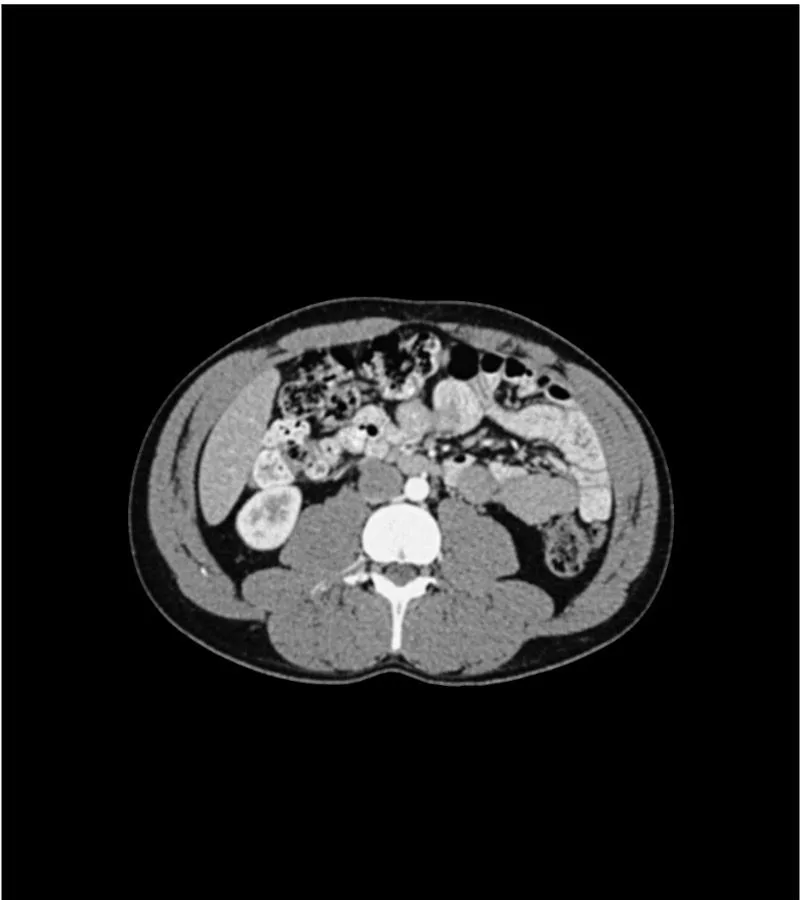

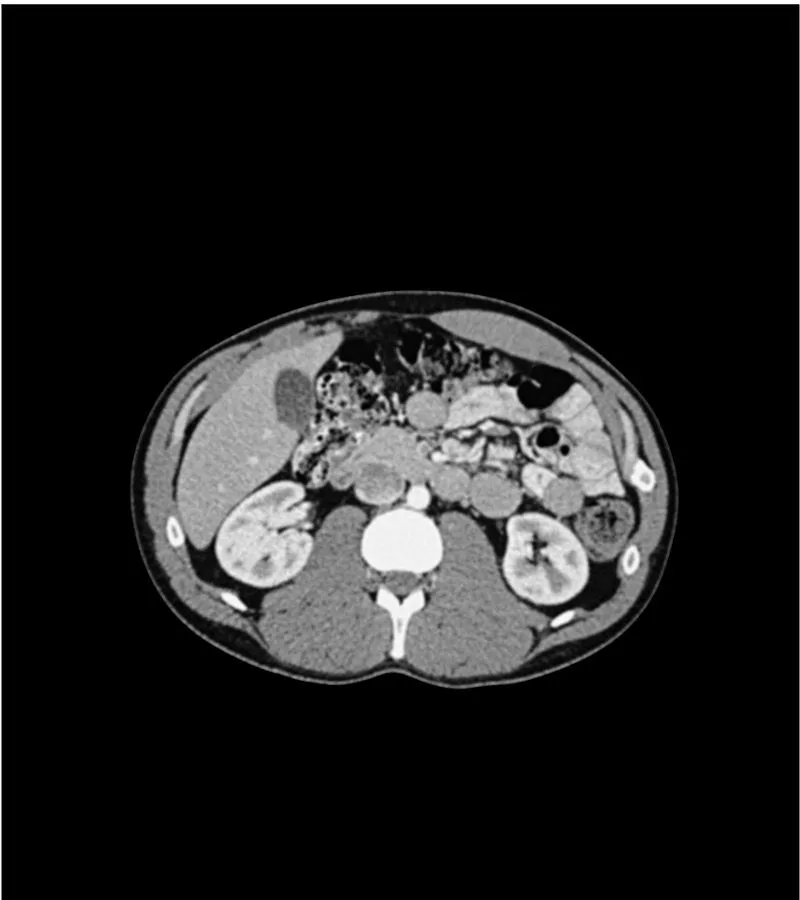

- This phantom simulates a contrast medium enhanced abdomen in portal venous phase. It covers the eleventh thoracic vertebra to the fourth lumbar vertebra (partially included). The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.
- Compatible with Machine/Modality/Application
- CT Simulation
