PhantomX Pure Breast Phantom for Mam AI-Sim
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI

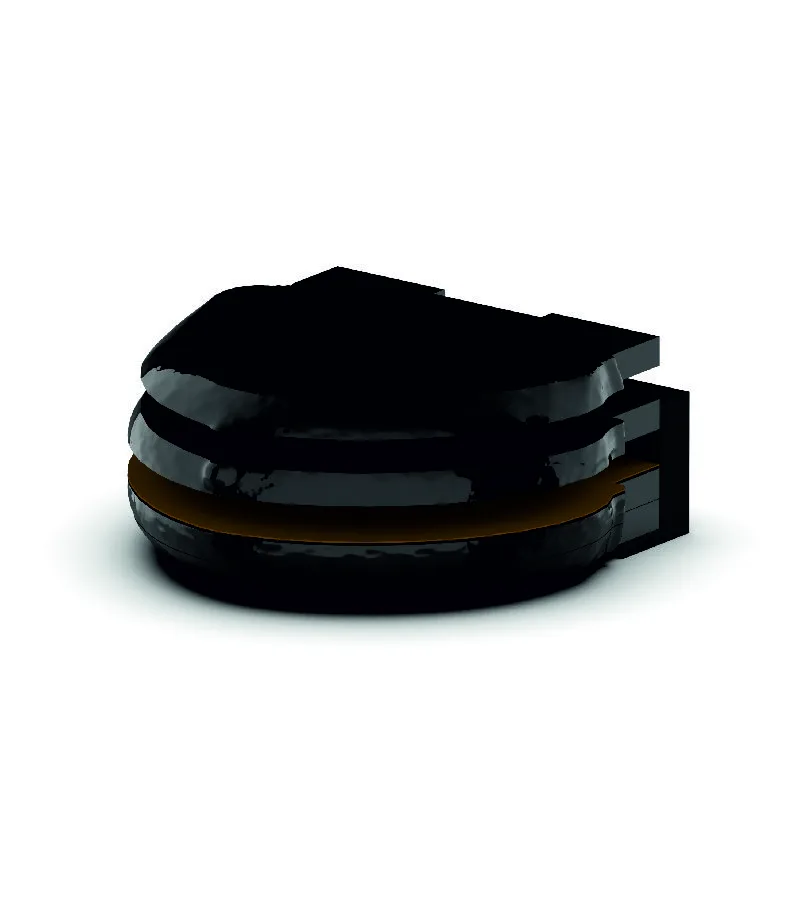

This breast phantom simulates a compressed breast. It is composed of four slabs that are held together by a magnetic mount.

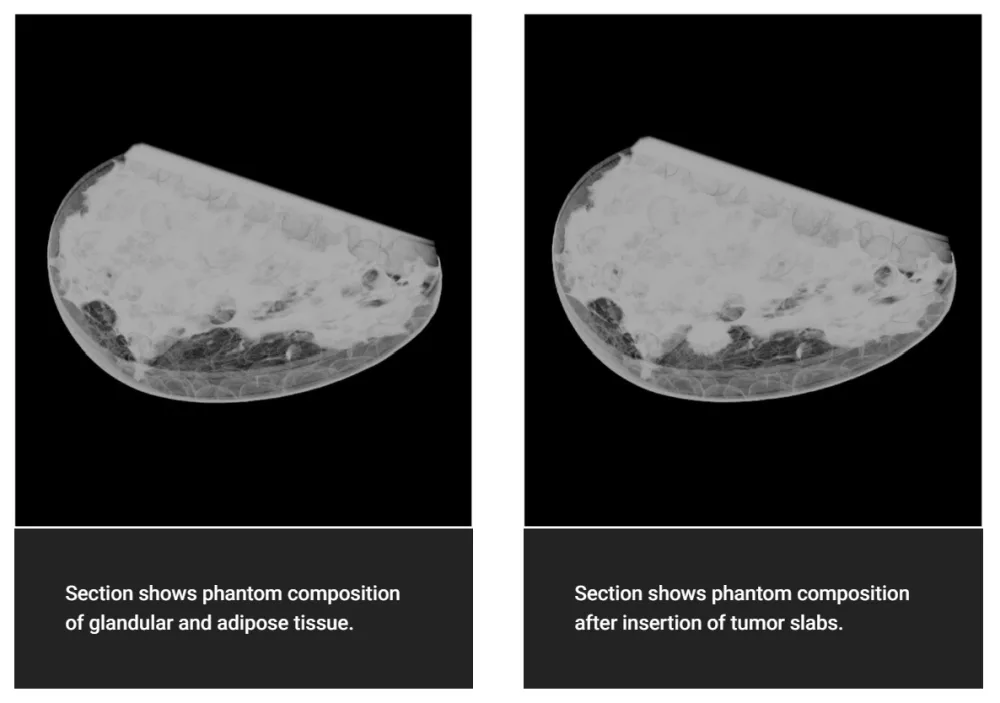

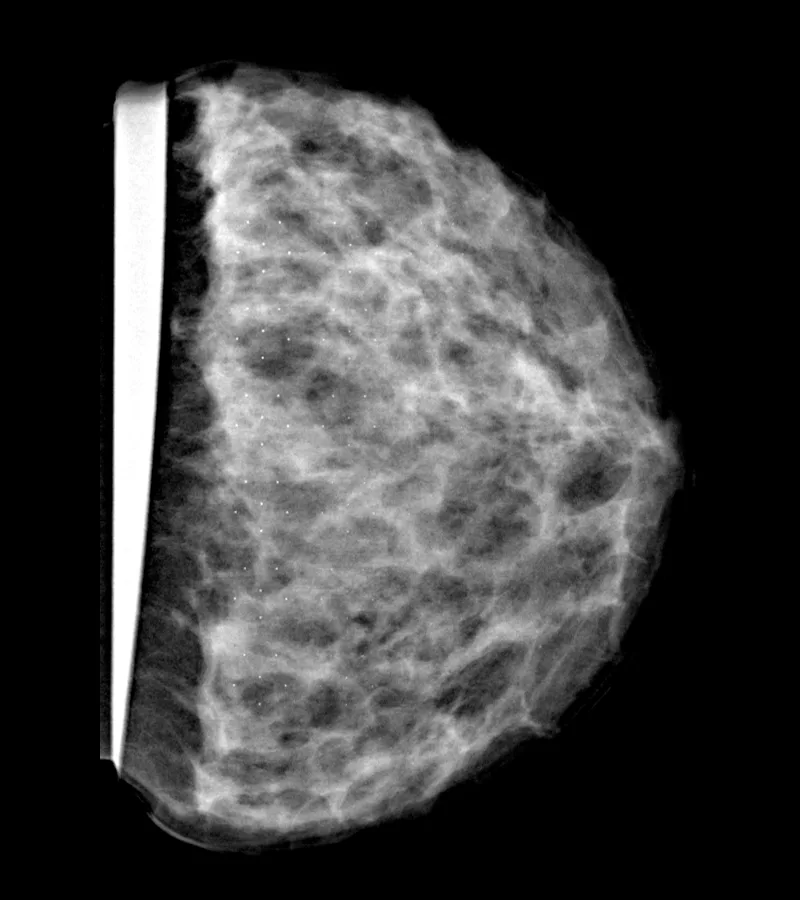

The phantom can be equipped with an insertable pattern to simulate microcalcifications. The central slabs can be replaced to simulate a breast mass.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Breast_Phantom/IBA-PhantomX-BreastPhantom-Brochure-Working.pdf
- Specifications
- Specifications Size: 152 x 134 x 36mm Weight: 590g Components: 4 slabs of 9 mm thickness Positioning aid: Magnetic mount Base material: Cellulose-polymer composite
- Used for Workflow
- AI QA, Breast
- Diagnostic features

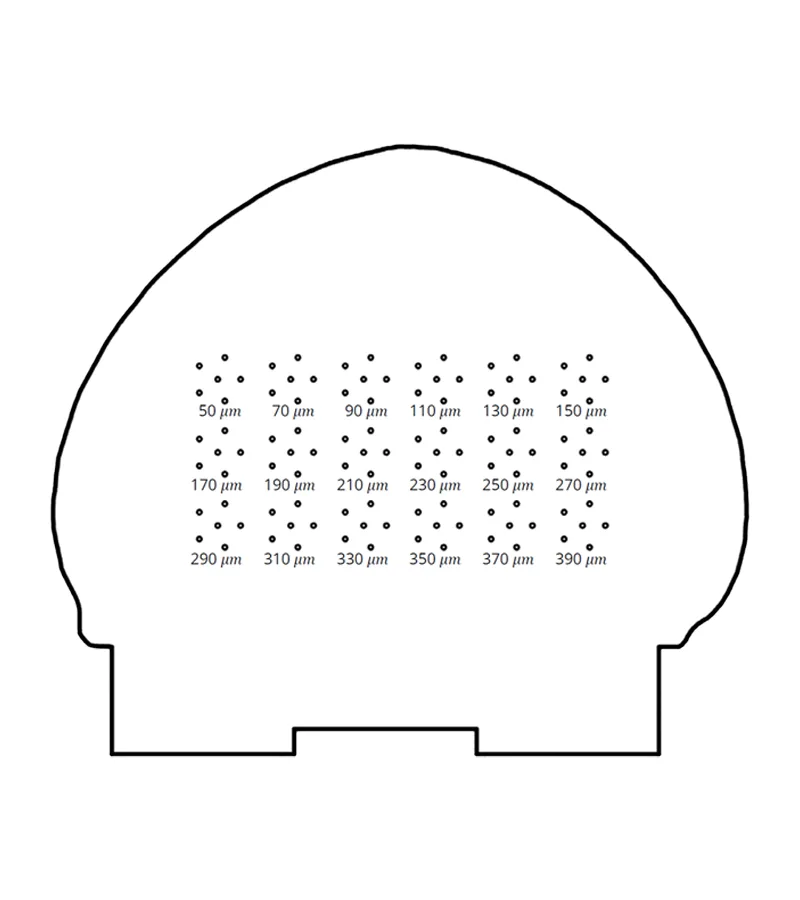

- Diagnostic features Realistic simulation of glandular and adipose tissue. Insertable calcification pattern - Pattern thickness: 0.1 mm Calcification diameter: 0.05 to 0.39 mm Replacement slabs containing a spiculated mass - Mass integrated in 2 additional slabs for replacement of the 2 central slabs - Mass size: approx. 15 x 17 x 15 mm
- Related Accessories
- Related Accessories The following accessories are available for this phantom: Breast Calcifications - Pentagonal Cluster A calcification pattern designed for use with the PhantomX Breast Phantom in mammography and breast tomosynthesis. It supports image quality assessment, training, and evaluation of diagnostic software, including AI tools. The pattern simulates realistic microcalcifications with diameters ranging from 50 µm to 390 µm, designed to provide accurate absorption properties within the diagnostic energy range. The pentagonal shape facilitates reliable and reproducible calcification detection.
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 240 × 185 × 106 mm - Dimensions (packaged)*: 290 × 250 × 130 mm - Total weight (ready to ship): 2.5 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.
- Mass and Calcifications

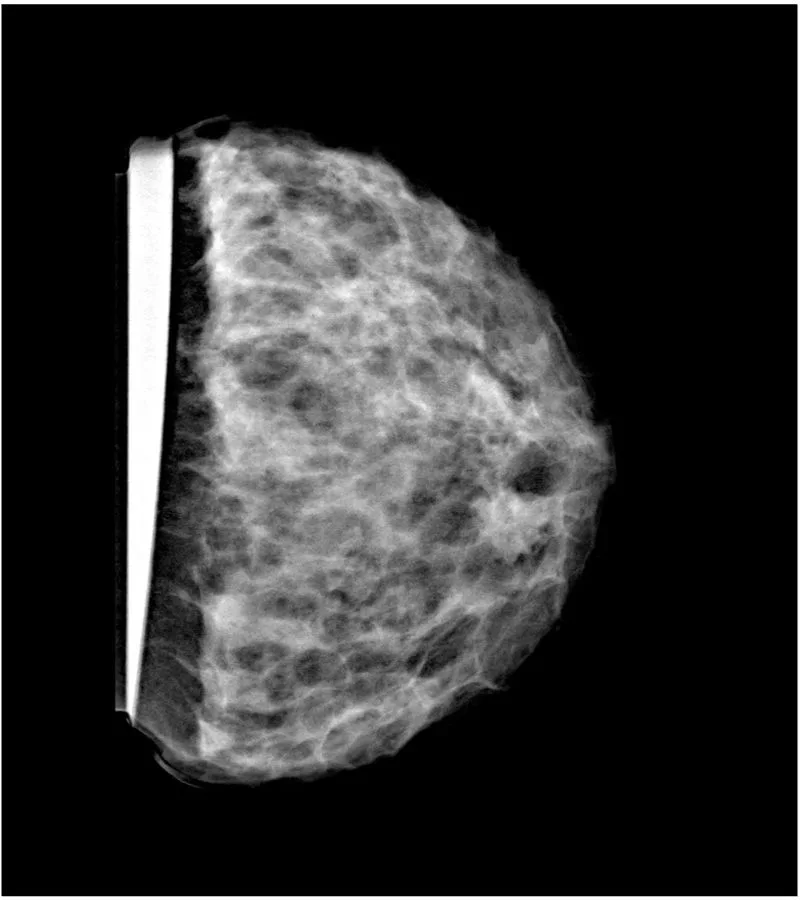

- This breast phantom simulates a compressed breast. It is composed of four slabs that are held together by a magnetic mount. The phantom can be equipped with an insertable pattern to simulate microcalcifications. The central slabs can be replaced to simulate a breast mass. The phantom can be used in mammography and breast tomosynthesis to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of glandular and adipose tissue.
- Compatible with Machine/Modality/Application
- Mammography, AI Performance Monitoring, Tomosynthesis, Breast
