IBA Dosimetry
PhantomX Child Torso Phantom
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI
1-year-old child
Detailed and realistic simulation of soft and bone tissue for CT (including CBCT) and X-ray imaging to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Abdomen/Child_Torso_Phantom_1-year-old_child/PX0203456.pdf
- Specifications
- Specifications Size: Approx. 210 x 145 x 313 mm Weight: Approx. 4400 g Base material: Cellulose-polymer composite Optimal tube voltage: 100 kVp – adaptable upon request –
- Used for Workflow
- Torso
- Diagnostic features
- Diagnostic features Realistic simulation of vasculature, bone and soft tissues, including the lungs, heart, liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine, colon and bladder.
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 415 x 280 x 190 mm - Dimensions (packaged)*: 465 x 355 x 210 mm - Total weight (ready to ship): 11.0 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.

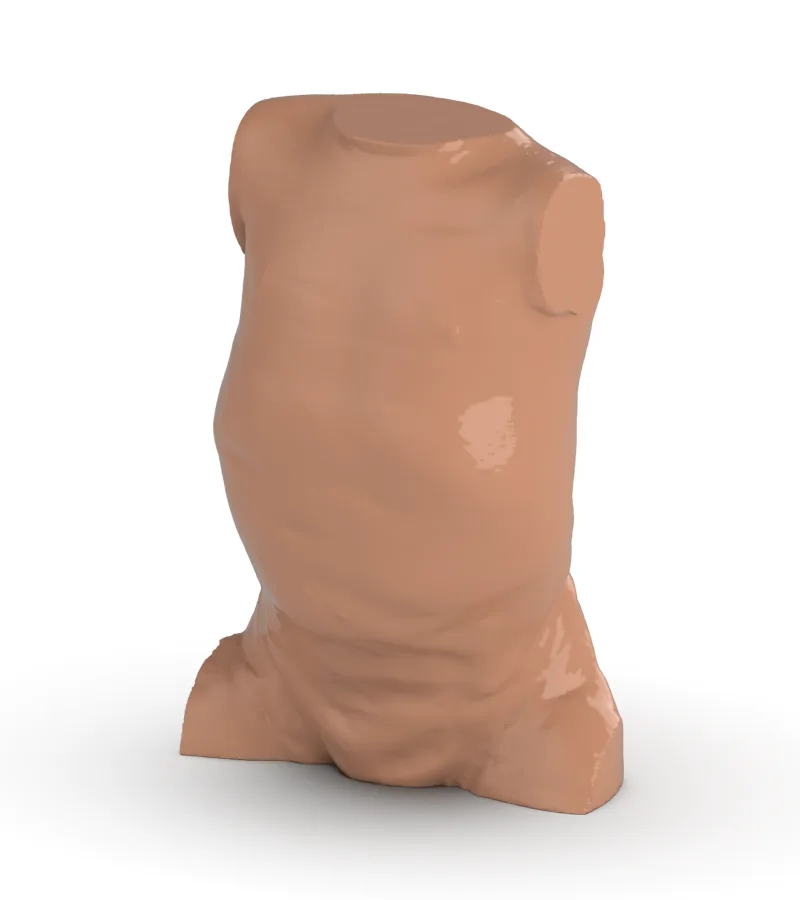

- Child Torso Phantom 1-year-old child

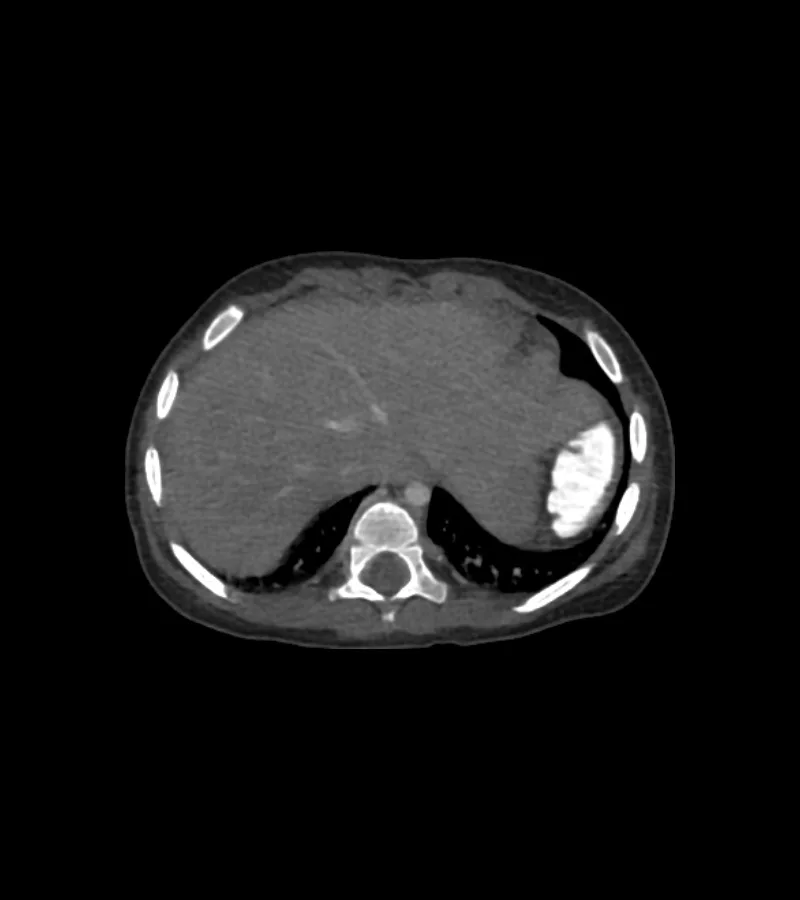

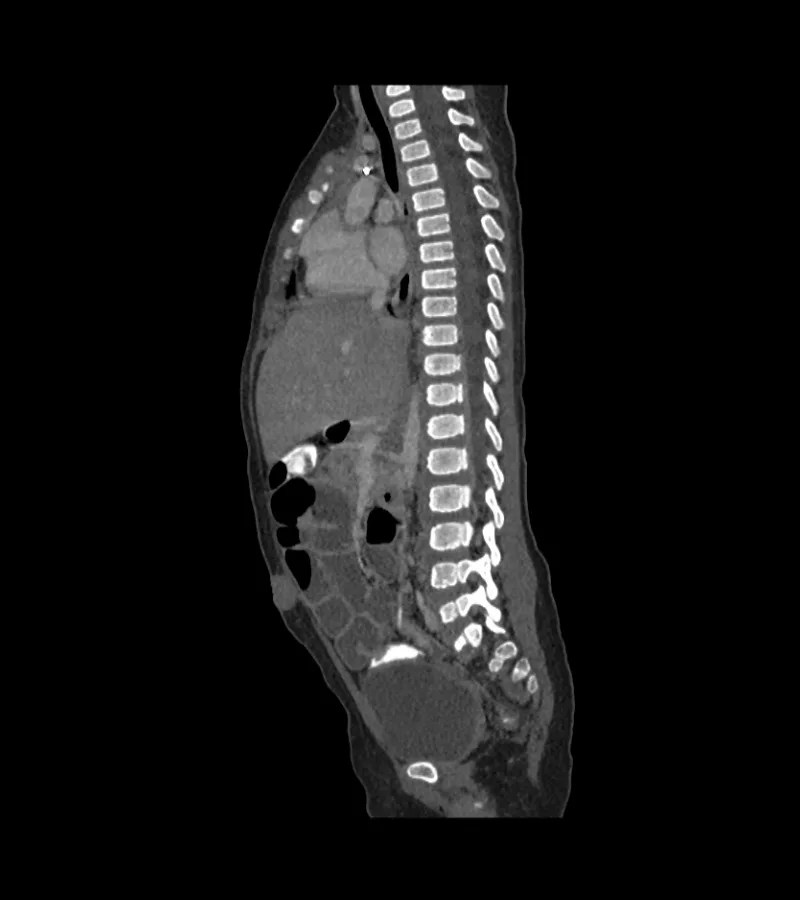

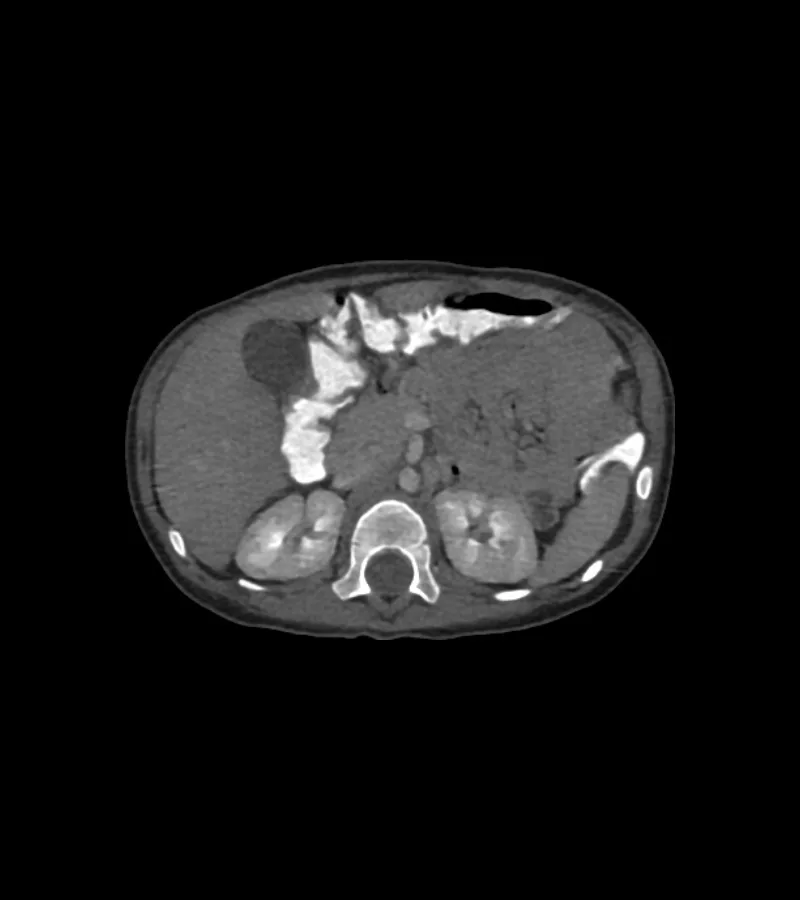

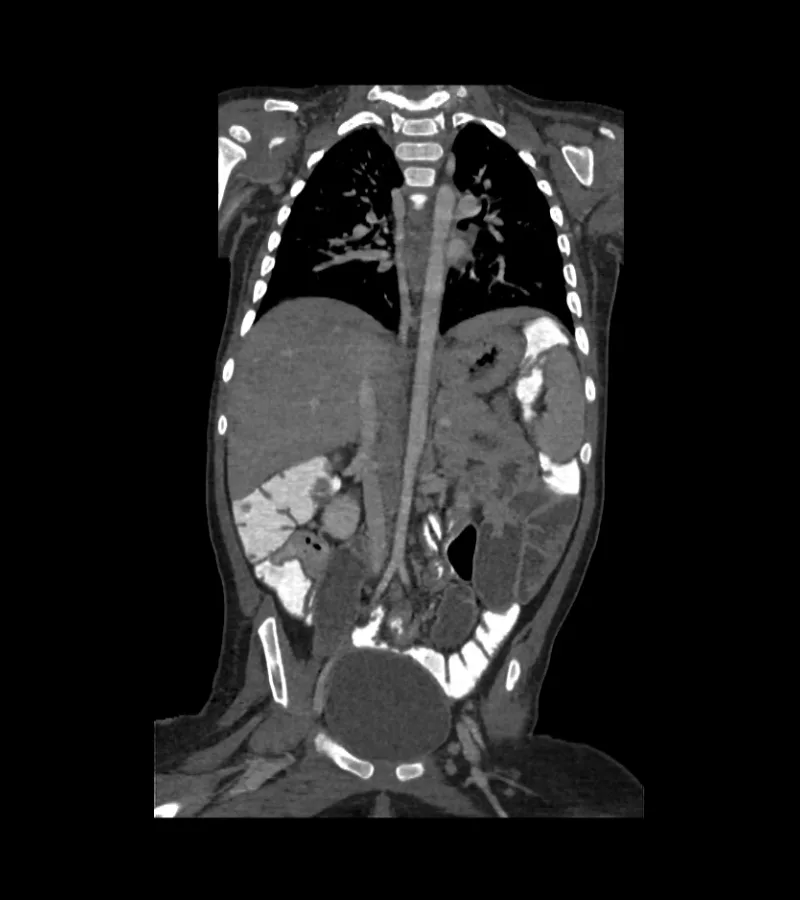

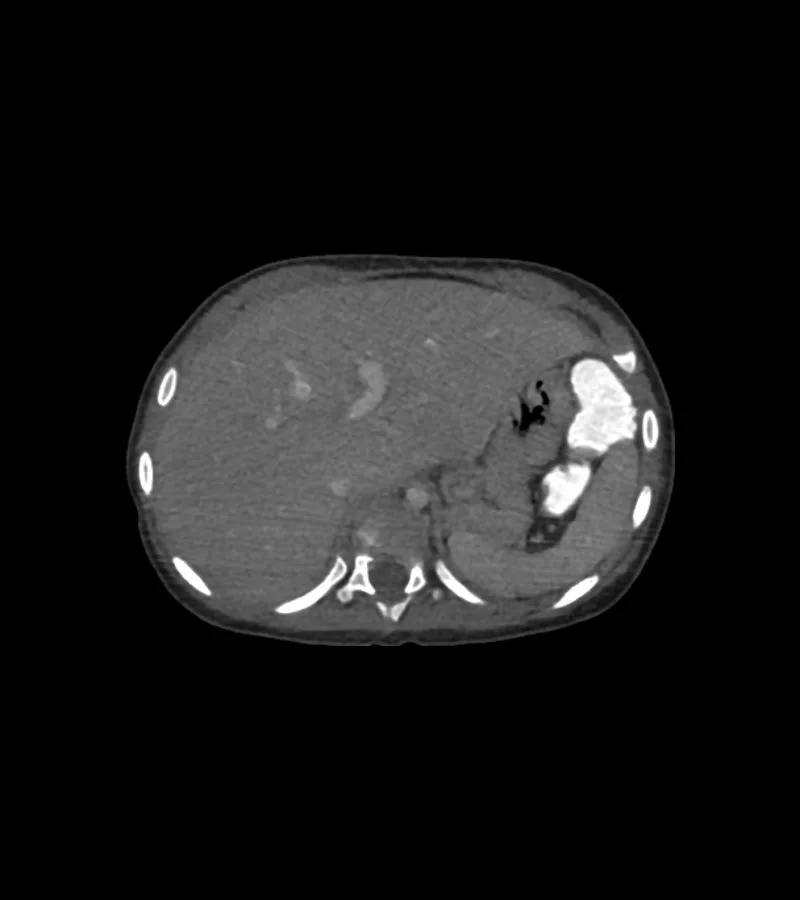

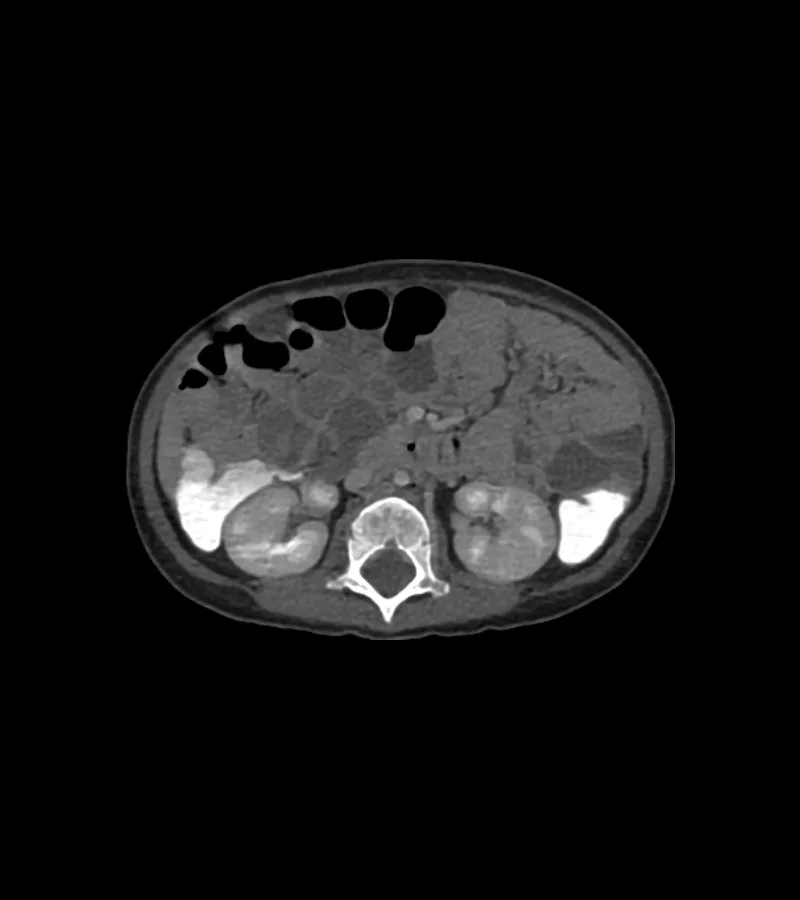

- This phantom simulates a 1-year-old child's contrast medium enhanced thorax, abdomen and pelvis in portal venous phase. It covers the sixth cervical vertebra to the perineum. The colon is filled with contrast medium as after rectal administration. The phantom can be used in CT (including CBCT) and X-ray imaging to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids including those of the lungs are filled with a cellulose-polymer composite of approx. -160 HU.
- Compatible with Machine/Modality/Application
- CT Simulation
