PhantomX Head Phantom
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - QA for AI
This phantom simulates a head with stroke and bleeding patterns. It covers the vertex to the foramen magnum.
- Brochure
- /fileadmin/user_upload/products/09_phantomx/PhantomX_-_Head_Phantom/IBA-PhantomX-HeadNeckPhantom-Brochure-Working.pdf
- Specifications
- Specifications Size: Approx. 190 x 210 x 147 mm Weight: Approx. 2640 g Base Material: Cellulose-polymer composite Optimal tube voltage: 120 kVp - adaptable upon request
- Used for Workflow
- Head
- Diagnostic Features

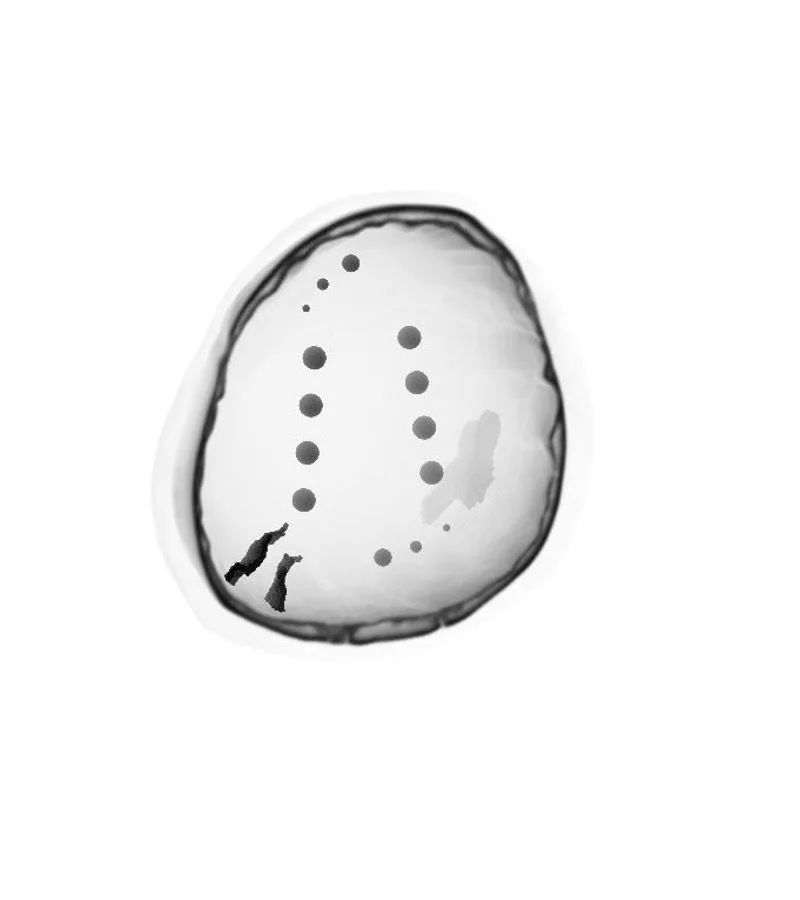

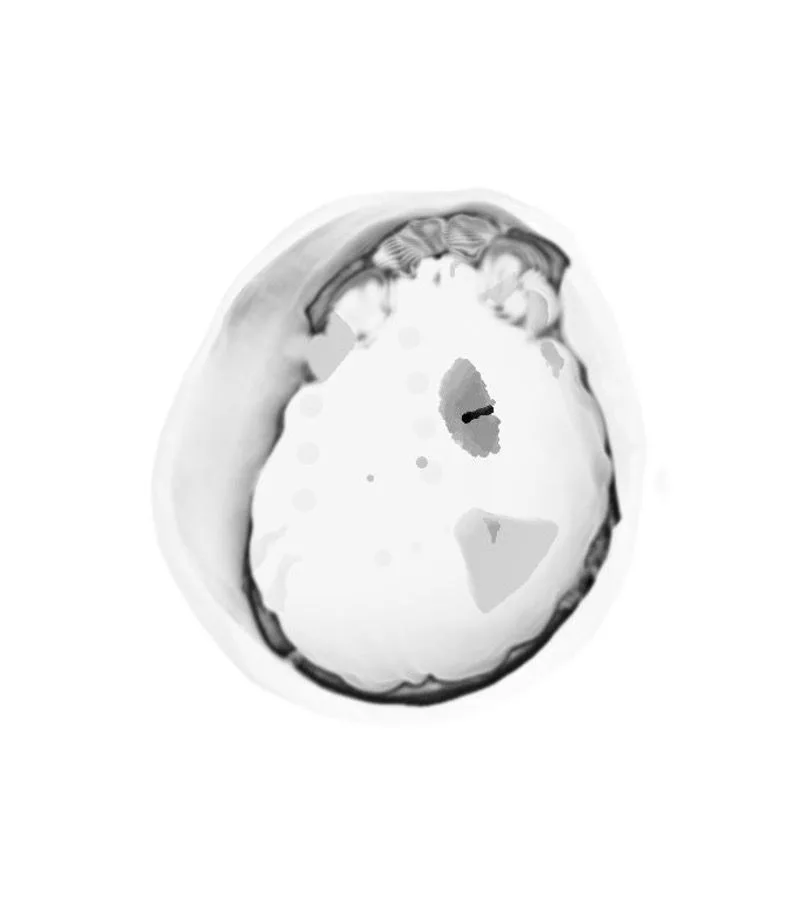

- Diagnostic Features Stroke - Hyperdense middle cerebral artery (MCA) and disappearing basal ganglia on the left side - Watershed infarcts in middle/posterior (MCA/PCA) and anterior/middle cerebral artery (ACA/MCA) territories - 8 lacunar infarcts of varying ages Hemorrhage - Subarachnoid hemorrhage (2 territories) - Subdural hemorrhage of varying ages (3 territories) - Intraventricular hemorrhage (left lateral ventricle) - Intracerebral hemorrhage (2 thalamic, 6 subcortical)
- Packaging & Dimensions
- Packaging & Dimensions The product ships in a protective hard case featuring interior foam padding. - Dimensions (case): 415 × 280 × 190 mm - Dimensions (packaged)*: 465 × 355 × 210 mm - Total weight (ready to ship): 9.0 kg *Outer packaging (e.g., cardboard box or protective wrap) may vary slightly, affecting total dimensions.
- Head Phantom Stroke / Bleed

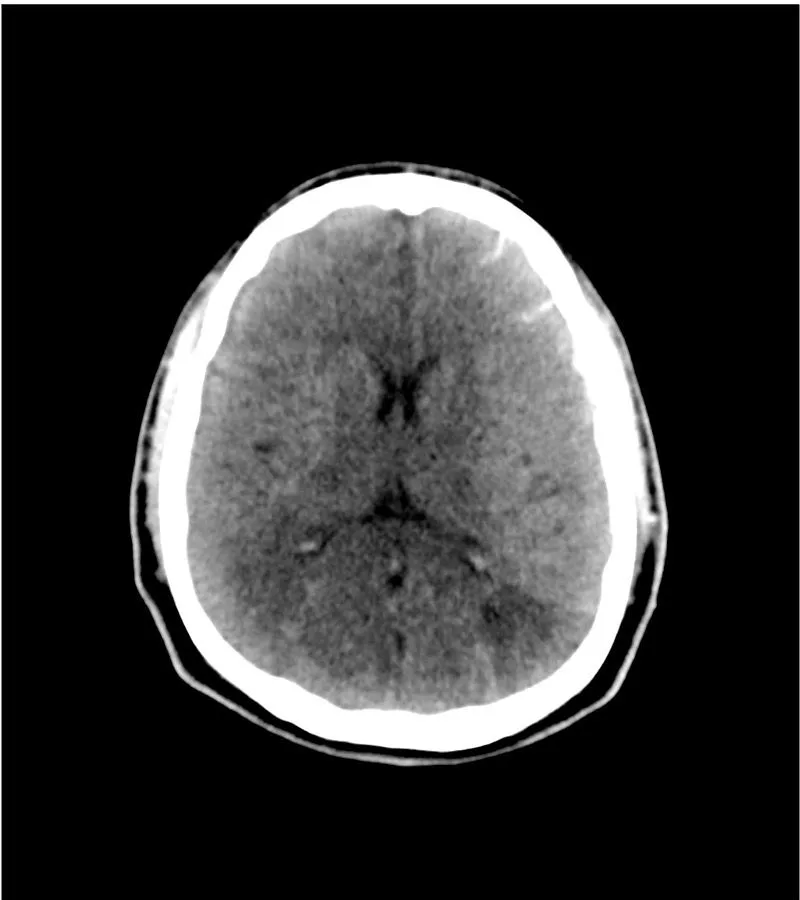

- This phantom simulates a head with stroke and bleeding patterns. It covers the vertex to the foramen magnum. Stroke patterns include signs of early infarction (hyperdense middle cerebral artery, disappearing basal ganglia), acute and subacute watershed infarcts, and lacunar infarctions of varying ages. Bleeding patterns include subarachnoid hemorrhage, subdural hemorrhage of varying ages, intraventricular hemorrhage, and intracerebral hemorrhage. The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and AI-enabled diagnosis. It is also suited for training purposes.The phantom provides a detailed and realistic simulation of common brain pathologies, soft and bone tissues. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.
- Compatible with Machine/Modality/Application
- CT Simulation, CBCT, Head
