IBA Dosimetry
PMMA Phantoms for CT/CBCT
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - Beam QA
Innovative 2-part or 3-part nested phantoms, complying with FDA and IEC standards
- Brochure
- /fileadmin/user_upload/products/04_medical_imaging/PMMA_Phantom_for_CT_CBCT/CT-complete-Kits_MI-Product-Overview_E_Rev.8.pdf
- 3-part CT phantom

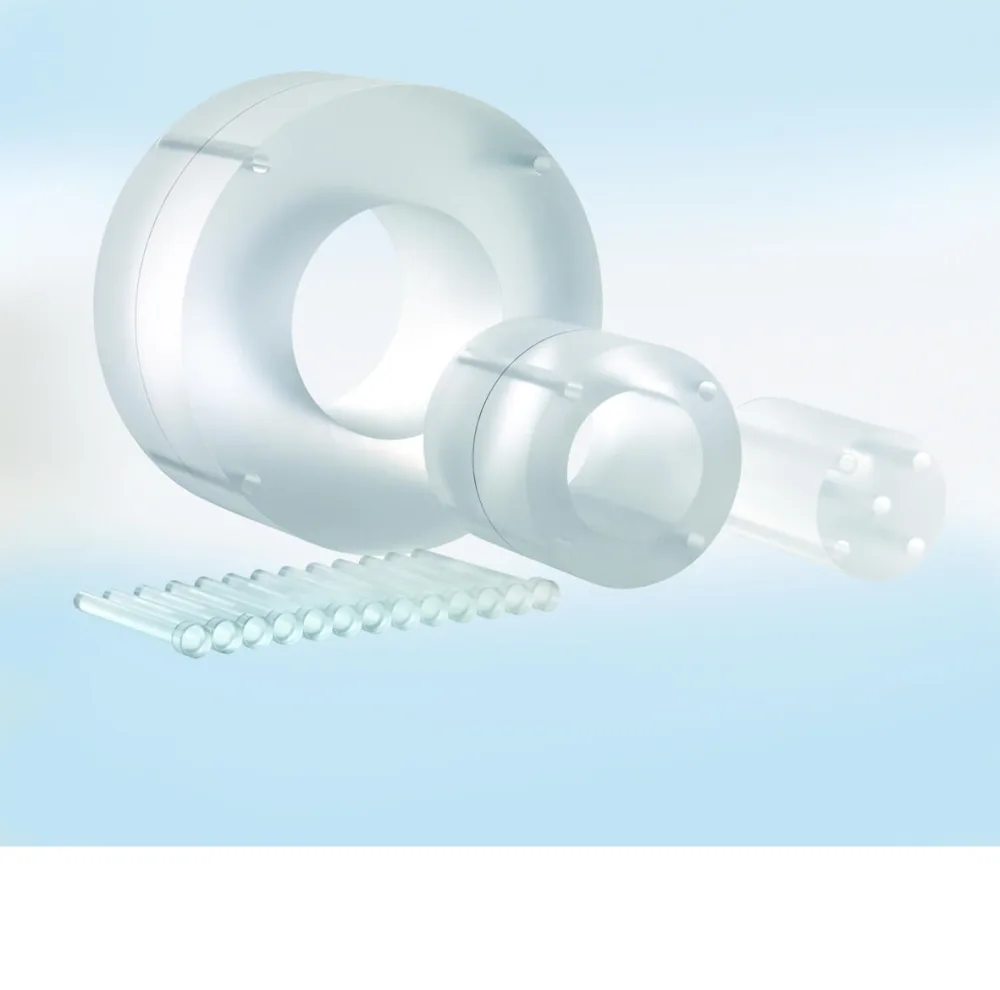

- 3-part CT phantom Innovative 3-part nested PMMA phantom for CTDI measurements. Designed to image pediatric and adult head and body in accordance with FDA performance standard for diagnostic X-ray systems (21CFR 1020.33). Consisting of: - 1 pediatric head phantom, 10 cm diameter, 5 holes - 1 adult head-/pediatric body phantom, 16 cm diameter, 4 holes - 1 adult body annulus, 32 cm diameter, 4 holes (the above-mentioned 3 phantoms fit into each other!) - 13 acrylic rods for plugging all the phantom holes
- Also listed under
- Medical Imaging - Image QA
- Used for Workflow
- Beam QA, Image QA (MI)
- 2-part PMMA CT-Phantom

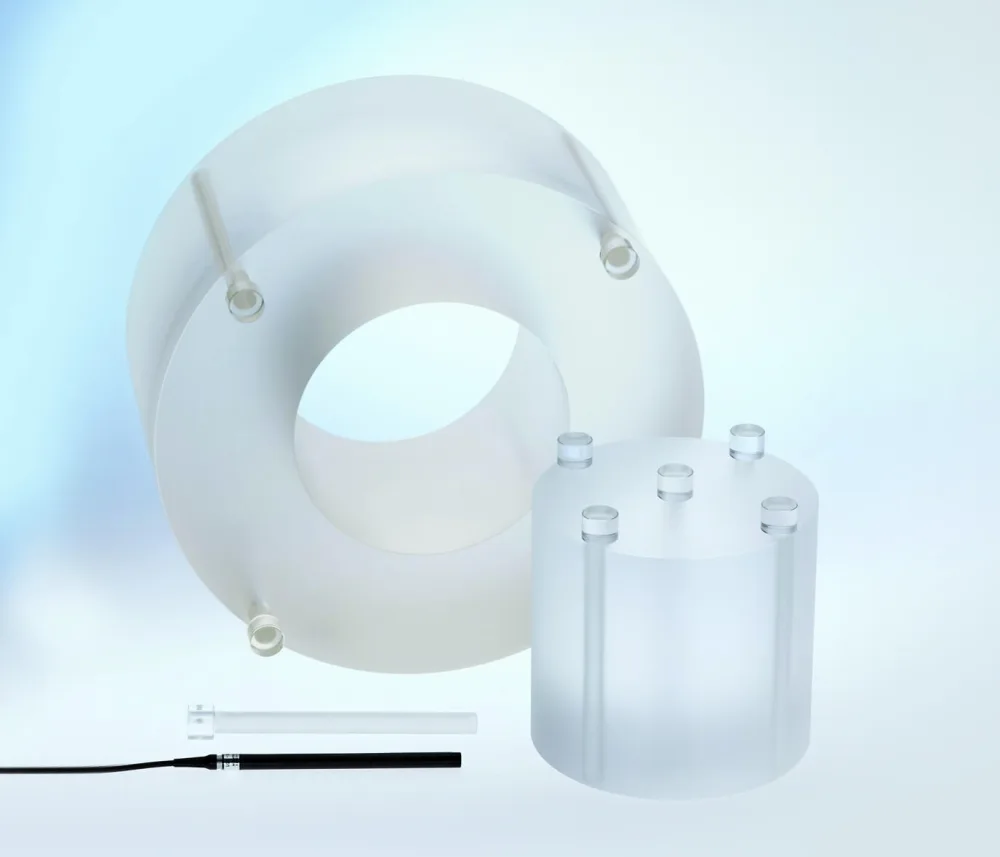

- 2-part PMMA CT-Phantom Phantom for CTDI measurements according to IEC 60601-2-44, IEC 61223-3-5, IEC 61223-2-6. Consisting of: - 1 adult head phantom, 16 cm diameter, 5 holes - 1 adult body annulus, 32 cm diameter, 4 holes - 9 acrylic rods for plugging all the phantom holes
