Accu-Gold T3
Art. N°
Hover to zoom · click to enlarge
Medical Imaging - Beam QA
Revolutionize your X-ray quality assurance with the Radcal^® T3 Series, powered by our industry-exclusive Smart Profile Technology. Introducing Accu-Gold Mobile, our new solution designed for maximum mobility and flexibility in X-ray beam measurement.
- T3 AD

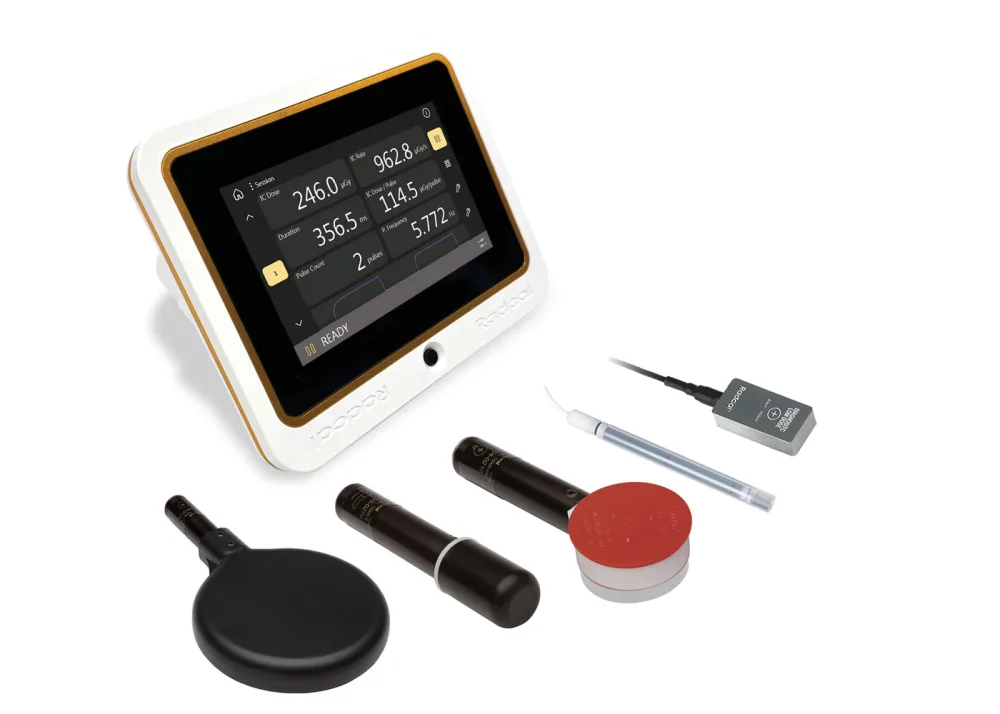

- T3 AD The T3 Accu-Dose+ with its Customizable Data capture profile page and its unique machine profiles make it the most cost-effective stand-alone instrument in Radcal’s T3 Series. Supporting Radcal’s gold standard ion chambers and solid-state dose sensors, it is an excellent system for dose measurements in Radiography, Fluoroscopy, Mammography, CT, and Survey applications.
- T3 AG
- T3 AG The T3 Accu-Gold+ with is the most versatile stand-alone system in Radcal’s product line, supporting Radcal’s unparalleled line of gold standard ion chambers, solid-state dose sensors, solid-state multi-sensors, and current probes. . These systems use machine specific Profiles which saves time by eliminating manual user settings and often only one exposure is needed. For example, when using the Mammo Combo Mode Profile, with a Single exposure kV, Time, dose, and dose rate are captured for each region. T3’s CBCT Profile allows for the capture of DAP, kV and Dose with one exposure. Frequently used Profiles can be saved as favorites.
- T3 RG

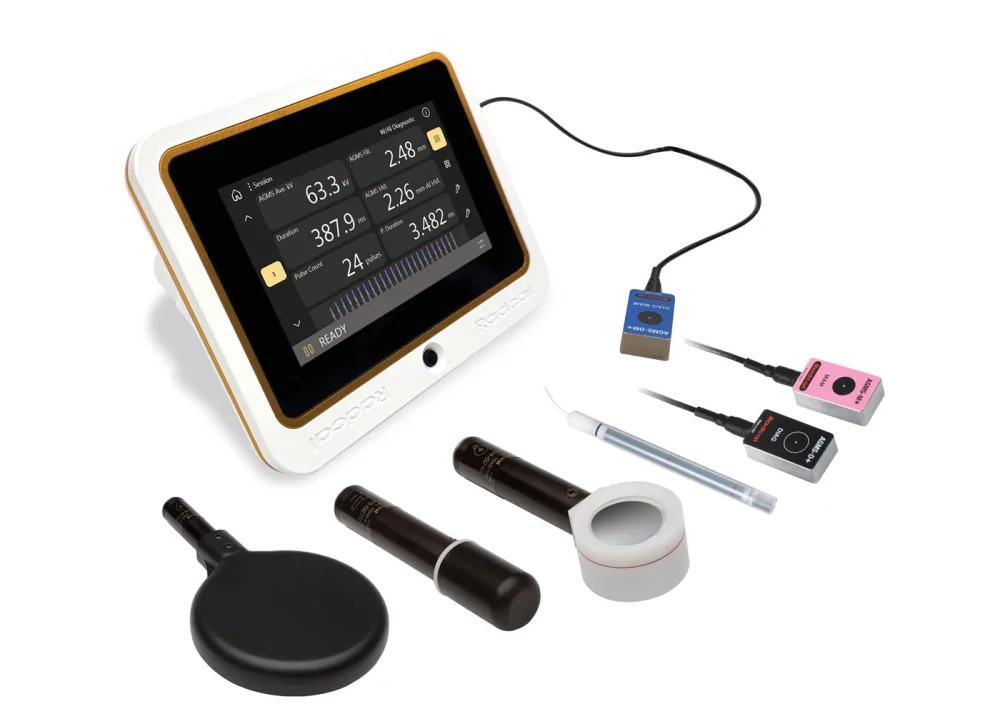

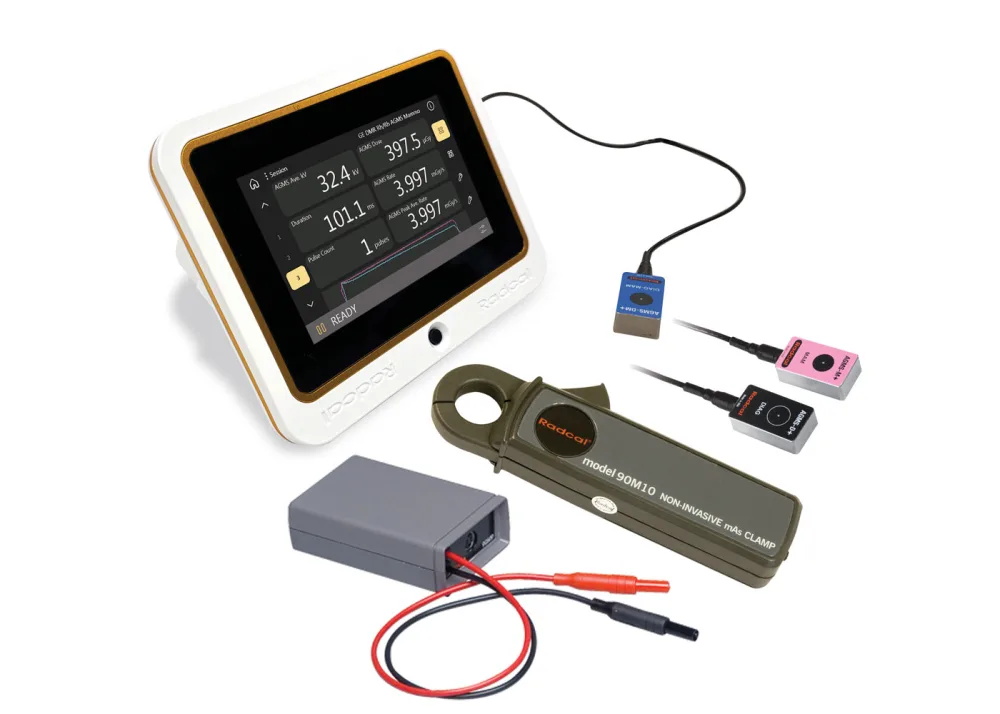

- T3 RG The T3 Rapid-Gold+ supports Radcal’s solid-state dose sensors, solid-state multi-sensors, and current probes. The Rapid-Gold+ Touch is an excellent stand-alone solution for Radiography, Fluoroscopy, Mammography, and Dental diagnostic x-ray applications. It’s ability to store machine specific Profile files saves time by eliminating manual user settings and often only one exposure is needed. For example, when using the Mammo Combo Mode Profile, with a Single exposure kV, Time, dose, and dose rate are captured for each region. T3’s CBCT Profile allows for the capture of DAP, kV and Dose with one exposure. A great time savings is that Frequently used Profiles can be saved as favorites.
- Brochure
- /fileadmin/IBA_Radcal-T3-Series-Brochure.pdf
- T3 AD Pro

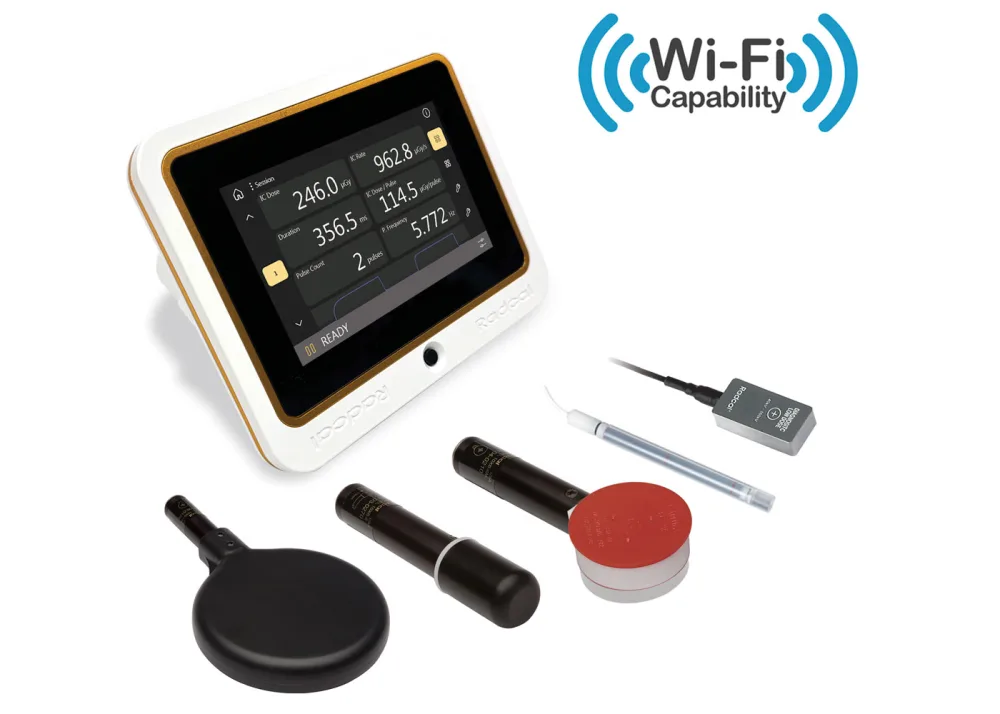

- T3 AD Pro The T3 Accu-Dose+ Pro with its Customizable Data capture profile page and it’s unique machine profiles make it the most cost-effective stand-alone instrument in Radcal’s T3 Series. Supporting Radcal’s gold standard ion chambers and solid-state dose sensors, it is an excellent system for dose measurements in Radiography, Fluoroscopy, Mammography, CT, and Survey applications. The Pro Series adds wired and wireless computer interfaces to the Touch stand-alone system. With this interface, the Accu-Gold 3.0 Windows software provides a feature-rich and user-friendly environment in which to perform your measurements. Stream-lined Excel reporting and advanced waveform analysis are among many useful capabilities. Android and IOS applications are available for R/F – please contact Radcal for details.
- T3 AG Pro

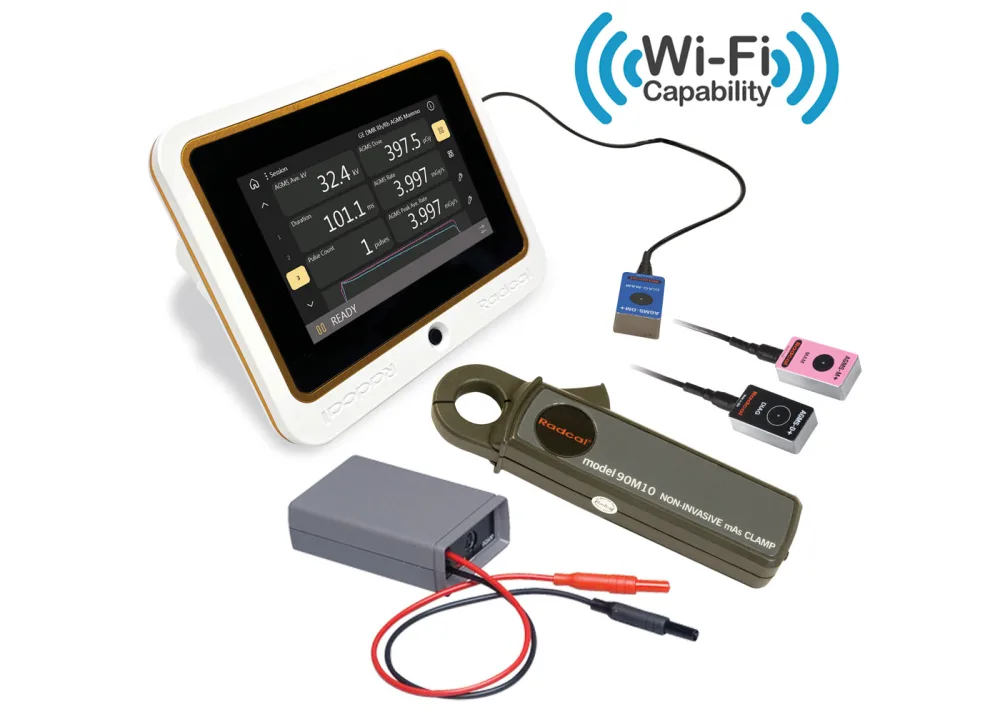

- T3 AG Pro The T3 Accu-Gold+ Pro is the most versatile stand-alone system in Radcal’s product line, supporting Radcal’s unparalleled line of gold standard ion chambers, solid-state dose sensors, solid-state multi-sensors, and current probes. These systems use machine-specific profiles, saving time by eliminating manual user settings, often requiring only one exposure. For example, the Mammo Combo Mode Profile captures kV, time, dose, and dose rate for each region of interest with a single exposure. T3’s CBCT Profile captures DAP, kV, and dose with one exposure. Frequently used profiles can be saved as favorites for quick access. The Pro Series adds wired and wireless computer interfaces to the T3 stand-alone system. The Accu-Gold 3.0 Windows software offers a feature-rich, user-friendly environment for measurements, including streamlined Excel reporting and advanced waveform analysis. Android and iOS applications are available for R/F – please contact Radcal for details.
- T3 RG Pro

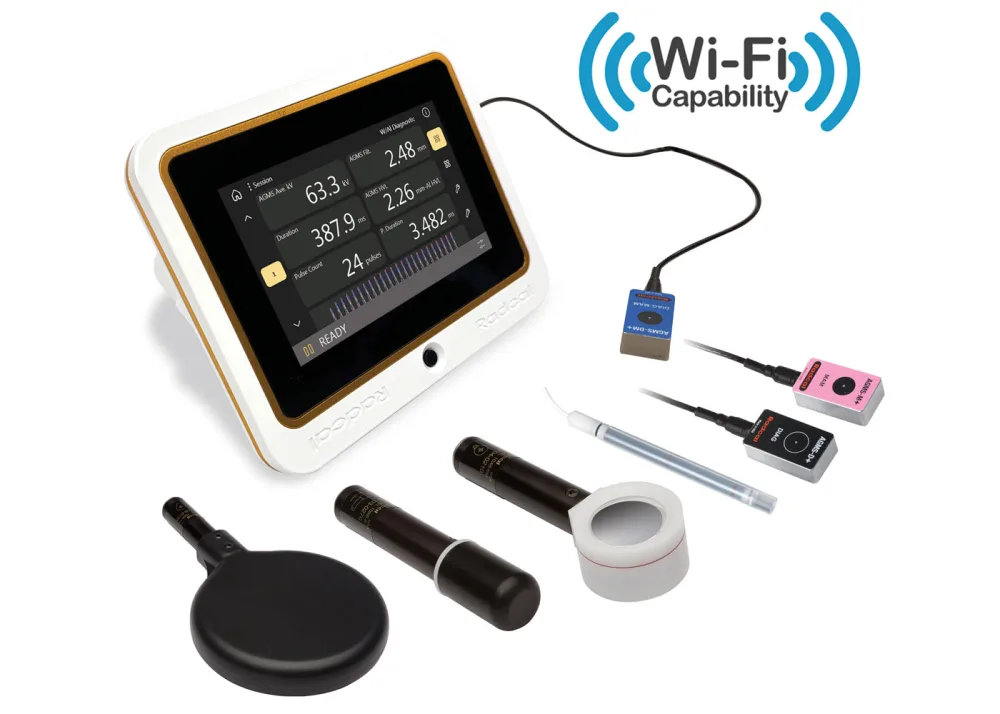

- T3 RG Pro The T3 Rapid-Gold+ Pro supports Radcal’s solid-state dose sensors, solid-state multi-sensors, and current probes. The Rapid-Gold+ Touch is a stand-alone solution for Radiography, Fluoroscopy, Mammography, and Dental diagnostic x-ray applications. It stores machine-specific profiles, saving time by eliminating manual user settings and often requiring only one exposure. For example, the Mammo Combo Mode Profile captures kV, time, dose, and dose rate for each region with a single exposure. T3’s CBCT Profile captures DAP, kV, and dose with one exposure. Frequently used profiles can be saved as favorites. The Pro Series adds wired and wireless computer interfaces to the T3 stand-alone system. The Accu-Gold 3.0 Windows software offers a feature-rich, user-friendly environment for measurements, including streamlined Excel reporting and advanced waveform analysis. Android and iOS applications are available for R/F – please contact Radcal for details.
- Accu-Gold Mobile

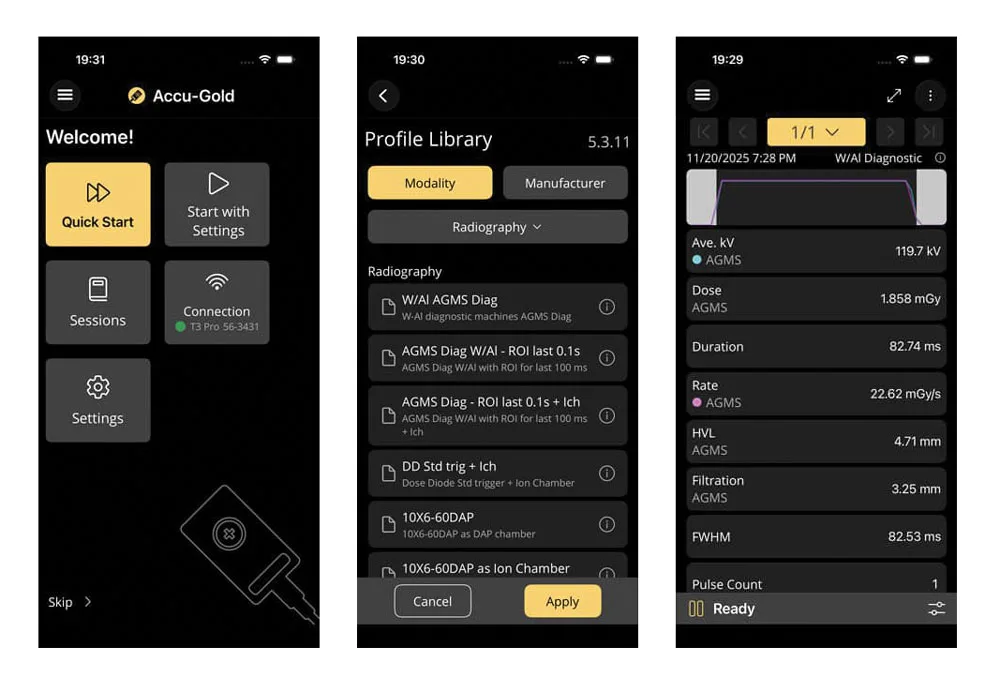

- Accu-Gold Mobile Wireless X-ray measurement control for IBA Radcal devices Accu-Gold Mobile is the official mobile application for IBA Radcal’s Wi-Fi–enabled X-ray measurement systems. It provides fast, wireless, and precise control of devices such as Accu-Gold T3 Pro, Rapid-Gold T3 Pro, Accu-Dose T3 Pro and the Accu-Gold Touch Pro family as well as the Accu-Gold Nugget. Key Features - Wi-Fi Connectivity – Configure settings and control measurements wirelessly - Real-Time Display – Live dose, dose rate, kVp, HVL, exposure time, pulse data, and waveforms (device-dependent) - Measurement History – Local session storage for review and trend analysis - Flexible Export – XLSX and AG3 formats - Demo Mode – Full feature access without hardware - Wide Compatibility – Supports all IBA Radcal Wi-Fi–enabled systems - Modern Interface – Clean design for fast setup and efficient field workflows - Available for iOS & Android
- Also listed under
- Radiation Therapy, Particle Therapy
- Used for Workflow
- Beam QA, Imaging QA PT, Imaging QA RT
- The T3 Professional Series
- At T3’s core is its unique ability to use profiles. Machine Specific Profiles provided by Radcal are used to define the measurement process. They spell out trigger parameters, filtration requirements, the breakdown of the measurement (such as having a scout pulse) and the end of the pulse without user intervention. Special calibrations are built into the profiles eliminating the need to install calibration files. Profile selection allows you to specify different techniques for special measurements. Profiles save time by eliminating manual user settings and often only one exposure is needed. T3 Professional Series – a meter with display and USB or Wi-Fi capability for extended use with your laptop or tablet computer. Using the Accu-Gold Windows application users are able to access a rich set of advanced capabilities such as automated Excel-based reporting and waveform analysis. Accu-Gold Mobile extends this flexibility as the official mobile application for IBA Radcal’s Wi-Fi–enabled X-ray measurement systems. It delivers fast, wireless, and precise control of the Accu-Gold Touch Pro family and Accu-Gold Nugget, enabling accurate measurements and efficient workflow management directly from a mobile device. Download the compatibility and features table in the Resoures section!
- Compatible with Machine/Modality/Application
- Radiography and Fluoroscopy, Mammography, Dental, Computed Tomography, Radiation Protection
