IBA Dosimetry
Blue Phantom²
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy
Blue Phantom² embodies decades of expertise, research and experience, providing you with the best of water phantoms.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/bluephantom2/ibd26001-43_Blue_Phantom2__re-design_brochure_05a_re_DS.pdf
- Water Reservoir
- Water Reservoir - Fill or drain your phantom in a few minutes and enjoy ease-of-use with quick coupling! - with accessory storage - Pump capacity: Max. 25 l/min. - Pump: DC motor 24 V, 750 W, bi-directional - Tank volume: 210 liters
- Also listed under
- Particle Therapy
- Used for Workflow
- Commissioning PT, Commissioning and Annual QA RT, Annual QA PT
- myQA CCU-X electrometer
- myQA CCU-X electrometer Input:: two independent reference class electrometers Bias voltage:: ±50V – ±500V Leakage:: <100 fA, typically < 40 fA Ranges:: 400 fA–600 pA, 6pA–60nA, 2.4nA–24µA Resolution:: ■ 0.12 fA at 0.6 nA full scale■ 12 fA at 60 nA full scale■ 4.8 pA at 24 µA full scale Time Constant:: 22 ms Interface:: Ethernet cable and Wi-Fi Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.

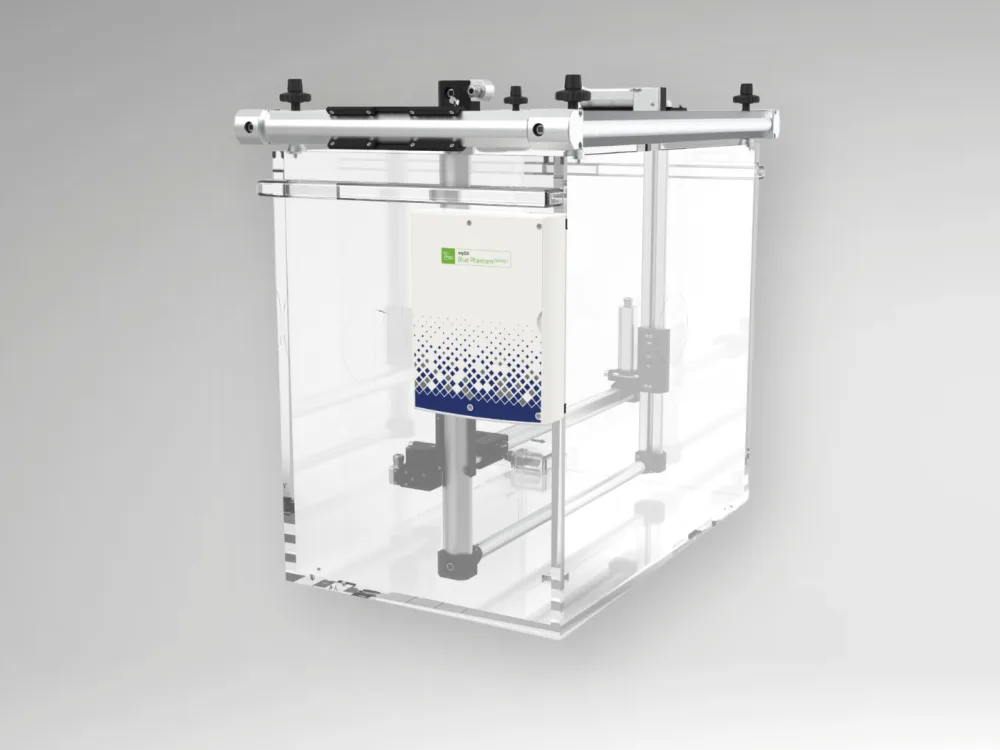

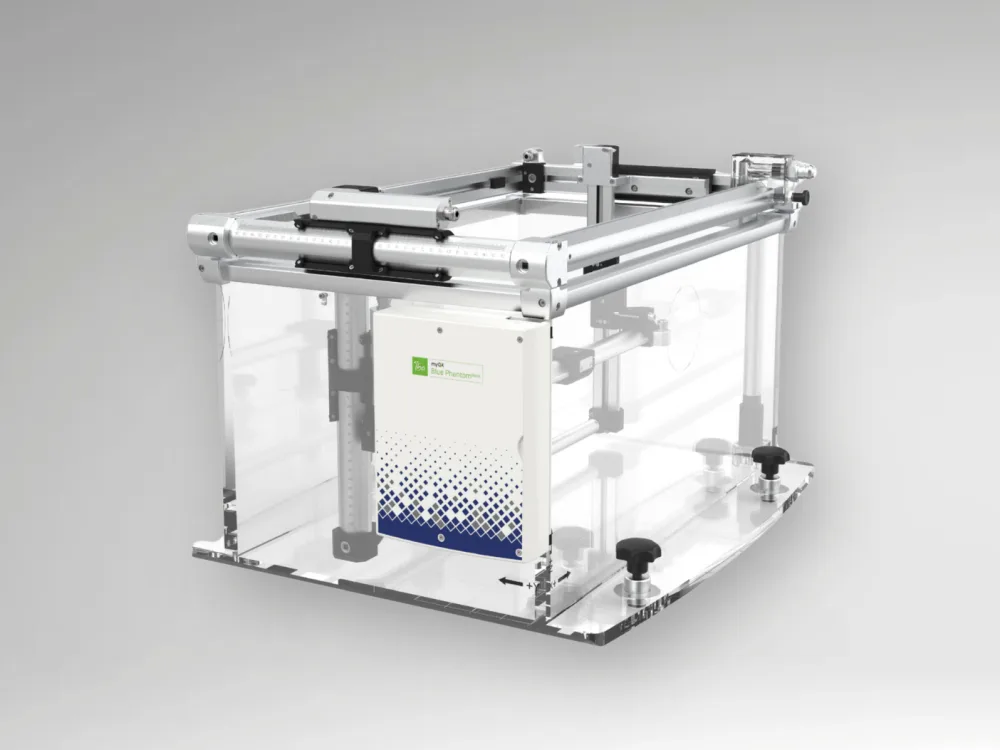

- Blue Phantom² specifications
- Blue Phantom² specifications 3D Water Phantom Slanted bottom Scanning volume:: 480 x 480 x 410 mm Position resolution:: 0.1 mm Position accuracy:: +/- 0.1 mm/0.1 mm Scanning speed:: 25 mm/s Volume (~):: 200 liters Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.

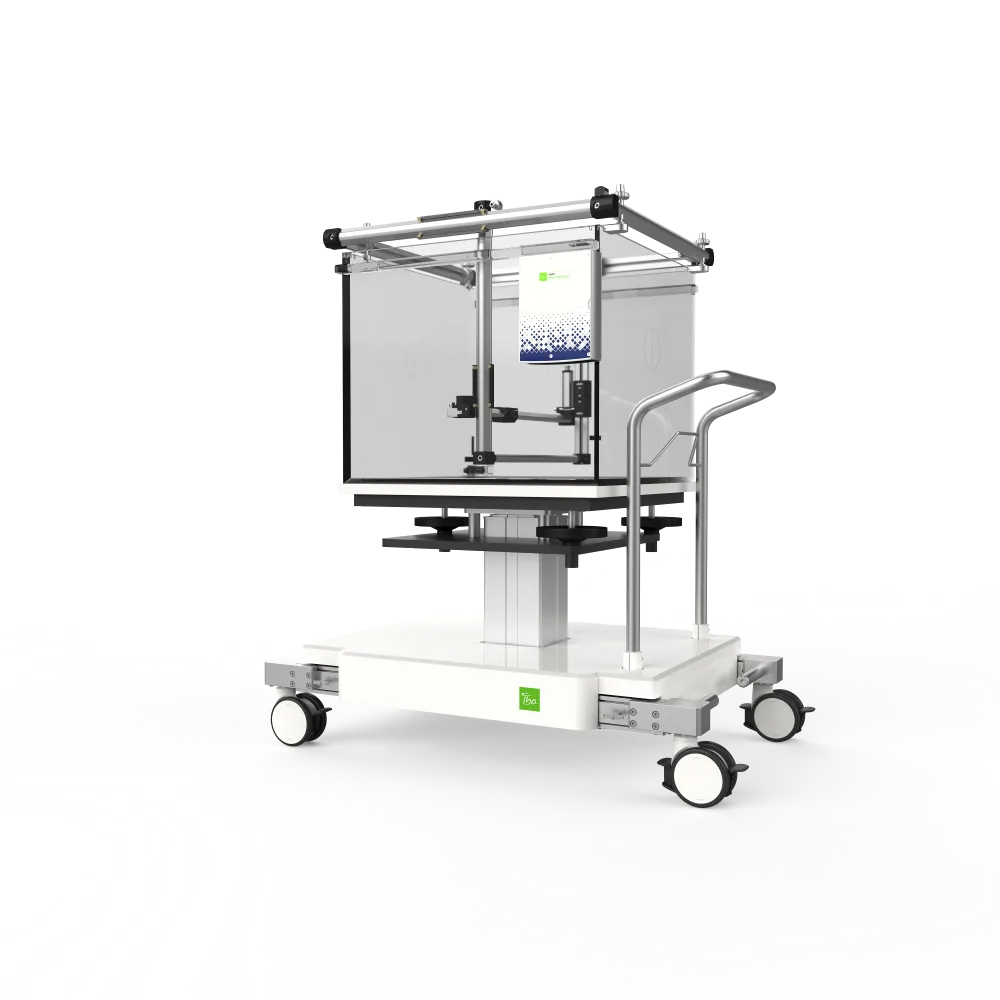

- Lift Table – compact design
- Lift Table – compact design - Compact, stable aluminum frame enables easy transport and precise setup. - Spindle mechanism ensures accurate lifting and measurement height. - Retractable legs ensure a small footprint for easy transport through narrow spaces and storage. - Big wheels move the equipment easily, even on rough surfaces. - Fits all linacs. No extras needed. - Compatible with C-arm, robotic, and most bore-type linacs. - Mounts easily, no additional accessories required. - Designed to simplify your workflow and support every setup.
- Compatible with Machine/Modality/Application
- Carbon Compatible, C-arm linacs, Robotic linac, Cyclotrons, Bore-type linacs, Proton Therapy, Small Field Dosimetry, Synchro-Cyclotron, TG106, TG135, TG224, TG51

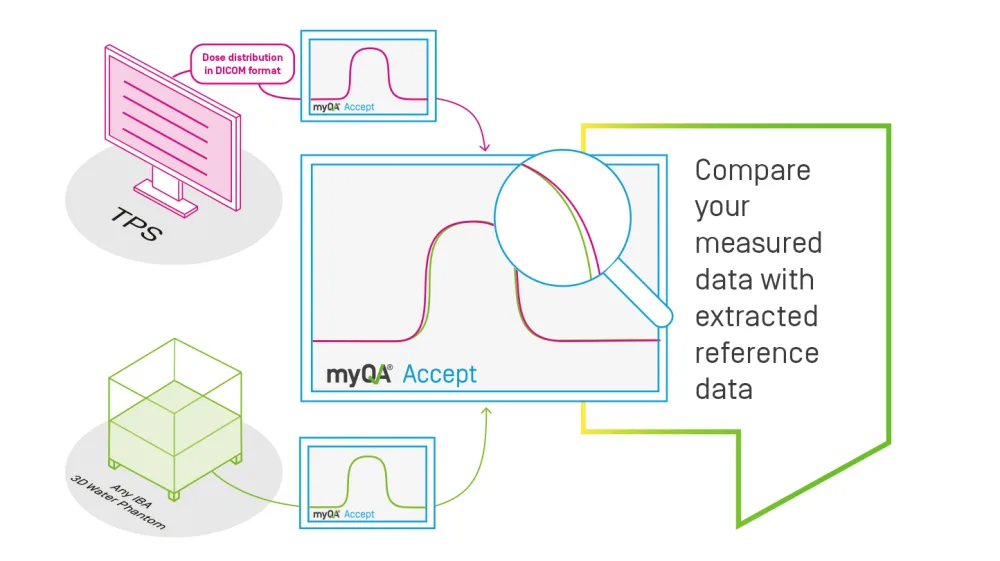

- Innovative & independent QA to maximize patient safety

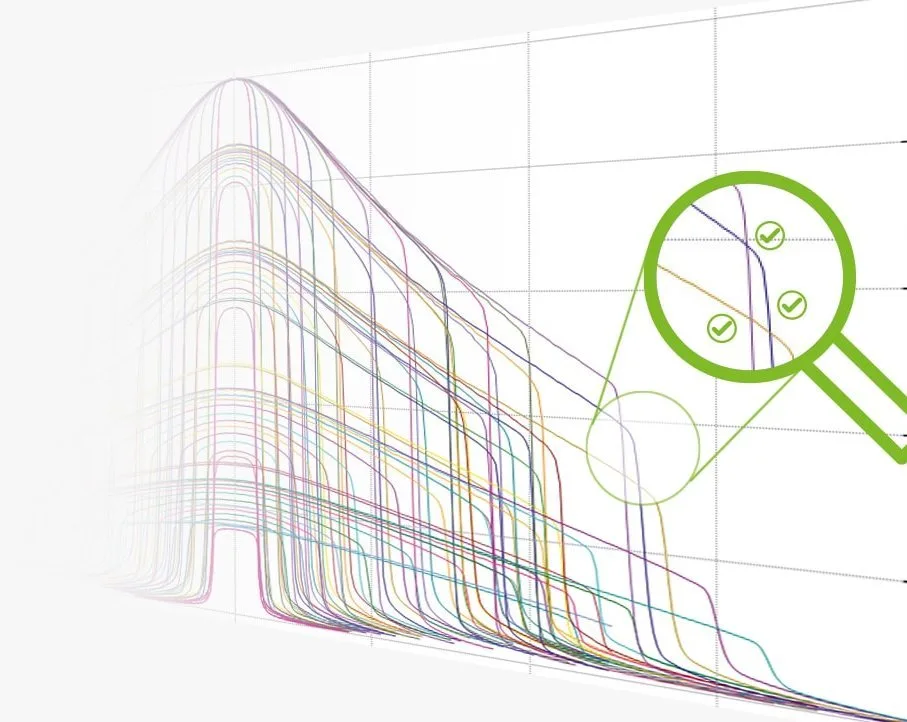

- Blue Phantom² is powered by myQA Accept, our trusted and well-established software, providing the following benefits: - Validation of pre-commissioned machines - Pre-configured beam data validation - QA of your existing beam models (TPS QA) - Compatible with any Treatment Planning System (TPS) exporting in DICOM format Find out about myQA Accept here!

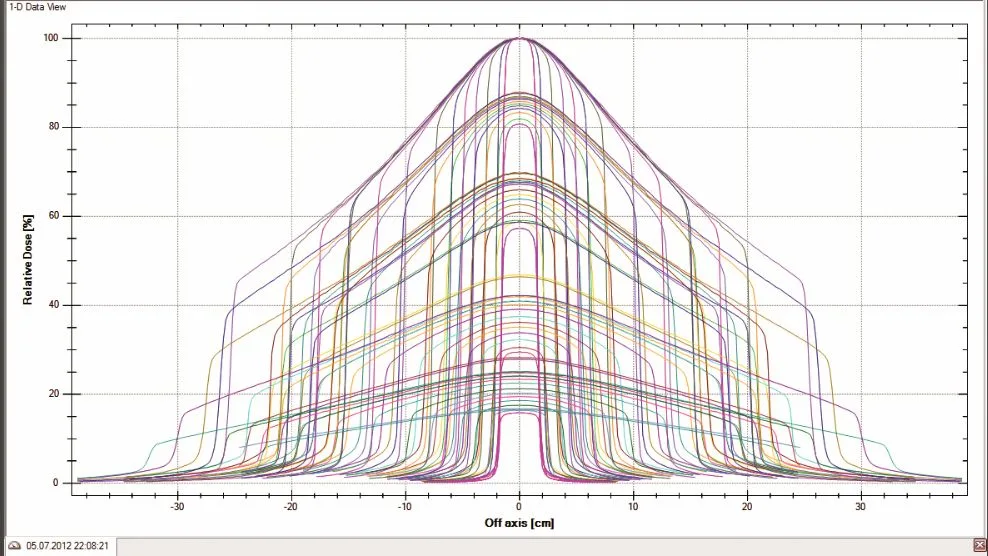

- Fastest, most accurate, most reliable machine commissioning & routine QA
- Quality beam scanning is essential for accurate treatment planning and delivery. Blue Phantom², paired with myQA Accept scanning software, stands as the premier water phantom solution for Radiation Therapy (RT) beam scanning. Its unique design enables faster and more precise commissioning of RT treatment systems, which is crucial for ensuring safer patient treatments. The latest Blue Phantom² is based on our 50+ years of experience with providing high quality dosimetry equipment and services to more than 4,000 satisfied water phantom users worldwide.
