Blue Phantom^COMPACT
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy
Blue Phantom^COMPACT is a high-end water phantom with smaller dimensions and minimized weight for easy transport, including between satellite hospitals.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/bluephantomcompact/Blue_Phantom_COMPACT_Br_E_RevX_0726.pdf
- Used for Workflow
- Commissioning and Annual QA RT

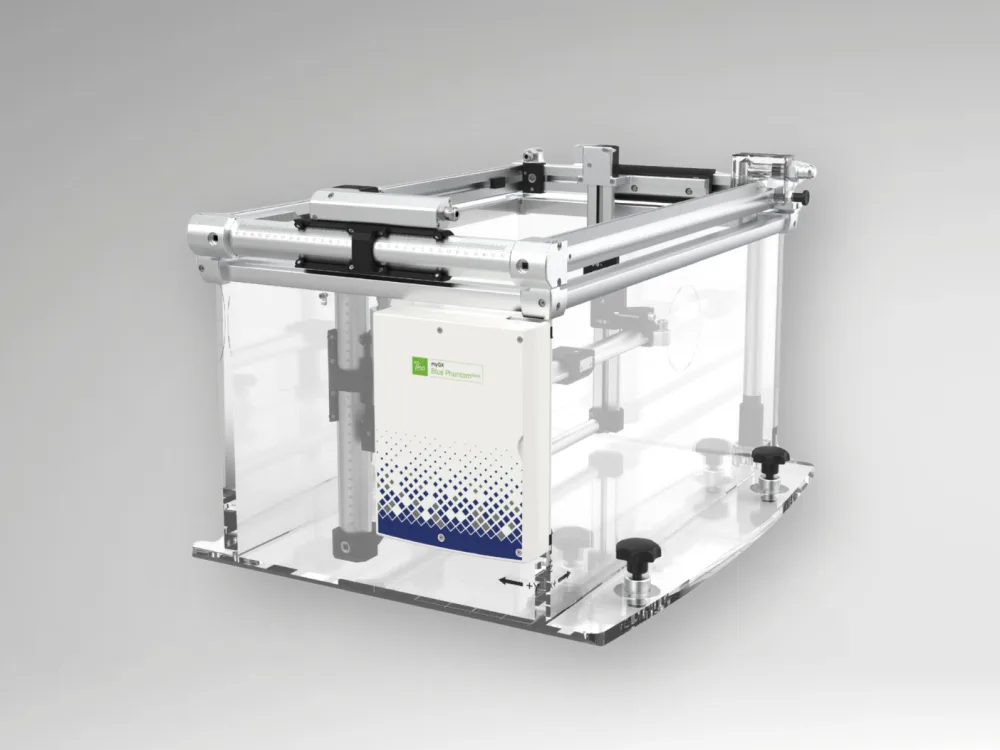

- Blue Phantom COMPACT
- Blue Phantom COMPACT Scanning area in water:: 478 x 410 mm (X/Z) Speed (max.):: 25 mm/s (scanning) Position accuracy:: ± 0.1 mm Position reproducibility:: ± 0.1 mm Wall material:: 15 mm PMMA Water volume:: 116 l (approx.) Outer dimensions:: 645 x 407 x 550 mm (LxWxH) Weight (with water):: 36 kg (152 kg max.) Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.

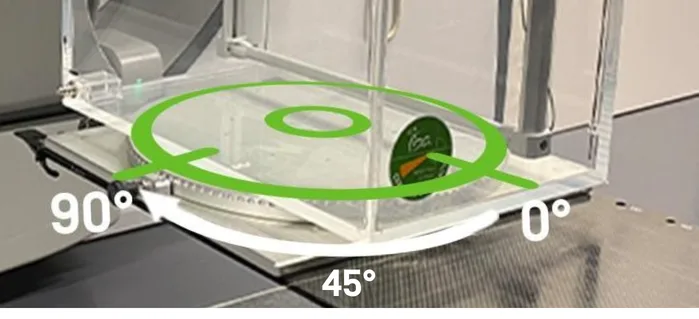

- Optional Rotating Table
- - Designed to enable the rotation of Blue Phantom^COMPACT and Blue Phantom Helix 2D water phantom systems - Easy rotation of the filled water phantom for in-plane and cross-plane measurements; avoids the need to drain the water phantom - Supports seamless manual rotation of the phantom and exact indexing lock fixation at 0°, 45°, 90°, etc. - Supports measurements inside the Varian Halcyon^®/Ethos™ bore and also suitable for use with conventional linac measurement sessions Watch the demonstration below
- myQA CCU-X electrometer
- myQA CCU-X electrometer Resolution:: 0.12 fA at 0.6 nA full scale : 12 fA at 60 nA full scale : 4.8 pA at 24 μA full scale Ranges:: 400 fA–600 pA, 6pA–60nA, 2.4nA–24μA Leakage:: <100 fA, typically < 40 fA Time constant:: 22 ms Bias voltage range:: ±50V – ±500V Common interface:: Ethernet cable and Wi-Fi Input:: Two independent reference class electrometers Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.
- Compatible with Machine/Modality/Application
- Bore-type linacs, C-arm linacs, TG106, TG51

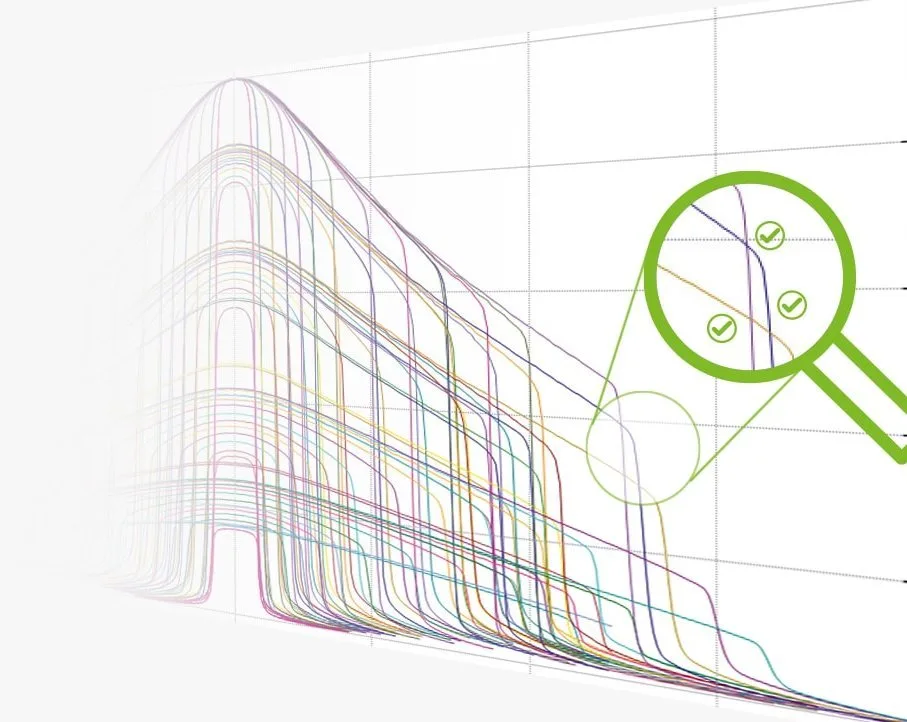

- Innovative & independent QA to maximize patient safety

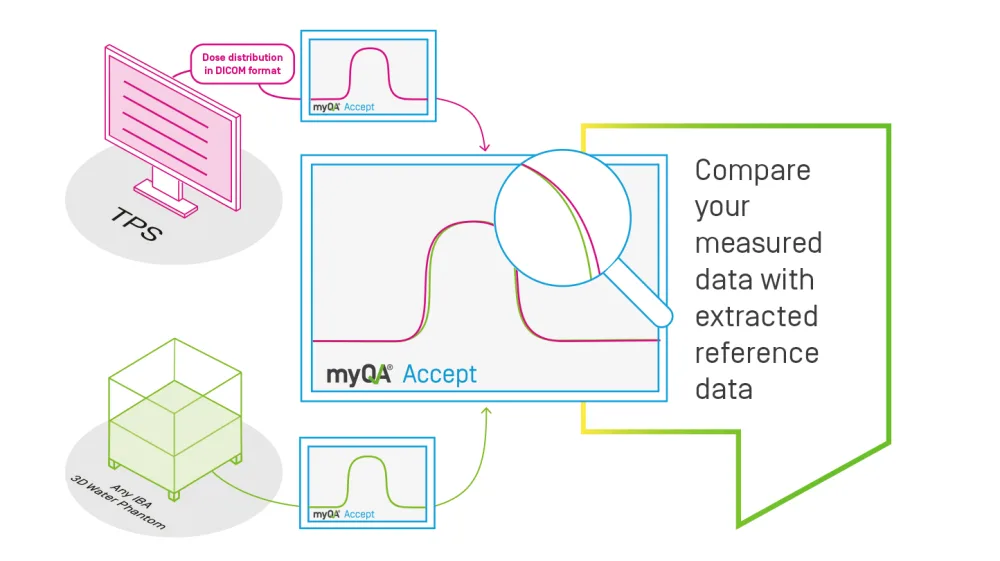

- Blue Phantom^COMPACT is powered by myQA Accept, our trusted and well-established software, providing the following benefits: - Validation of pre-commissioned machines - Pre-configured beam data validation - QA of your existing beam models (TPS QA) - Compatible with any TPS exporting in DICOM format Find out about myQA Accept here!
