IBA Dosimetry
Blue Phantom^Helix
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy

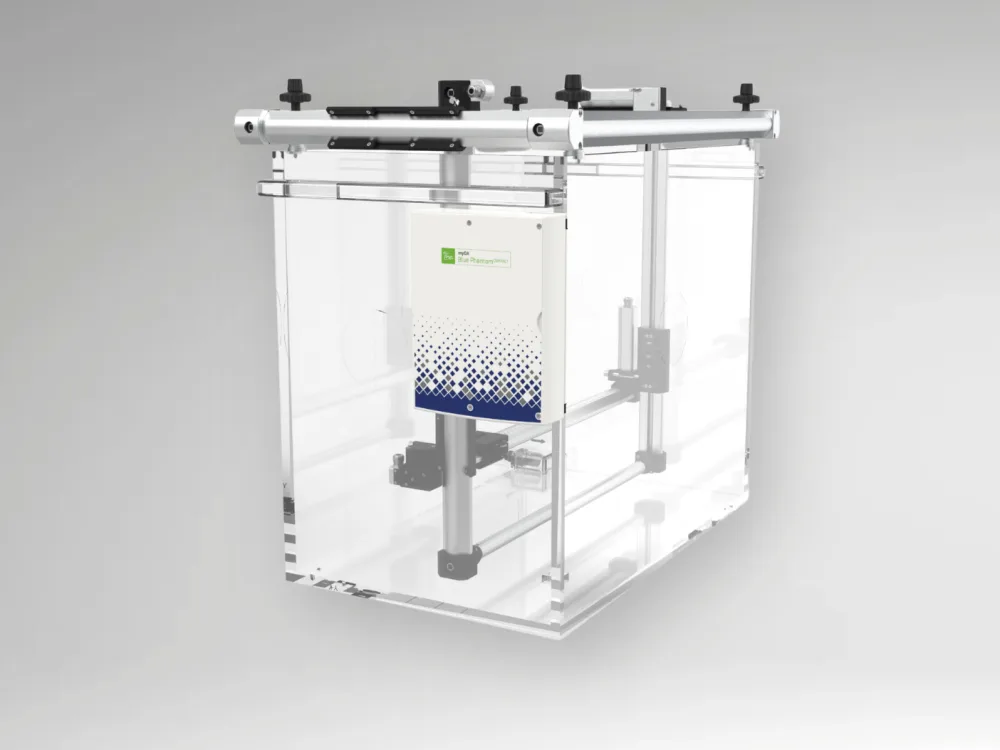

Blue Phantom^Helix is a 3D water phantom specifically designed to meet the requirements of the TomoTherapy^® and Radixact^® systems.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/Bluephantomhelix/Blue_Phantom_Helix_Br_E_RevX_0726_01.pdf
- Used for Workflow
- Commissioning and Annual QA RT
- Blue Phantom Helix
- Blue Phantom Helix Repositioning accuracy:: ±0.1 mm in 3 axes, calibrated and certified Exterior water tank dimensions (LxWxH):: 680 mm x 407 mm x 350 mm Scanning volume (LxWxH):: 520 mm x 140 mm x 200 mm Scanning speed:: positioning speed 50 mm/s, scanning speed 25 mm/s Detector positioning:: contactless sensor technology Position accuracy:: ± 0.1 mm Approximate volume:: 80 l Wall thickness / material:: 15 mm / acrylic Weight:: 27 kg Measurement modes:: step-by-step and continuous Leveling:: 3 points micro leveling system Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.
- myQA CCU-X electrometer
- myQA CCU-X electrometer Resolution:: 0.12 fA at 0.6 nA full scale : 12 fA at 60 nA full scale : 4.8 pA at 24 μA full scale Ranges:: 400 fA–600 pA, 6pA–60nA, 2.4nA–24μA Leakage:: <100 fA, typically < 40 fA Time constant:: 22 ms Bias voltage range:: ±50V – ±500V Common interface:: Ethernet cable and Wi-Fi Input:: Two independent reference class electrometers Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.
- 3D water phantom for faster scanning
- Building on the proven Blue Phantom^2, Blue Phantom^Helix facilitates fast and precise commissioning and QA work, specifically optimized for TomoTherapy^®. Achieve efficient measurements and analysis with myQA Accept. Designed for all 3D scanning needs, it ensures the fastest, most accurate, and most reliable results in your commissioning and QA tasks.
- Compatible with Machine/Modality/Application

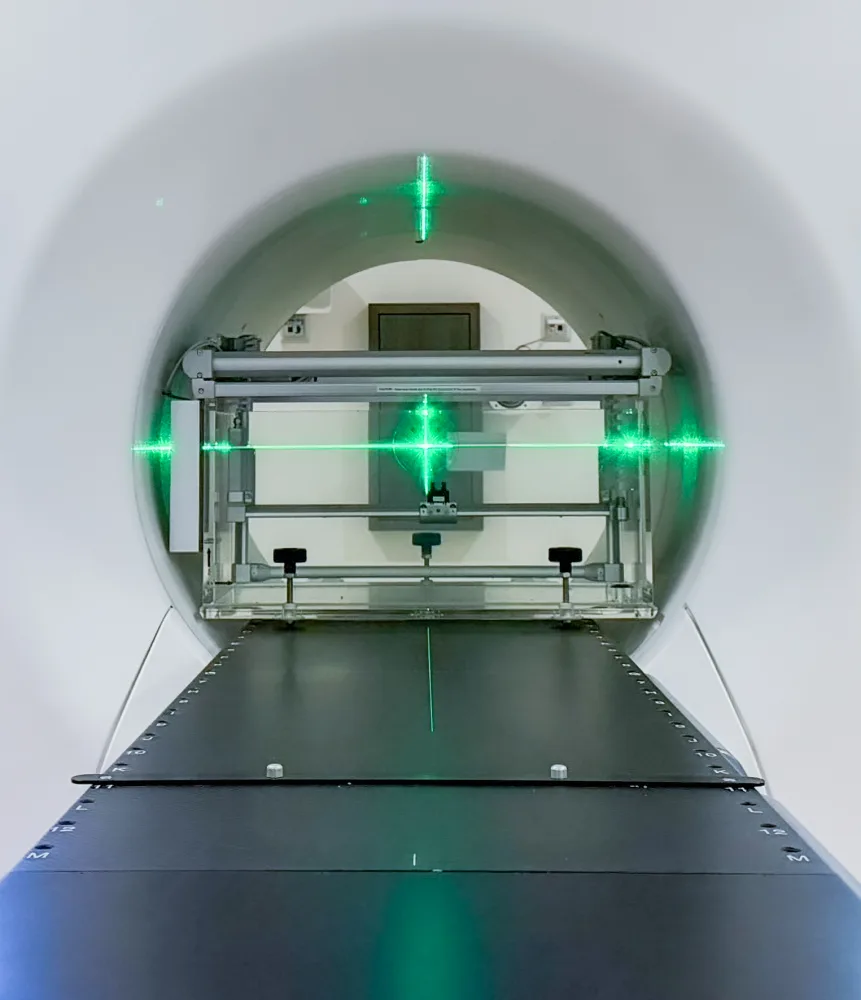

- Helical linac, TG106, TG148
- Innovative & independent QA to maximize patient safety

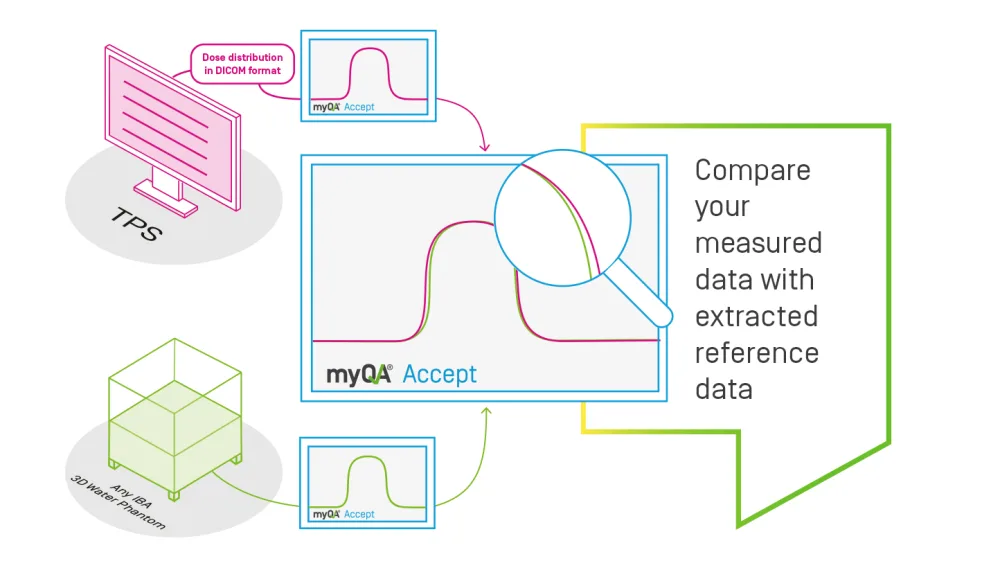

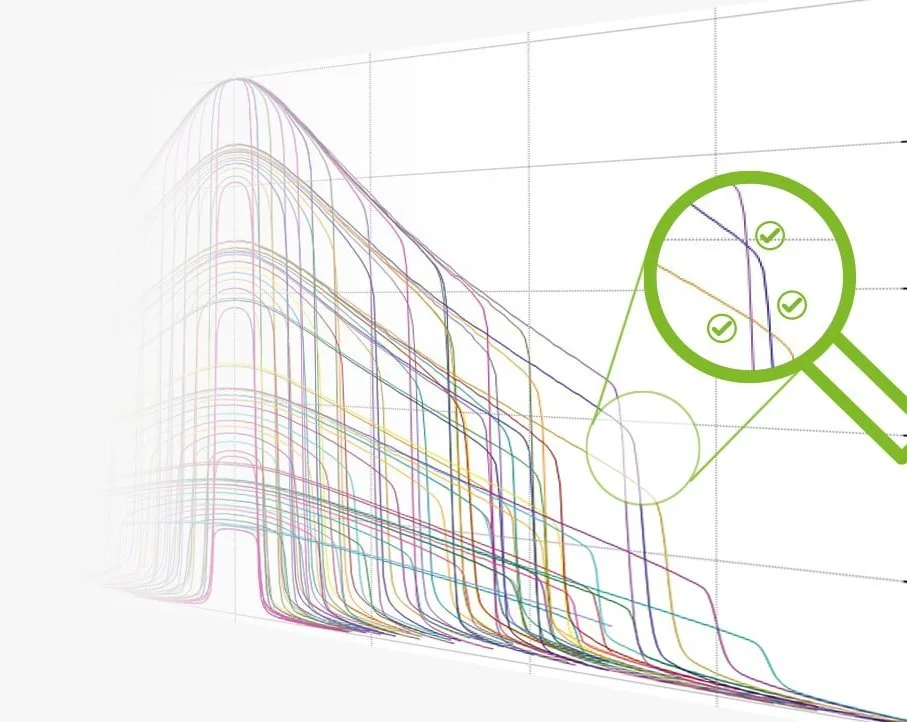

- Blue Phantom^Helix is powered by myQA Accept, our trusted and well-established software, providing the following benefits: - Validation of pre-commissioned machines - Pre-configured beam data validation - QA of your existing beam models (TPS QA) - Compatible with any TPS exporting in DICOM format Find out about myQA Accept here!
