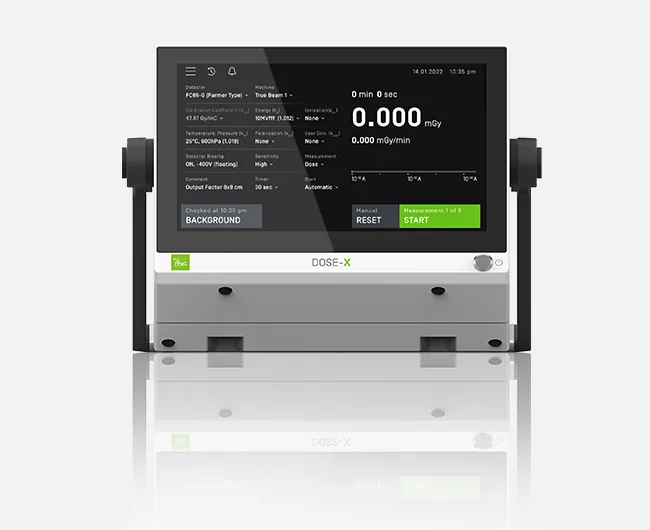

DOSE-X
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy
DOSE-X is a portable reference class electrometer exceeding IEC 60731 standards. Discover your perfect solution for conducting reference measurements according to DIN 6800, AAPM TG51, and IAEA TRS398.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/Dose-X/DOSE-X_Br_E_Rev7_0226.pdf
- Also listed under
- Particle Therapy
- Library Functions
- Library Functions Extended detector library Check source library Machine library
- Used for Workflow
- Commissioning PT, Commissioning and Annual QA RT, Annual QA PT, Monthly QA RT, Monthly QA PT
- Fully documented API
- Operate your DOSE-X remotely with API through your preferred software environment.
- Technical Specifications
- Technical Specifications Use: Ref Class IEC 60731 Channels: 1 Display: 10” HD Touch Languages: de, en, es, fr, it, pt, ru, jp, cn, kr Connectivity: Ethernet LAN 1 Gbit/s, Wi-Fi (802.11ac/b/g/n), USB 3.0 Host Dimensions (mm × mm × mm): 249.7 x 201.9 x 123.4 Weight: 4.6 kg Power supply: 100 - 240 V, 50/60 Hz Range (current): 400 fA … 24 µA Range (charge): From 24 pC to 65 nC per pulse at a repetition frequency of ≤ 400 Hz Resolution (current): 0.1 fA Resolution (charge): 0.1 fC Measurement modes: Manual, Automatic (beam triggered), Timed Repeatability: < ± 0.25 % (≤ ± 0.25 % IEC 60731) Long-term stability: ≤ ± 0.2 % (≤ ± 0.5 % over one year, IEC 60731) Response time: < 1.5 s Non-linearity: ≤ ± 0.25 % (≤ ± 0.5 %, IEC 67031) Zero drift: ≤ ± 0.25 % (≤ ± 0.5 %, IEC 60731) Bias voltage: ± 50 V … ± 500 V, ± 2 % Zeroing: 60 s (default) Configurations: TNC Triax, BNC Triax (Adapter)
- Correction factors supported
- Correction factors supported Supports all correction factors listed below with the possibility of cross-calibration: Factor: Correcting for kQ: Response at beam quality kTp: Air density (temperature and pressure) kS: Incomplete charge collection due to recombination kpol: Change in polarity kuser: User defined additional correction

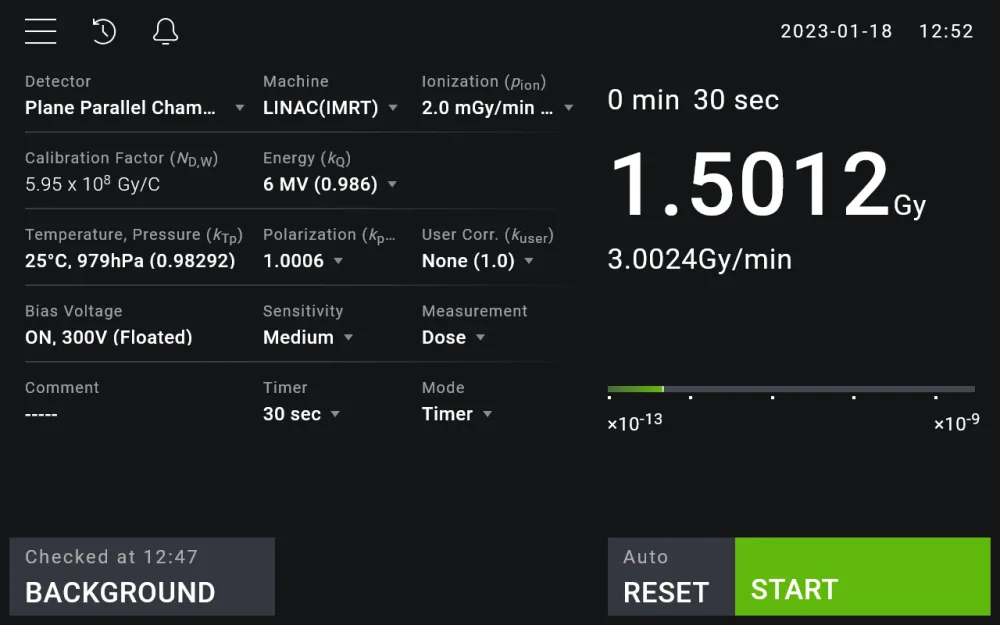

- Intuitive 10-inch HD touch screen
- - Easy and efficient overview on one screen - Workflow-optimized next-generation user interface
- Compatible with Machine/Modality/Application
- Carbon Compatible, C-arm linacs, Robotic linac, Cyclotrons, Bore-type linacs, IMRT / VMAT, Proton Therapy, Helical linac, Small Field Dosimetry, Synchro-Cyclotron, Ultra-high Dose Rate (UHDR), TG106, TG142, TG148, TG224, TG51
- Meaningful innovation for your absolute dose measurements

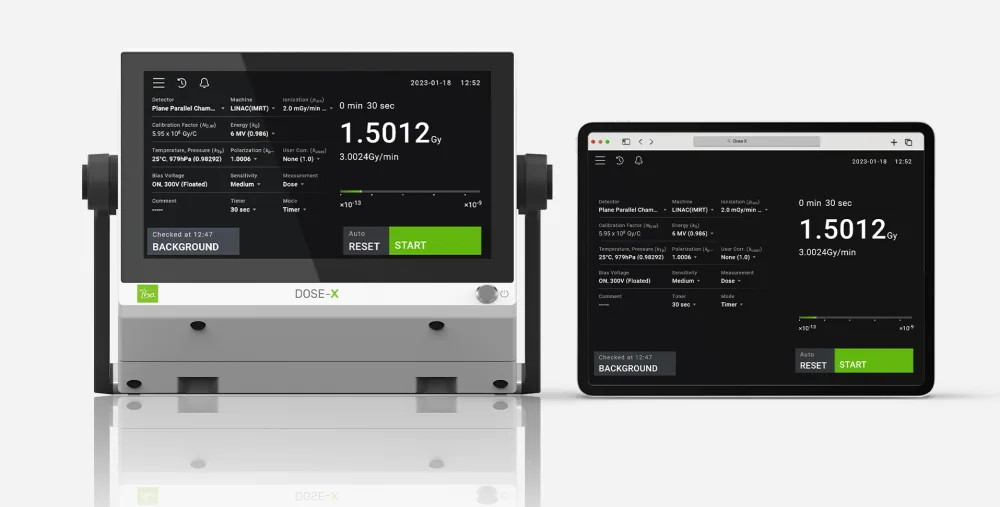

- With advanced precision technology, user-friendly functionality, and an intuitive interface, DOSE-X delivers accurate measurements for all your absolute dosimetry requirements. Enjoy convenient automation, streamlined workflows, and increased flexibility to enhance your time-saving and efficient measurement protocols. DOSE-X offers you: - Stand-alone and remote operation (browser based) with full functionality - Intuitive 10-inch HD touch screen - API allowing you to control all basic and advanced functions of the DOSE-X - Multi language support - Flash compatible - Supports your TG-51 QA protocols
