IBA Dosimetry

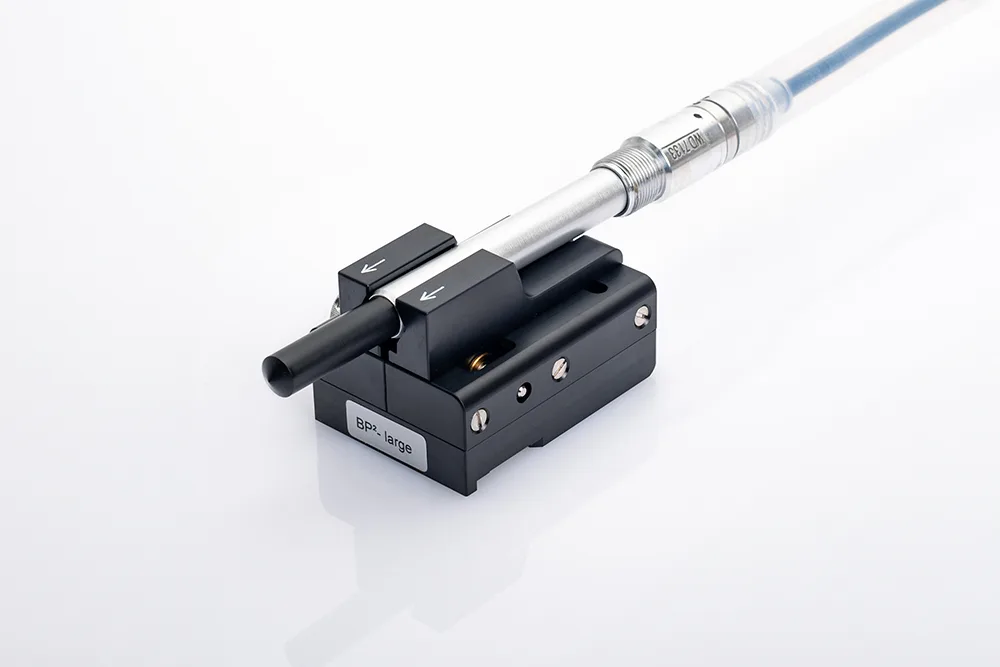

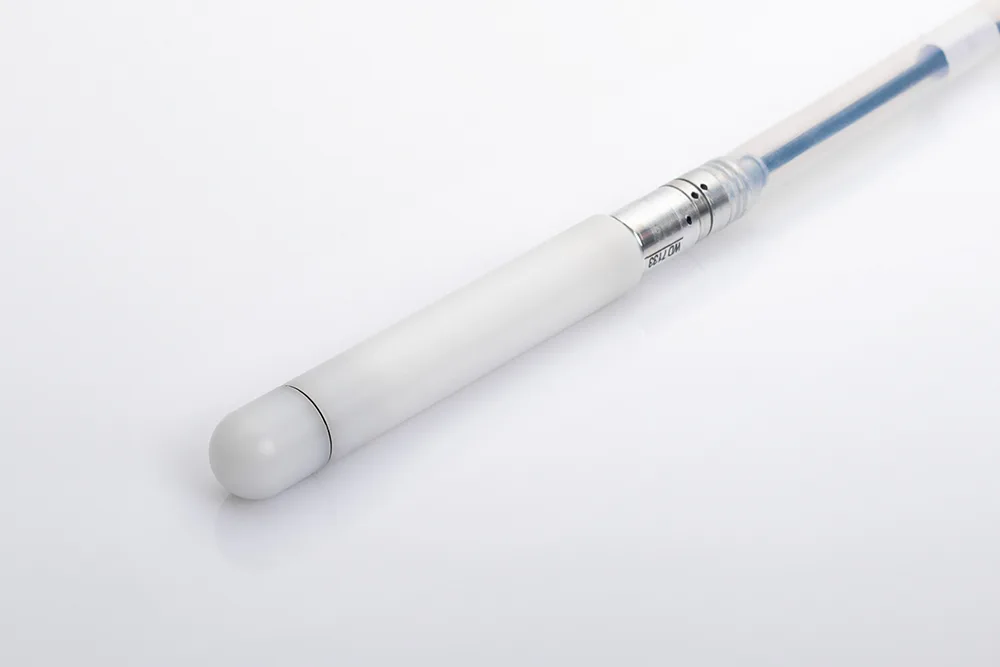

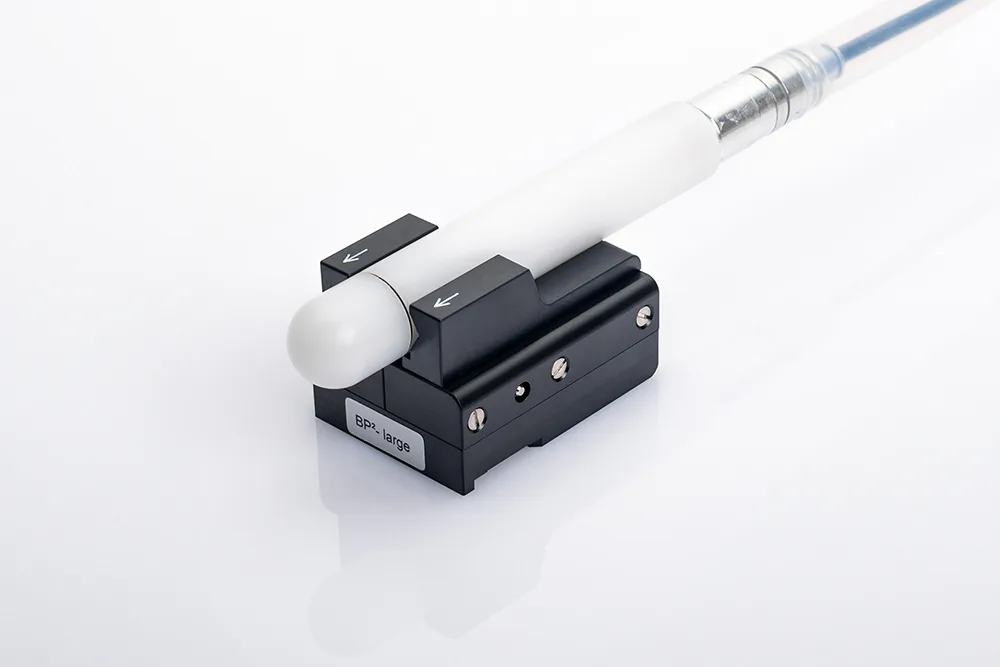

FC65-G / FC65-P Ionization Chambers
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy
Farmer-type ionization chambers are used for absolute dosimetry of photon, electron, and proton beams, as well as depth dose and field profile measurements.
The FC65-G chamber is for reference dosimetry and calibrations, while FC65-P is for daily machine checks and routine applications. These chambers work with medical accelerators, X-ray beams (≥70 kV), gamma radiation (¹³⁷Cs, ⁶⁰Co), and proton beams (50–250 MeV). Also, FC65-G is MRI linac compatible.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/CC04/Detector_Brochure.pdf
- Inner dimensions
- Inner dimensions - Sensitive volume (nominal): 0.65 cm^3 - Total length: 23.0 mm - Total cylinder length: 20.0 mm - Inner diameter of outer electrode: 6.2 mm - Diameter of inner electrode: 1.0 mm - Length of inner electrode: 20.5 mm - Wall thickness of outer electrode: 0.4 mm
- Also listed under
- Particle Therapy
- Used for Workflow
- Commissioning PT, Monthly QA RT, Annual QA PT, Commissioning and Annual QA RT, Monthly QA PT, Detectors RT
- Operational characteristics
- Operational characteristics - Polarizing voltage: ±300 V (max. ±500 V) - Recommended pre-irradiation: 5 Gy - Typical sensitivity: 21 nC/Gy - Guard potential: ±300 V (max. ±500 V) - Temperature range: 15 °C to 35 °C - Relative humidity range: 20 % to 80 %
- Compatible with Machine/Modality/Application
- TG106
