IBA Dosimetry
myQA Accept
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy

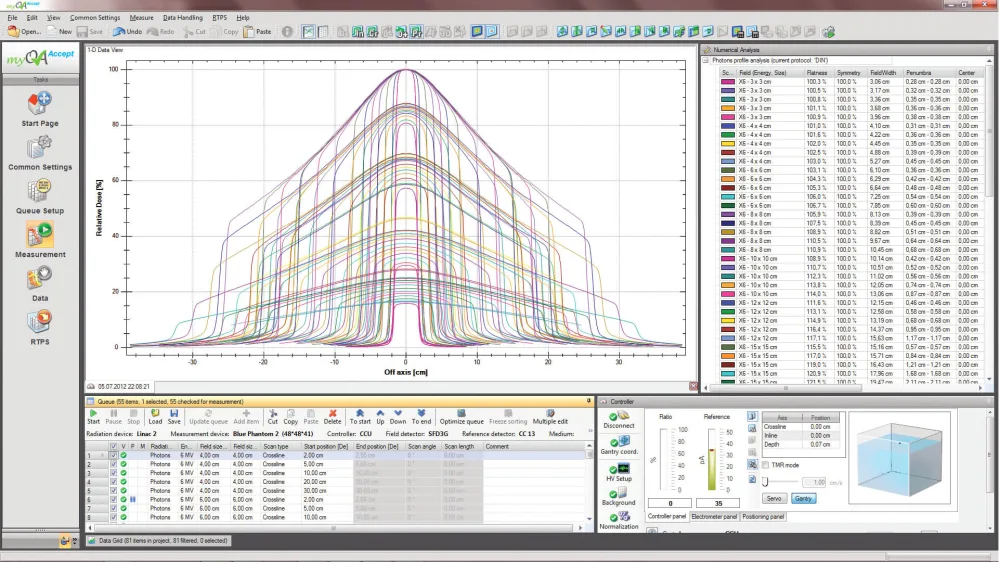

Our fully workflow-oriented, menu-guided software is designed to enhance your efficiency and significantly reduce the commissioning and QA time for your linac.
- Details

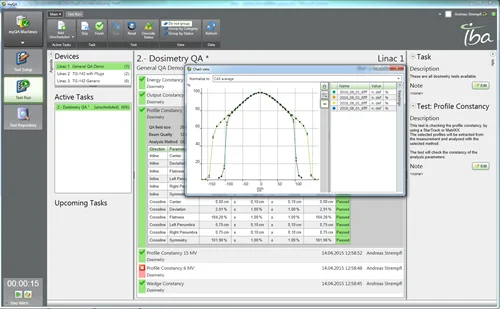

- - Fastest scanning with optimal resolution through scanning speed adaptation - Automatic queue generation - All your QA data connected via one central platform, providing you with full control and accessibility - Connect your scan data and use them as your individual “gold standard” reference (e.g., for Machine QA) - Use your commissioning scans as a reference with your other myQA applications (e.g., for Machine QA)
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/smartscan/Integrated_Beam_Scanning.pdf

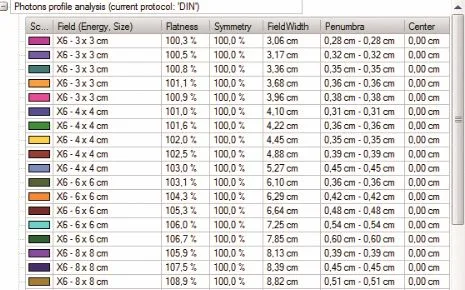

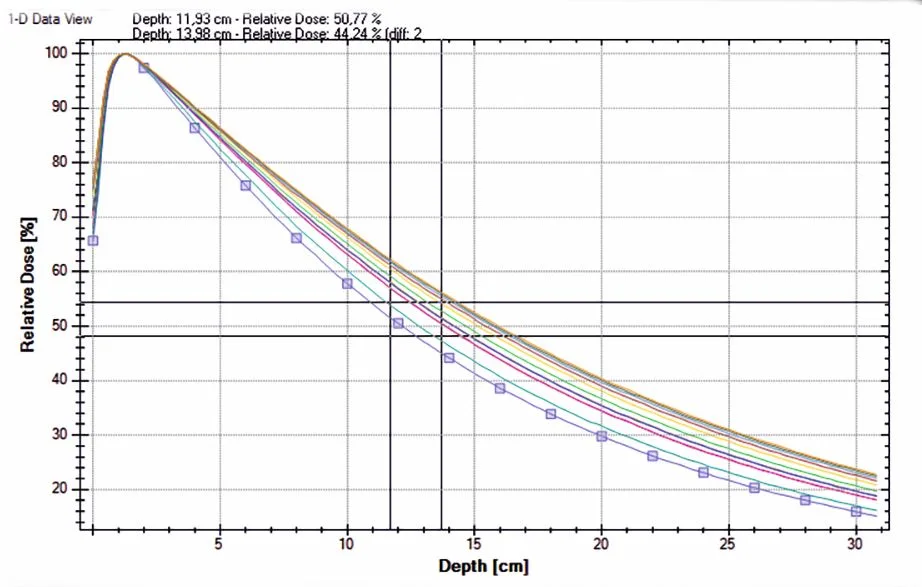

- Data analysis
- Data analysis - Accurate data analysis via standard and customizable protocols - 1D gamma analysis tolerances - Overlaying profiles for quantitative comparison - Library of mathematical smoothing and interpolation functions - Fast creation and export of data tables (PDD, TMR, OAR, etc.)
- Data handling
- Data handling - Easy data handling with advanced filtering and sorting - Fast creation and data export to all major TPS - Copy & paste to other applications, e.g., Microsoft Excel - Exchange data with other IBA Dosimetry applications - Convenient reporting
- Data acquisition

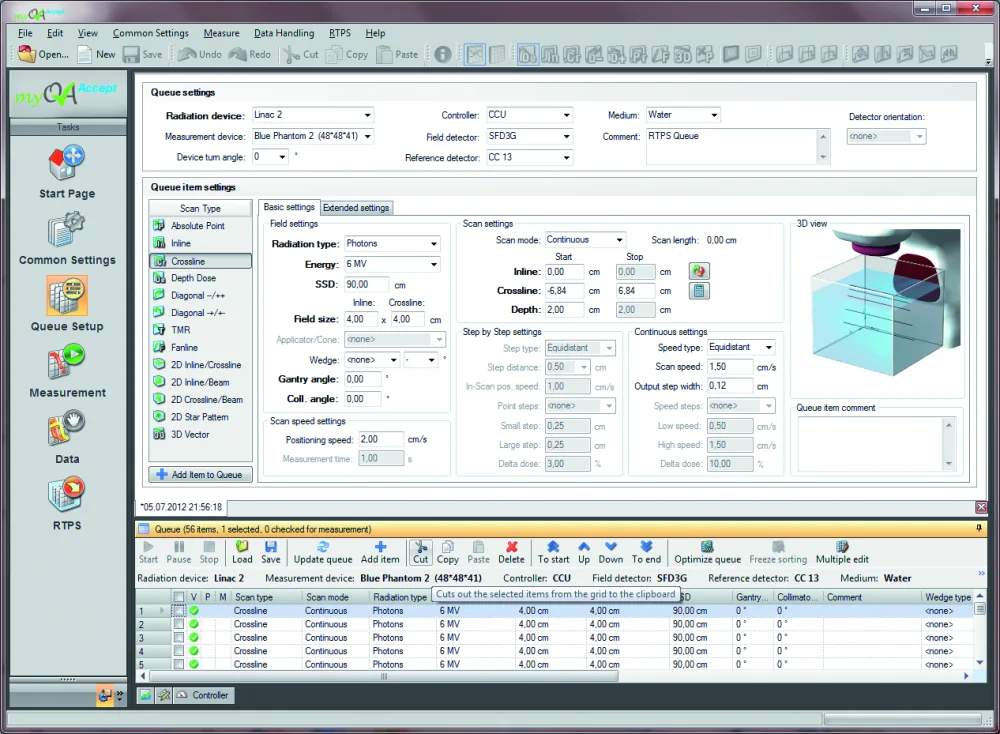

- Data acquisition - Adjustable scanning parameters for optimized measurement - 1D, 2D and 3D graphical and geometrical visualization of detector position during scanning - Automatic scanning speed adaptation: Fastest scanning with optimal resolution through scanning speed adaptation Adaptive Scan Optimization (ASO) - Adapted scanning speed for the different profile segments - Optimized for accuracy in the penumbra area - Fast continuous scanning where fewer data points are sufficient
- Also listed under
- Particle Therapy
- Used for Workflow
- Commissioning PT, Annual QA PT, Commissioning and Annual QA RT, Monthly QA RT, Monthly QA PT

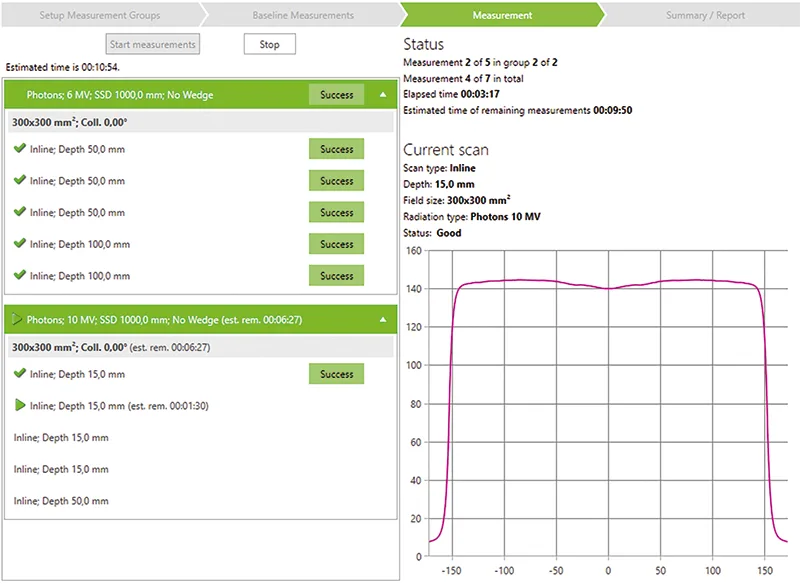

- Beam scanning. Guided.

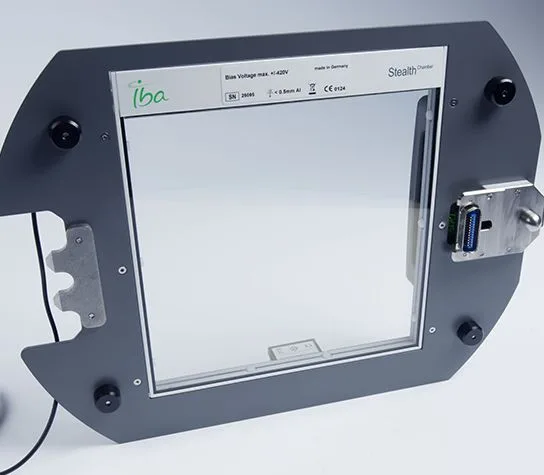

- Beam scanning. Guided. SMARTSCAN^TM guides the user screen by screen through the scanning workflow, from preparation to execution. To minimize manual changes, SMARTSCAN^TM groups all tasks and suggests settings for the linac. As soon as the Stealth Chamber detects the beam, SMARTSCAN^TM automatically performs the next group of measurements. Similarly, the user is guided whenever a change of detector or other setup task is required.
- Beam scanning. Automated.

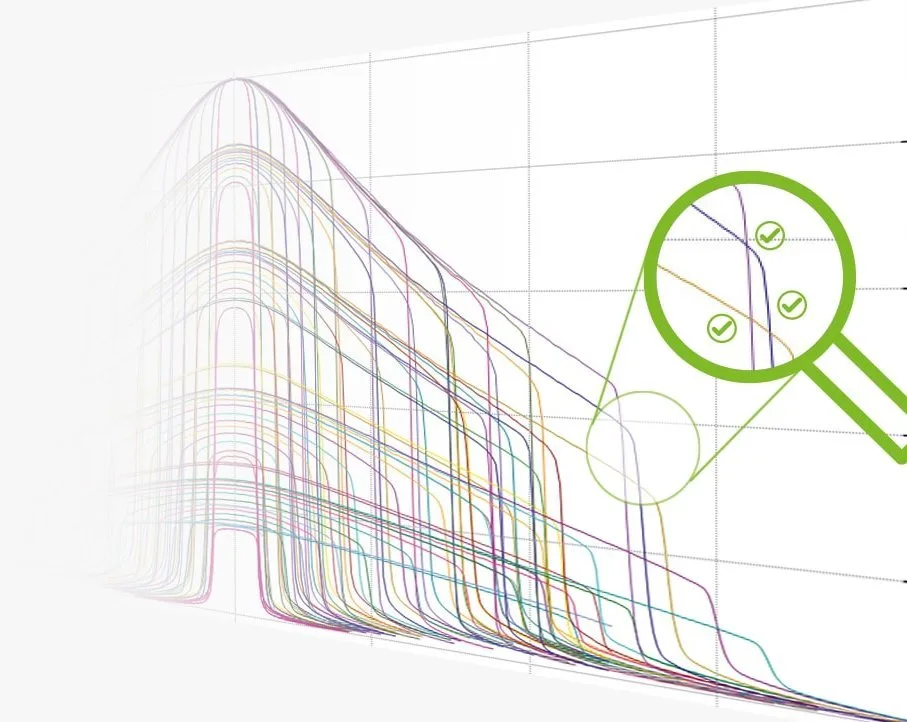

- Beam scanning. Automated. SMARTSCAN^TM automates most of the repetitive tasks while executing the beam scan queue. Every beam profile and depth dose curve [FF/FFF] measurement is instantly checked for flatness, beam symmetry, and signal noise. If the set limit values are exceeded, SMARTSCAN^TM informs the user immediately. After three consecutive poor measurements, SMARTSCAN^TM pauses and suggests a setup check; otherwise, further measurements would be wasted. In addition, SMARTSCAN^TM repeatedly checks background noise and performs electrometer normalizations for every field.

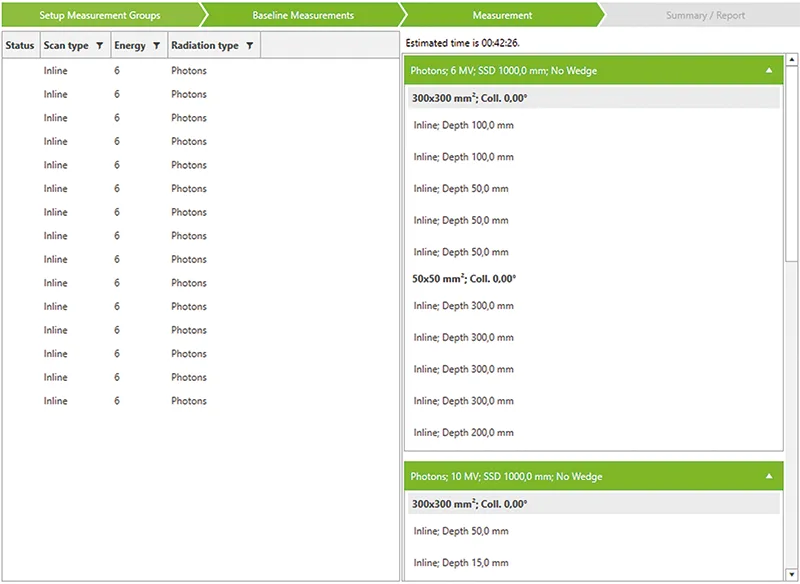

- Automated queue generation
- Automated queue generation - Fast & automatic data acquisition with predefined queues for all major TPS vendors - Save time with the smart sorting algorithm for optimized scan sequences - Maximize scanning efficiency with advanced queue sorting, prioritizing, and multiple queue editing - Intuitive setup of user-specific queues - Automated data export for TPS beam modeling
- Meaningful innovation for your clinic

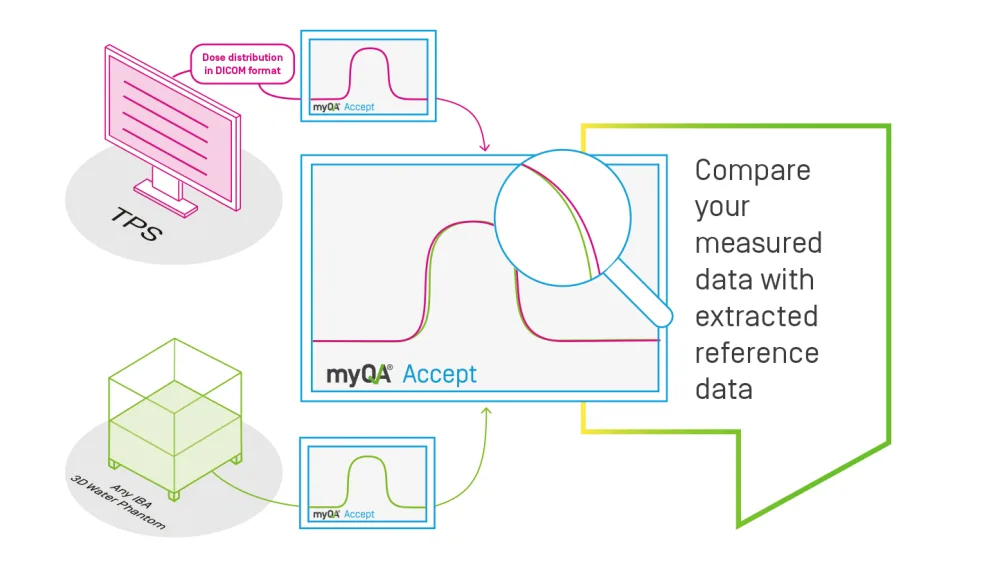

- We are the first to market with features for: - Validation of pre-commissioned machines - Pre-configured beam data validation - QA of your existing beam models (TPS QA) - Compatible with any TPS exporting in DICOM format
- Annual QA made easy, fast and accurate.

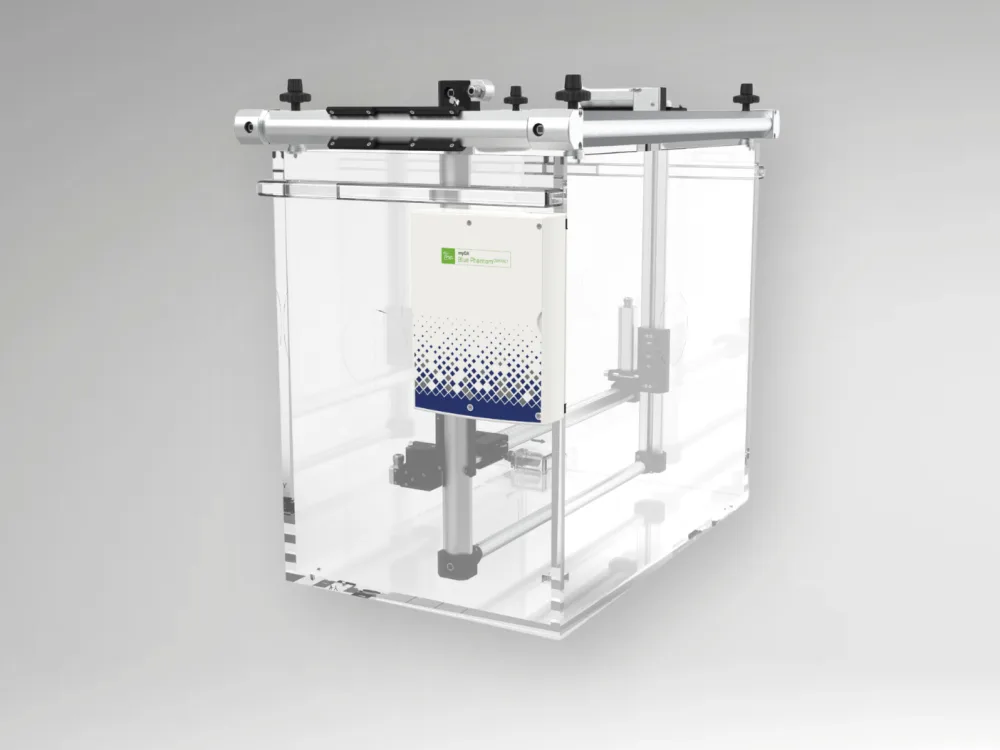

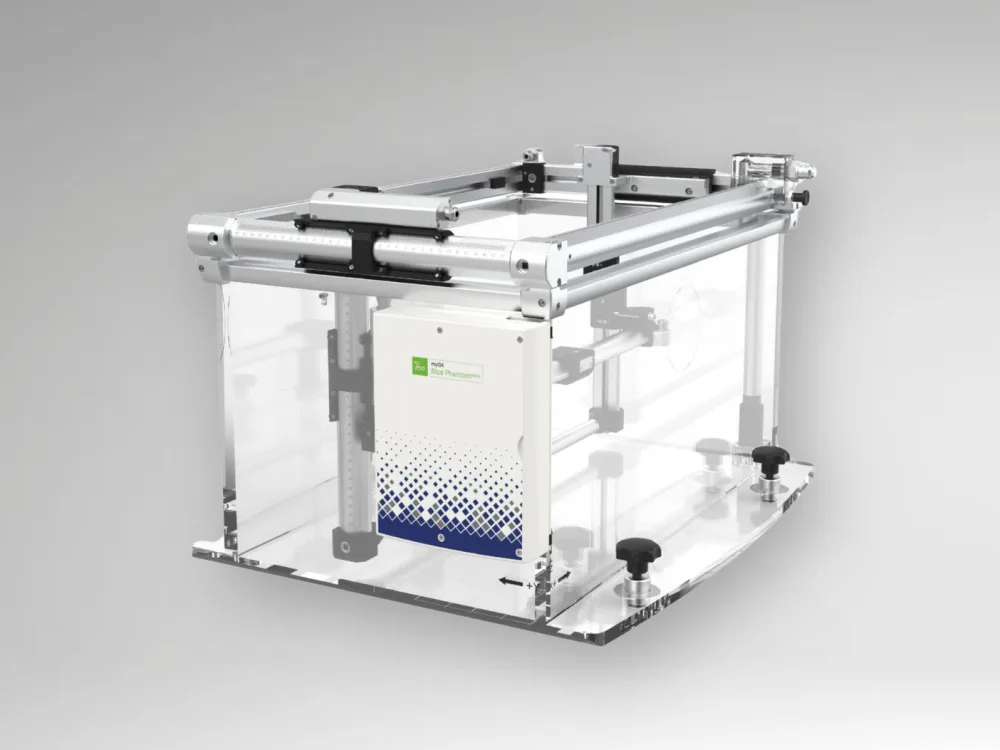

- Annual QA made easy, fast and accurate. SMARTSCAN^TM overcomes the typical challenges and constraints of using standard water phantoms for annual QA. Instead, annual QA is converted into an easy and fast process using SMARTSCAN^TM. - Standardized and automated annual QA workflow. - Easy comparison from year to year / between machines and clinics. - Fast system setup in 12 minutes. - Automated parameter settings for each scan. - Scan automation and user guidance minimize human interaction and save time. - No need for manual data analysis at the end of your scanning. - Superior quality of your annual QA data - Automated. - Sub-millimeter setup accuracy through user validation and automated software checks. - Automated scan validation checks ensure you measure the correct scans. - Instant quality checks of each scan result in highest data quality. - Automated data comparison vs. your protocol / reference data. - Depth dose scans enable annual QA accuracy (vs. 2D detector QA). Due to its ease of use and accuracy, SMARTSCAN^TM is the ideal solution and frequently used for annual QA!
- Compatible with Machine/Modality/Application
- Carbon Compatible, C-arm linacs, Robotic linac, Cyclotrons, Bore-type linacs, Proton Therapy, Helical linac, Small Field Dosimetry, Synchro-Cyclotron, TG106, TG135, TG148, TG224, TG51
