IBA Dosimetry
myQA Blue Phantom³
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy

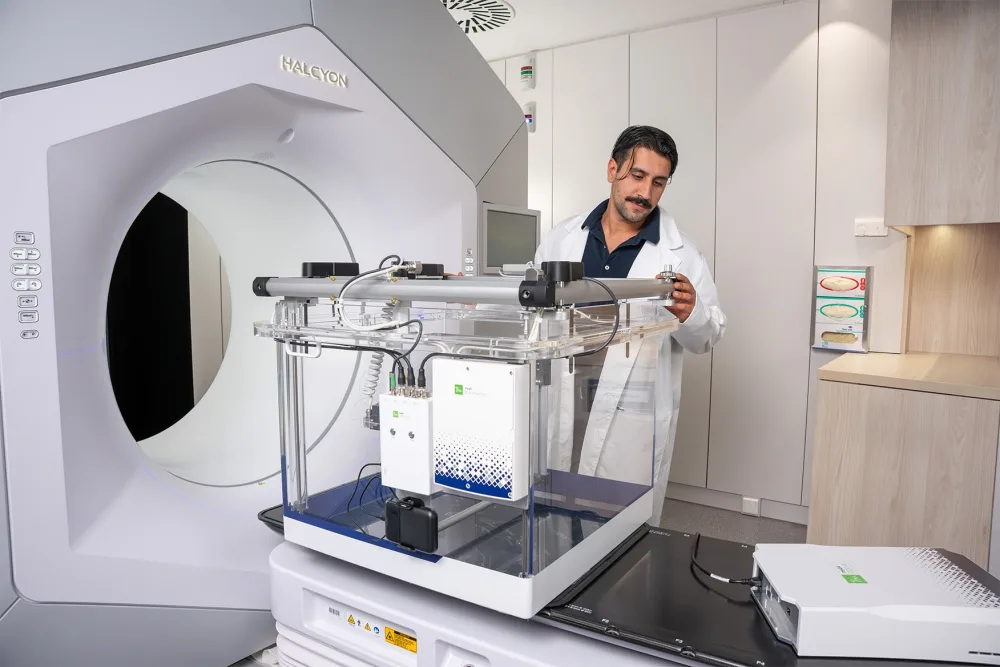

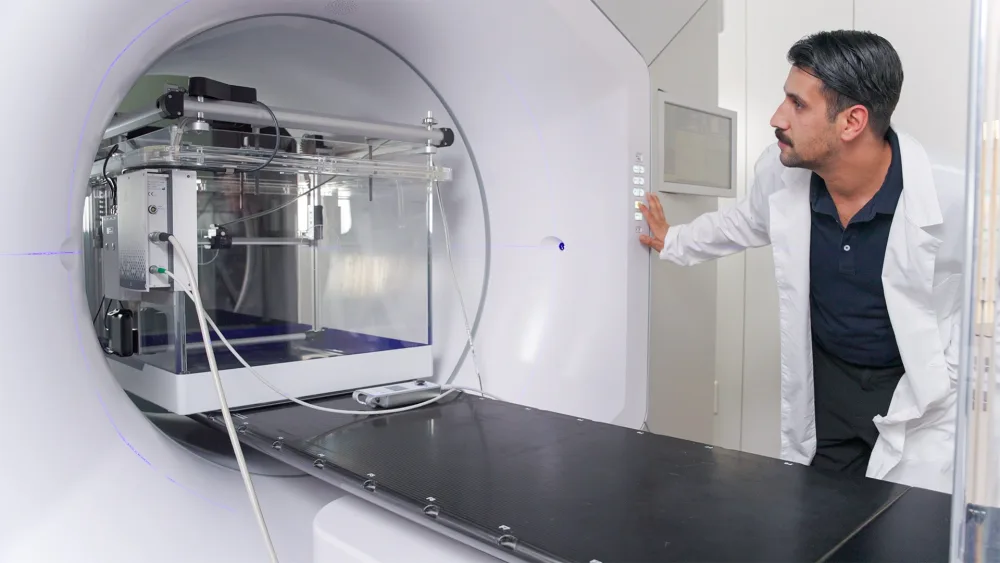

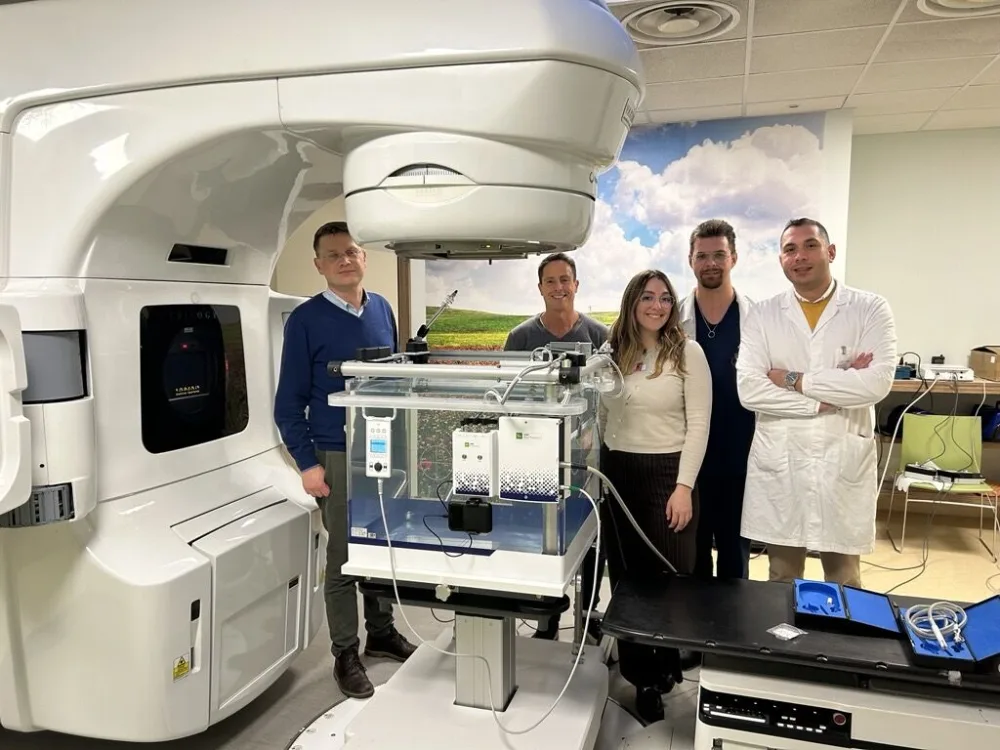

Suitable for C-arm, O-shape and robotic linacs
- Details

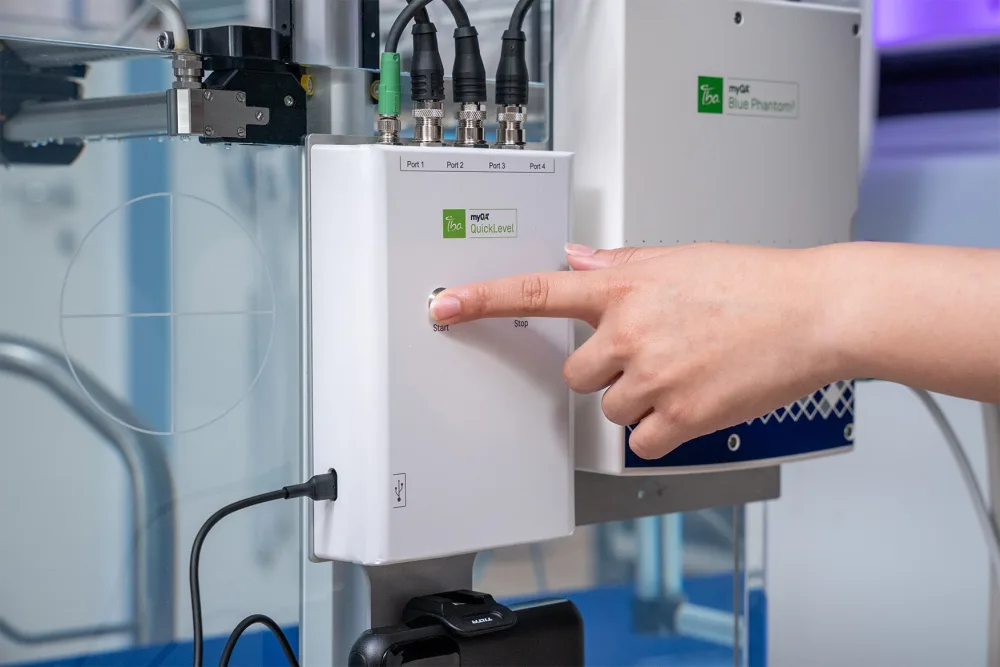

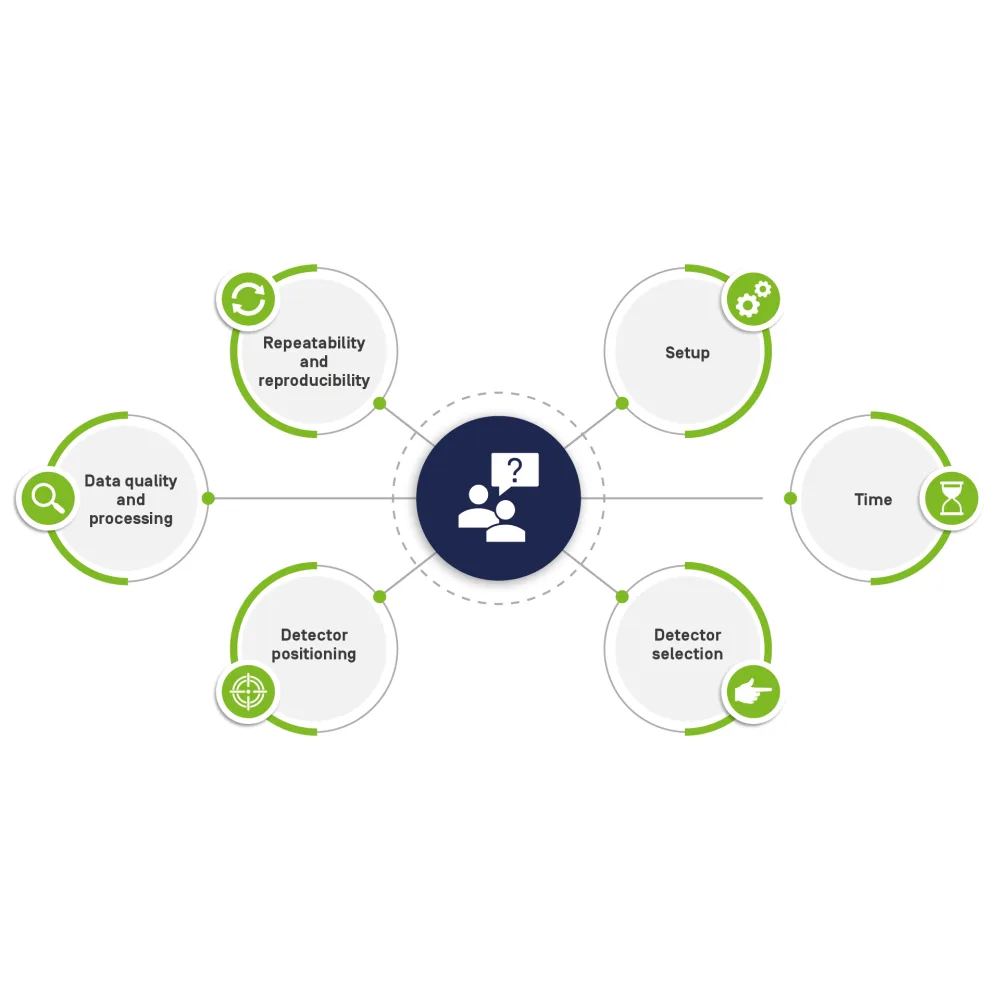

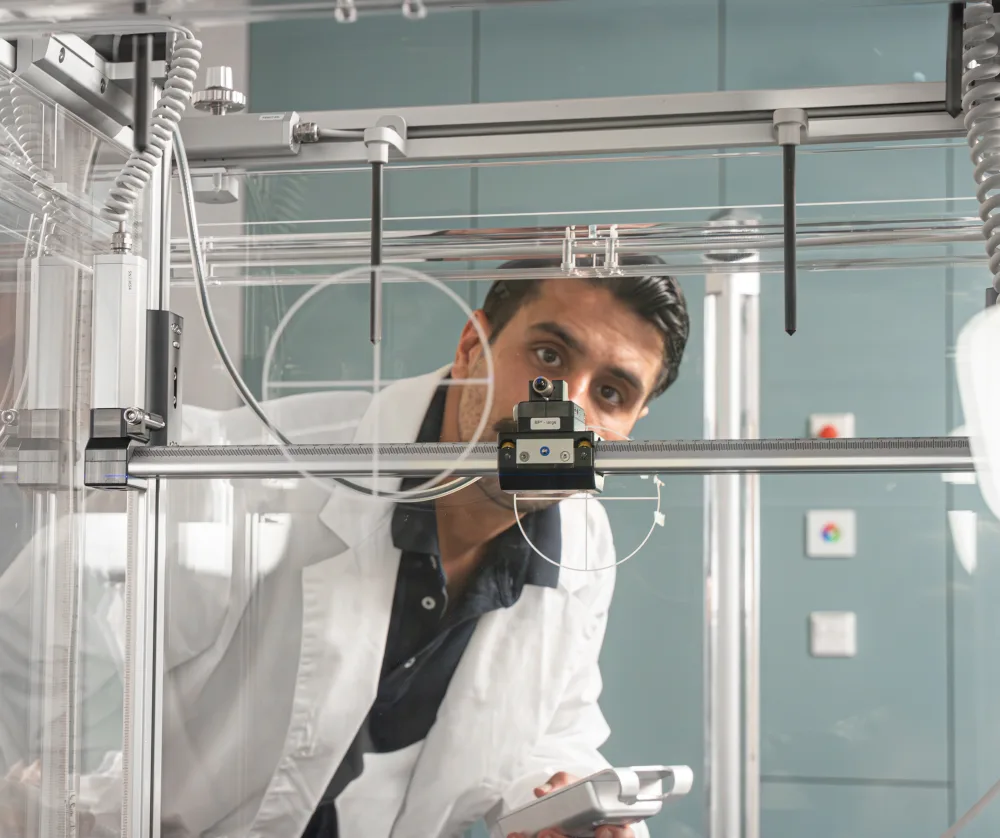

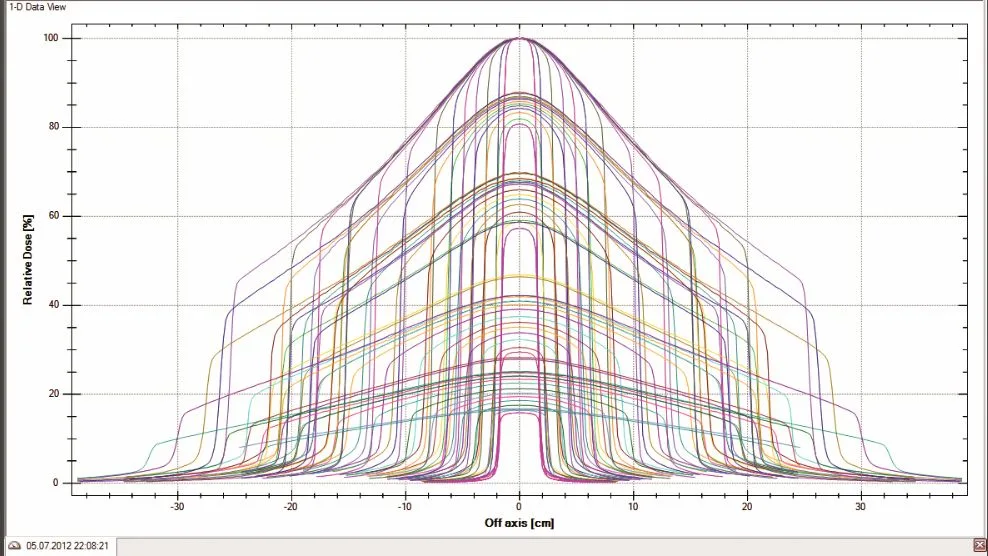

- Data Quality & Processing: High-resolution acquisition and magneto-strictive technology minimize noise and ensure accurate PDDs and profiles — reducing the need for repeat scans and manual corrections. Detector Positioning: Simplified detector mounting and freedom of choice with chamber holder fully independent from vendors for better focus on careful alignment checks. Detector Selection: Guided detector recommendations eliminate guesswork and reduce setup errors — especially during commissioning or when switching detectors. Repeatability & Reproducibility: User-independent autoleveling combined with controlled motion enables reproducible results over time, reducing inter-user variability and ensuring long-term QA consistency. Setup: Automatic leveling ensures accurate alignment — regardless of who performs the setup. Ready to measure in under 30 seconds, with no additional equipment required. Time: Optimized scan speed and streamlined workflows reduce measurement time without increasing noise or compromising accuracy. Fewer manual adjustments. Fewer repeated scans. More predictable commissioning timelines.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/BluePhantom3/Brochures_and_Flyers/BP3_-_Final_Brochure.pdf
- Used for Workflow
- Commissioning and Annual QA RT
- CCU-X electrometer

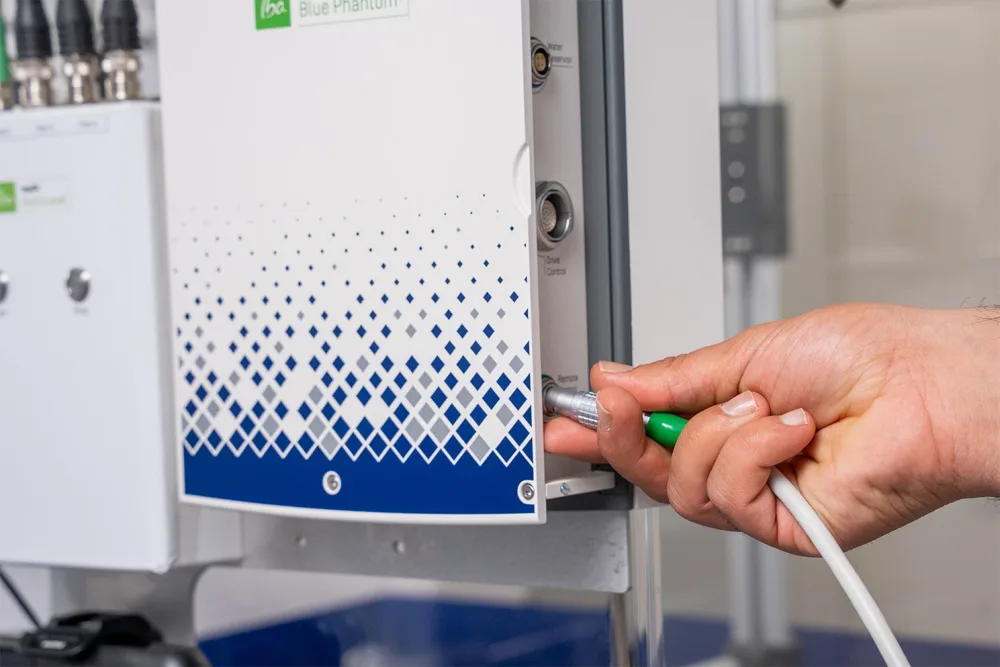

- CCU-X electrometer Input:: two independent reference class electrometers Bias voltage:: ±50V – ±500V, ±2% Leakage:: <100 fA, typically < 40 fA Ranges:: 400 fA–600 pA, 6pA–60nA, 2.4nA–24µA Resolution:: ■ 0.12 fA at 0.6 nA full scale ■ 12 fA at 60 nA full scale ■ 4.8 pA at 24 µA full scale Time constant: 22 ms Ethernet cable and Wi-Fi: Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.
- Compatible with Machine/Modality/Application
- C-arm linacs, Bore-type linacs, Robotic linac, TG106, TG135, TG148, TG224, TG51
- Blue Phantom³ Water Reservoir with accessory storage
- Blue Phantom³ Water Reservoir with accessory storage Pump capacity:: Max. 25l/min. Pump:: DC motor 24V, 750W, bi-directional Tank volume:: 208 liters Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.

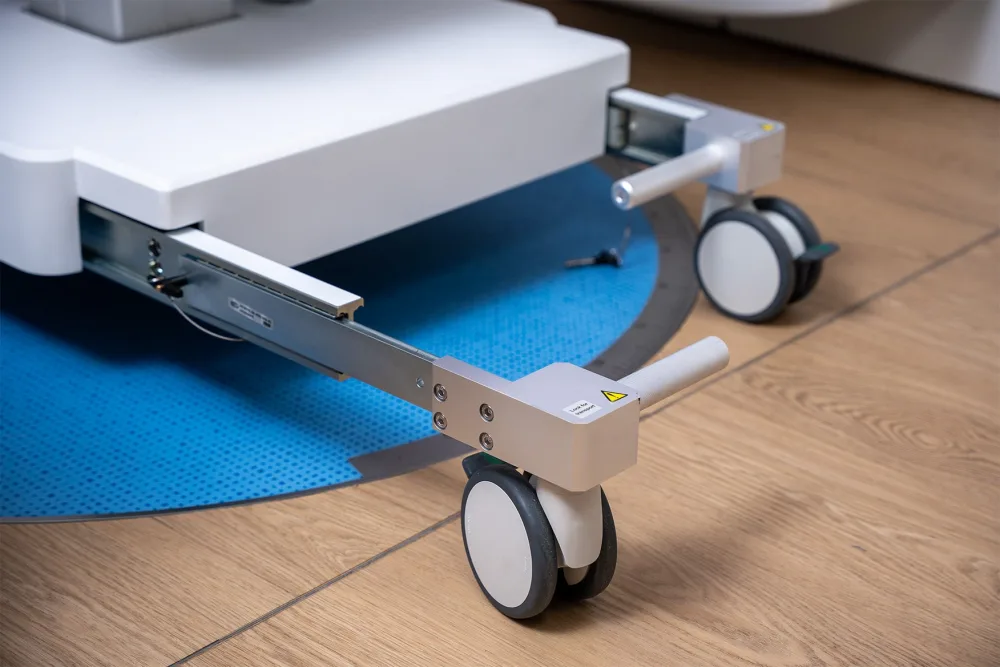

- Blue Phantom³ Lift Table telescopic legs extendable up to 180cm
- Blue Phantom³ Lift Table telescopic legs extendable up to 180cm Maximum load capacity:: 250kg Vertical range/speed:: 660–1180mm / 13mm/sec Table size:: 680mm×680mm, thickness 19mm Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.
- Blue Phantom³ 3D Water Phantom slanted bottom micro-leveling frame
- Blue Phantom³ 3D Water Phantom slanted bottom micro-leveling frame Scanning volume (L×W×H):: 478mm×478mm×410mm Position accuracy/reproducibility:: +/- 0.1mm/0.1mm Position resolution:: 0.1mm Scanning speed:: 25mm/sec Volume (approx.):: 200 liters Accuracy of auto-leveling:: +/- 0.025 degrees Technical data is subject to change without prior notice. Depicted product images and specifications may differ from the actual scope of delivery.
