myQA Daily
Art. N°
Hover to zoom · click to enlarge
Radiation Therapy
Start your day using software that's as simple and fast as your weather app.
myQA Daily is the solution for fast, easy, and high-quality daily QA.
Also covers your multi-site requirements.
- Brochure
- /fileadmin/user_upload/products/02_radiation_therapy/myQA_Daily/myQA-Daily_Brochure_Rev.2_0920-E_web.pdf
- Rotating Holder

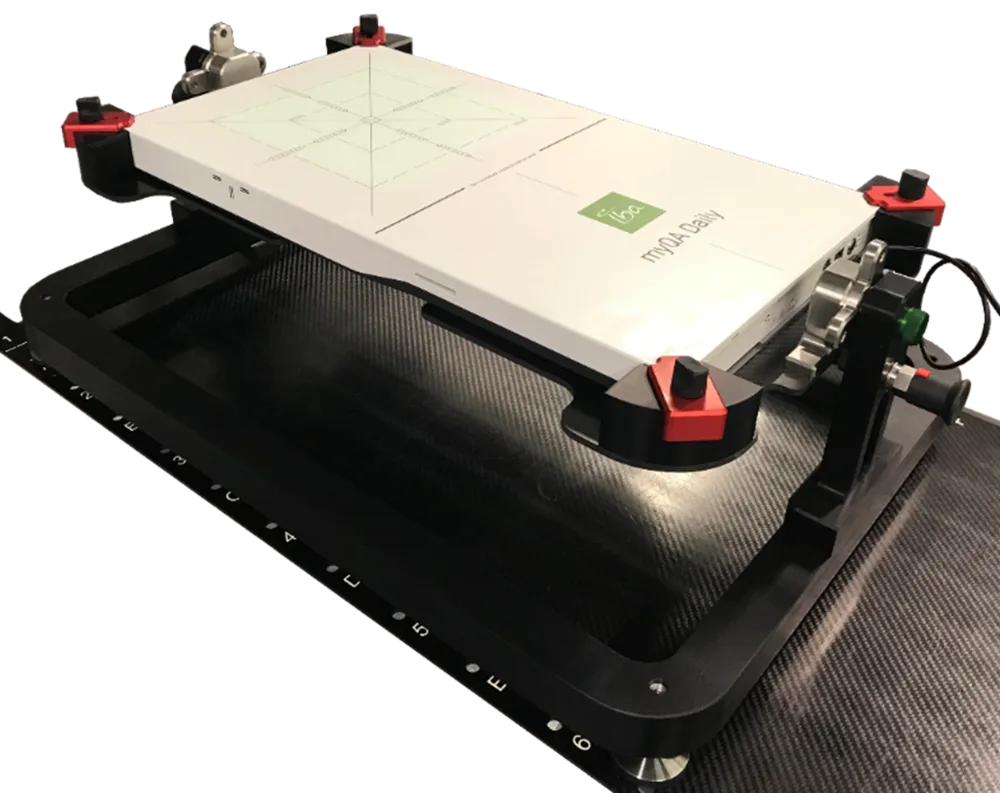

- Rotating Holder Support of Machine QA measurements with linac angles of 0°, 90°, 180°, and 270°. - Comfortable fixations hold the 2D array in its position - Fast and accurate locking mechanism for different measurement angles - Easy to use four-point leveling mechanism - Rubber feet prevent unintended movements of the holder Download the brochure for more information in the resource section below
- Used for Workflow
- Daily QA RT
- Connectivity and power

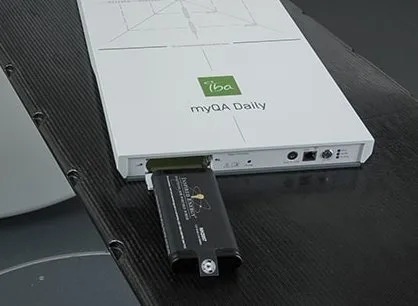

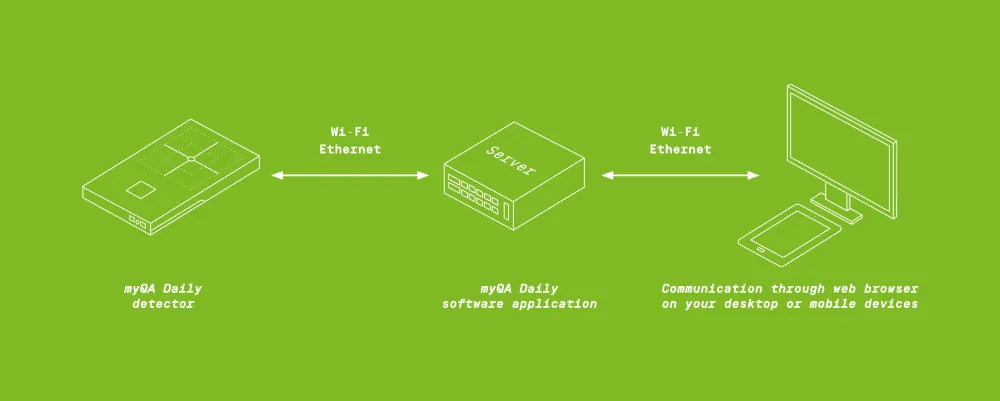

- Connectivity and power - myQA Daily detector connectivity: Ethernet or Wi-Fi connection to the server; additional LAN port - myQA Daily software connectivity: Ethernet or Wi-Fi connectivity to the server via the hospital network - Power: Battery and ext. battery charger 9V DC power supply (included) - myQA Daily software/database: Installed centrally on a server or on a PC, web browser application via network workstation or tablet PC
- User-friendly software

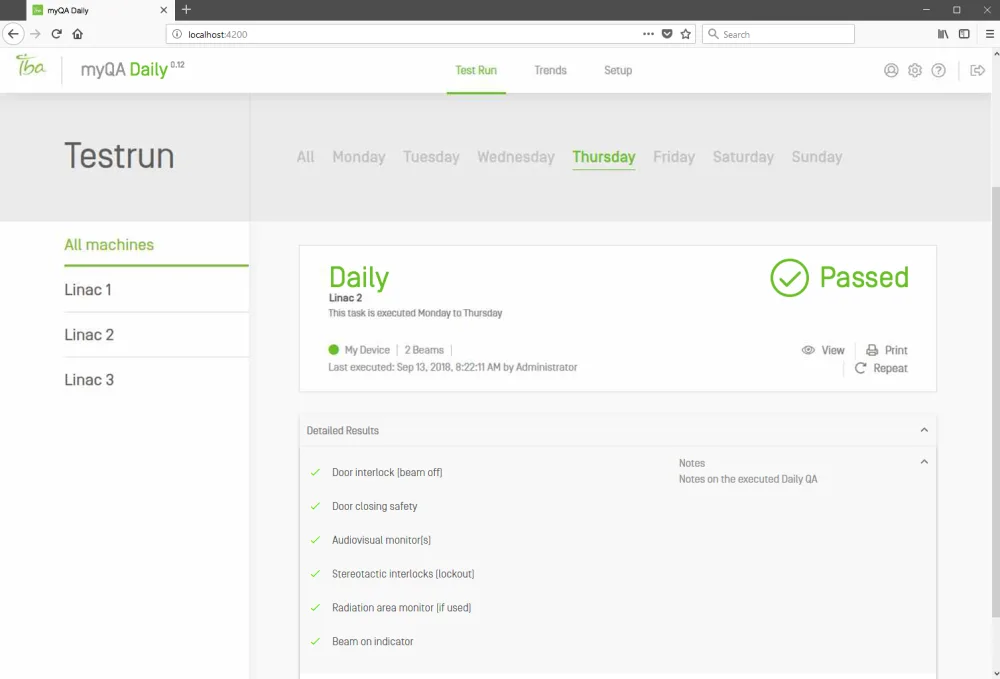

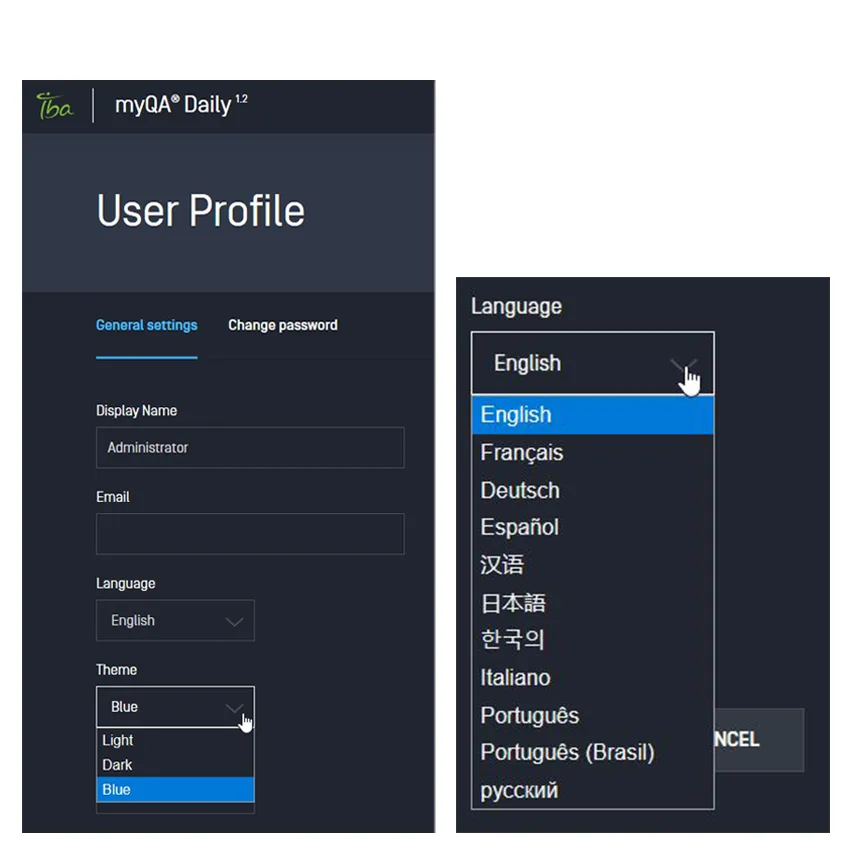

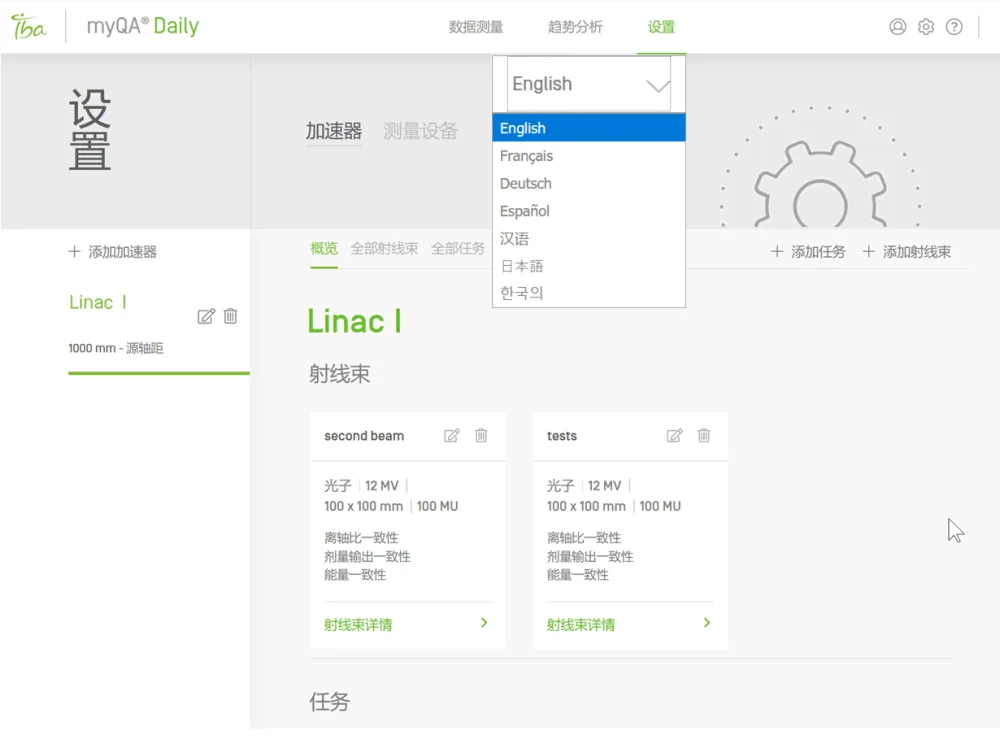

- The morning makes the day, right? The myQA Daily software is easily operated in a web browser from any workstation, laptop, or tablet PC that's connected to your hospital network. Easy daily QA test interface Simply start the application to have your daily test run automatically ready. For test execution, the menu guides you easily through just a few steps. With one click, multiple beam energies are automatically measured in a single test run. The measurements are instantly analyzed, and results are displayed in an intuitive pass/fail view. You may also include additional checklist tests in your daily QA test routine, such as “Door Interlock” or “Audiovisual Monitoring.” Multiple languages supported Select a language for your specific needs. Pre-installed languages include English, French, German, Spanish, Italian, Portuguese, Brazilian Portuguese, Russian, Chinese, Japanese, and Korean. See a list of all supported languages in the image gallery below.
- Technical specifications

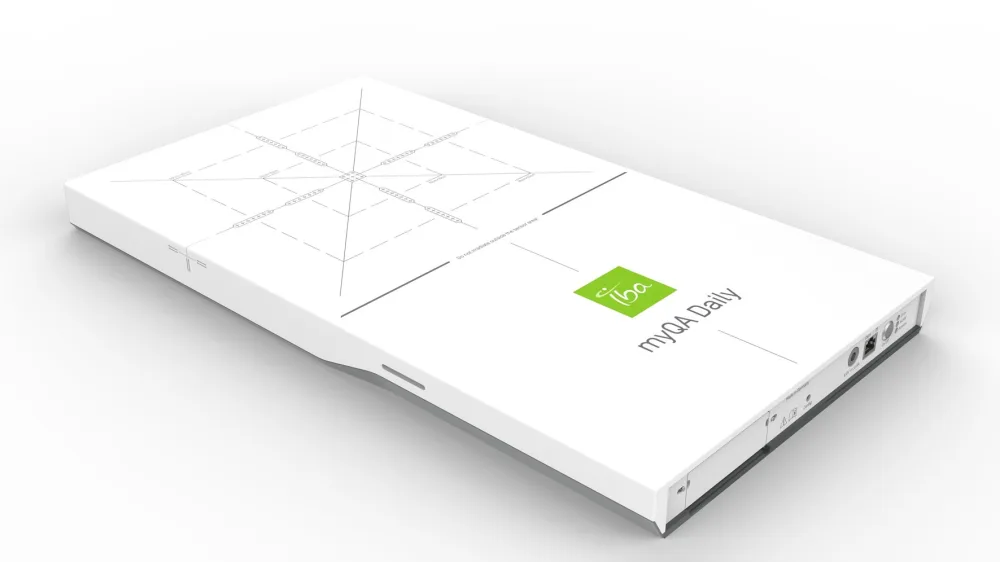

- Technical specifications - Compatible with all standard linacs incl. the Varian Halcyon^® or Ethos^TM system - Type of detectors: 125 ionization chambers, carbon electrodes - Energy verification: Built-in attenuation material - Inherent buildup: 6.0 mm ABS - Photons: Co-60 to 25 MV - Electrons: 4 MeV to 25 MeV - Dose rate: minimum 0.3 Gy/min, maximum 24 Gy/min - Dose/pulse: Max. 0.3 cGy/pulse - Field sizes: 10x10 cm² and 20x20 cm² - Outer dimensions: 560 x 60 x 320 mm^3 - For flattened and FFF beams (no build-up material required)
- The newest solution for your daily QA

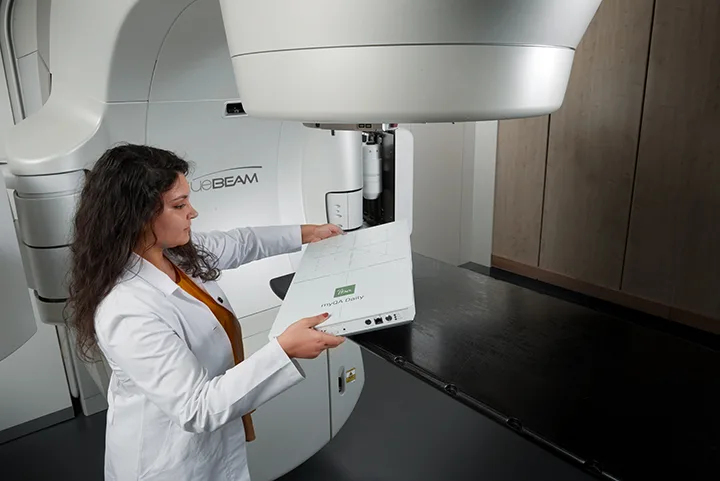

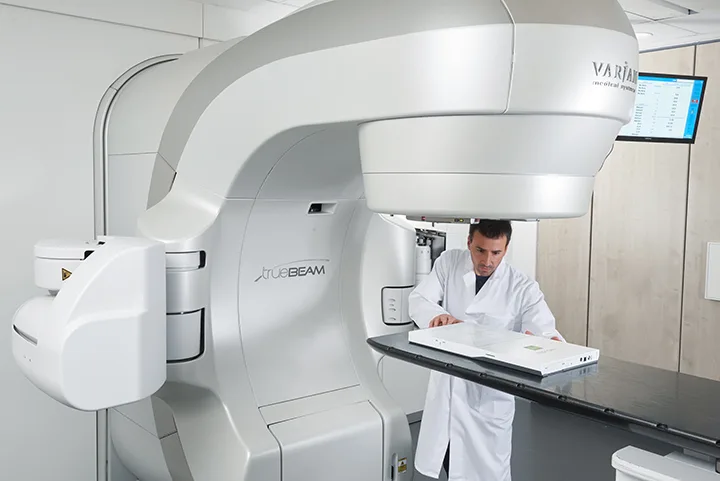

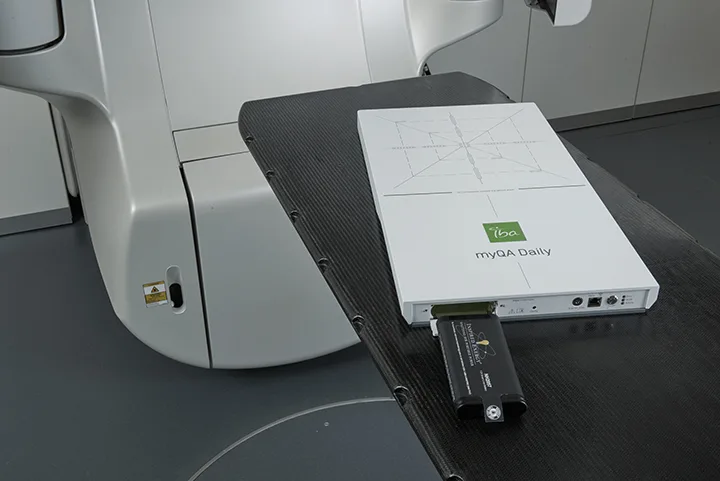

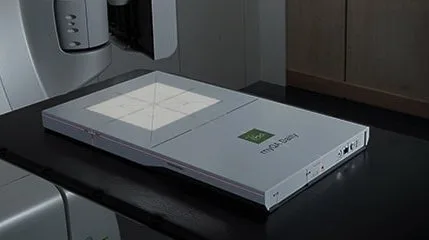

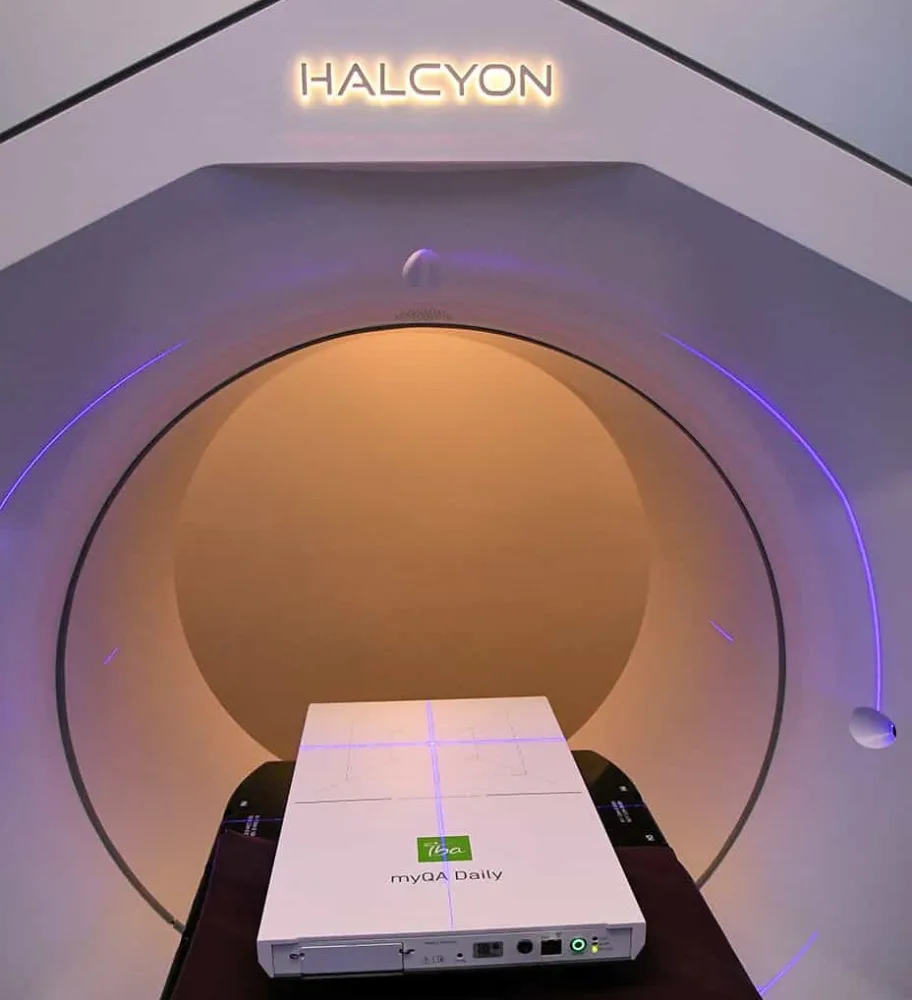

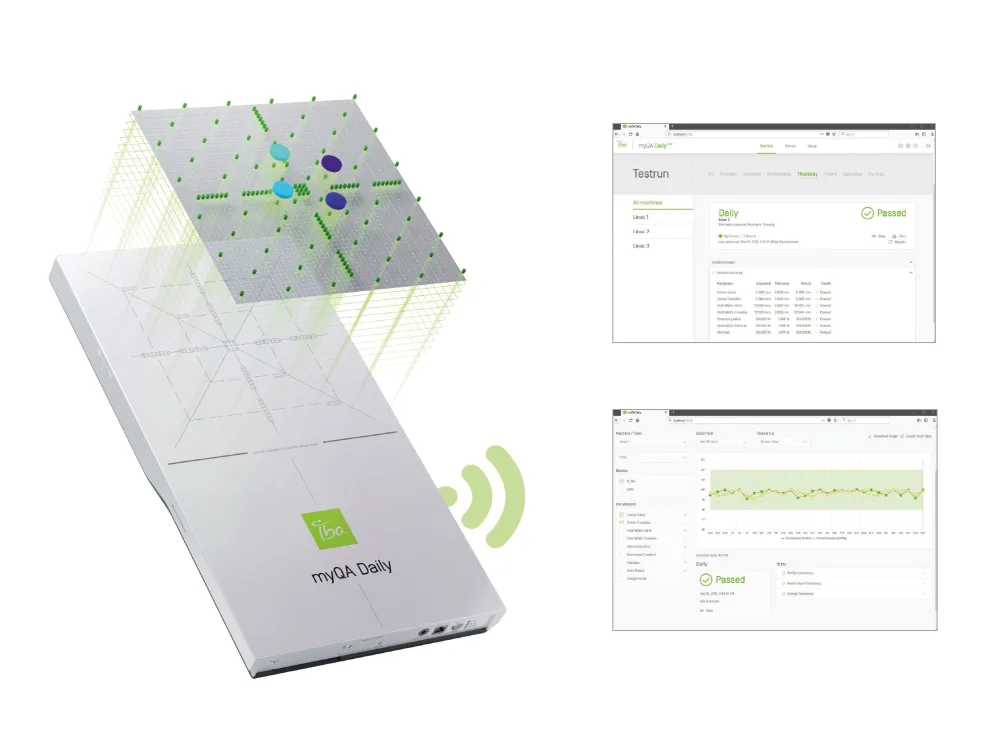

- The morning makes the day, right? Imagine starting your day using software that's as simple and fast as your weather app. Easy - Efficient – Accurate - 1 minute cable free setup - 1 test run for dose check, energy verification, and profile measurements - 1 click analysis Compatible with all standard C-arm linacs including Varian Halcyon^® and Ethos^TM. 125 ionization chambers provide the largest amount of measured beam data compared to other daily QA devices for a more accurate beam quality verification.
- Gantry Mount for easy and stable attachment

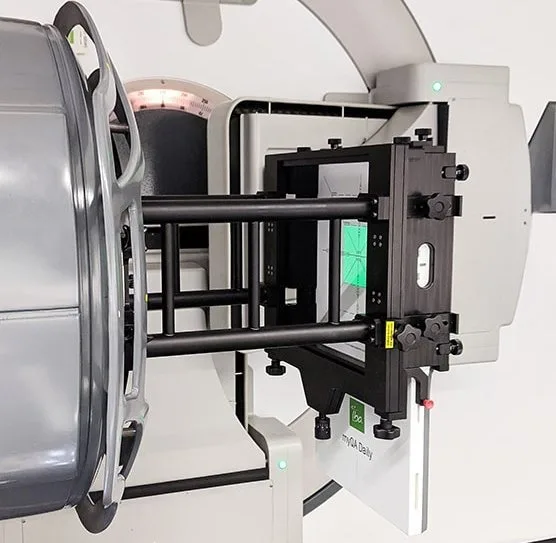

- Gantry Mount for easy and stable attachment For easy and stable attachment of your myQA Daily or MatriXX Resolution to the linac head, enabling advanced Machine QA under any linac angle. - Fast, accurate, and easy to use locking mechanism - Machine QA measurements for any gantry rotation angle - Comfortable fixations hold the 2D array precisely in its position - Compatible with Varian and Elekta linacs Download the brochure for more information in the resource section below.
- Advanced review and administrative interface

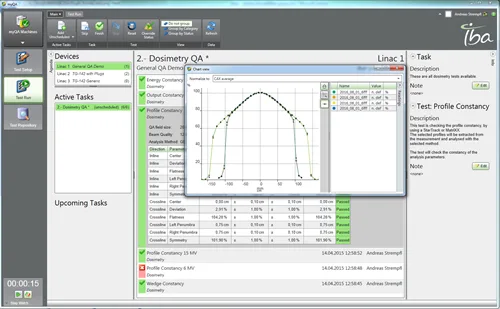

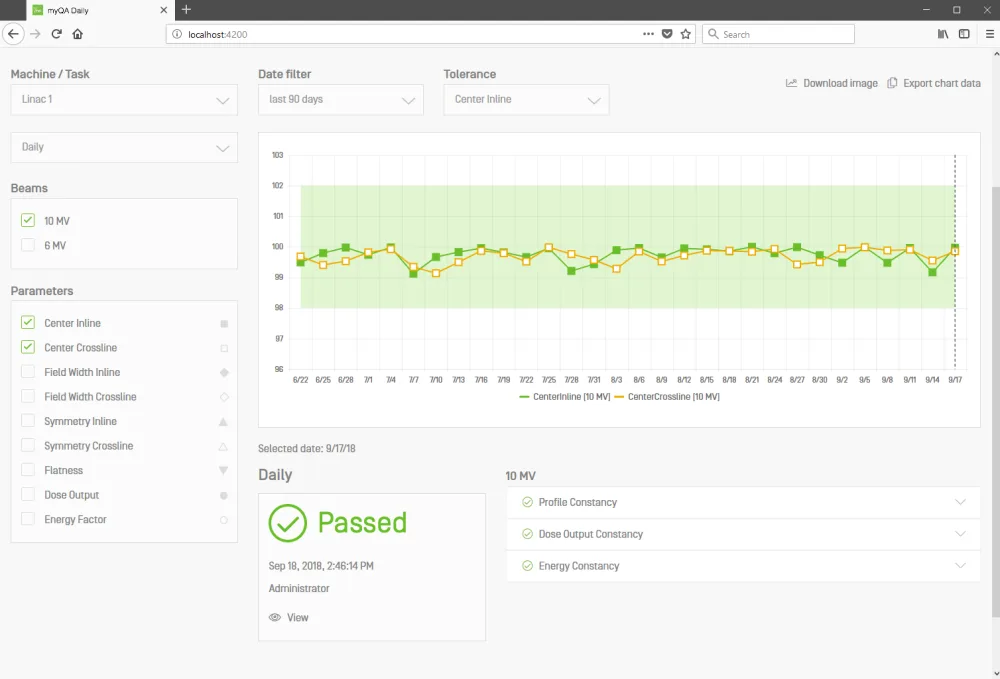

- Test data is automatically documented in the central database and is readily accessible from anywhere in the network! This enables comprehensive analysis of your daily measurements as well as trend analysis. In addition, you can easily configure hospital-specific test runs in a multi-institution environment. Administrative rights for different users are simple to set up and manage.
- Compatible with Machine/Modality/Application
- C-arm linacs, Bore-type linacs, Helical linac, IMRT / VMAT, TG142
